Flexible Pavement Design
Estimate the cumulative standard axle repetitions over the design life, read the pavement composition from the IRC 37 catalogue for the design traffic and subgrade CBR, and verify the fatigue and rutting strain limits.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.
Key formulas & points
Skim these first — then read the full notes below.
- Vertical compressive strain at subgrade limits rutting
- Horizontal tensile strain at bottom of bituminous layer limits fatigue
- Empirical-mechanistic approach in IRC 37:2018
Topic details
Introduction

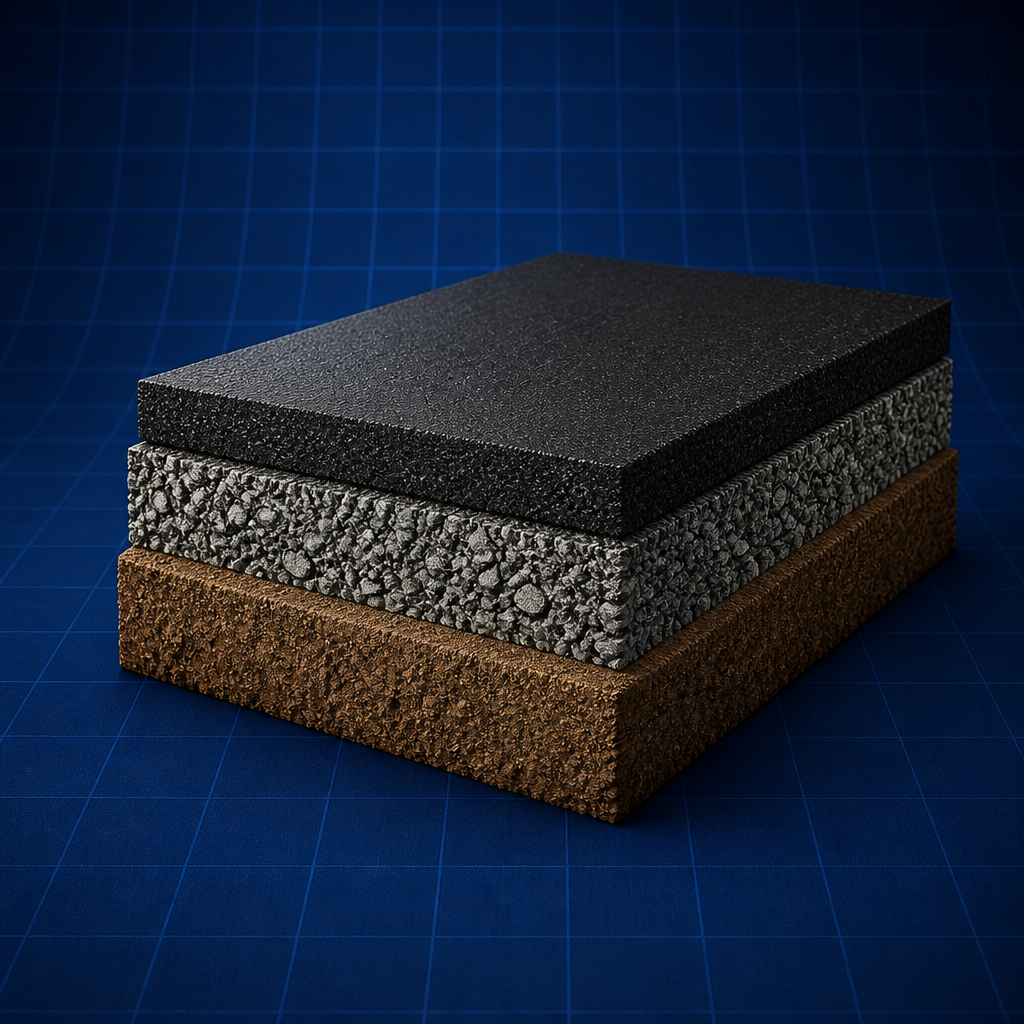

Flexible pavements distribute wheel loads through successive granular and bituminous layers to the subgrade, each layer spreading the stress so that the pressure reaching the subgrade is safely low. IRC 37 uses a mechanistic-empirical approach.
Scope in B.Tech and GATE syllabus
The design traffic is expressed as cumulative standard axles (in million standard axles, msa) accumulated over the design life, computed from the current traffic, its growth rate, the lane distribution and the vehicle-damage factor. This single number, with the subgrade CBR, indexes the pavement composition.
Why this topic matters in practice
The two controlling distress mechanisms are fatigue cracking, driven by the horizontal tensile strain at the bottom of the bituminous layer, and rutting, driven by the vertical compressive strain on top of the subgrade; both must stay below their permissible values for the design repetitions.
Key relations & formulas
Formulas (Indian textbook notation)
(equivalent single axle loads)
Formulas (Indian textbook notation)
Notation and sign conventions
Relation 1 —
Formulas (Indian textbook notation)
Write this relation with symbols exactly as in Highway Engineering — Khanna & Justo before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
(equivalent single axle loads)
Write this relation with symbols exactly as in Highway Engineering — Khanna & Justo before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
Formulas (Indian textbook notation)
Write this relation with symbols exactly as in Highway Engineering — Khanna & Justo before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Fundamentals and definitions
Traffic loading is converted to equivalent standard (80 kN) axle loads because damage rises very steeply with axle load (roughly the fourth power). The vehicle damage factor and growth-rate compounding turn a daily traffic count into the total msa over, say, a 15-year life.
Governing relations in practice
The mechanistic part models the pavement as an elastic layered system; under a wheel load it computes the tensile strain at the bottom of the asphalt (which causes fatigue cracks that propagate upward) and the compressive strain at the subgrade top (which causes permanent deformation, i.e. rutting).
Design and analysis considerations
The empirical part uses transfer functions calibrated from field performance to relate these strains to the allowable number of load repetitions before failure; the design is adequate when the allowable repetitions exceed the design traffic for both distress modes.
Advanced theory and extensions
Because repeatedly solving the layered elastic model is laborious, IRC 37 provides design catalogues (charts and tables) giving ready layer thicknesses for combinations of design traffic and subgrade CBR, which is what most exam problems use.
Assumptions and validity limits
State assumptions explicitly before using any relation for flexible pavement design — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Highway Engineering viva and GATE descriptive questions, listing valid assumptions often earns separate marks.
Step-by-step problem approach
1. Read the question and list given data with SI units (common in Highway Engineering papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to flexible pavement design.
4. Use equation 1:
5. Use equation 2:
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to flexible pavement design.
4. Use equation 1:
.
5. Use equation 2:
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.
Applications & exam relevance
Flexible Pavement Design appears in NHAI and state road projects. In Indian civil curricula this topic is tested because it connects theory to geometric design and pavements.
GATE and semester exams often combine flexible pavement design with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use flexible pavement design?" — answer with a lab, mini-project, or plant visit example if possible.
Common mistakes in exams
• Forgetting to compound the traffic growth over the full design period.
• Omitting the vehicle-damage factor when converting to standard axles.
• Checking only fatigue and not the subgrade rutting strain.
• Using an unsoaked CBR for the subgrade design input.
• Omitting the vehicle-damage factor when converting to standard axles.
• Checking only fatigue and not the subgrade rutting strain.
• Using an unsoaked CBR for the subgrade design input.
Quick revision checklist
Before attempting flexible pavement design problems, confirm you can:
1. Vertical compressive strain at subgrade limits rutting
2. Horizontal tensile strain at bottom of bituminous layer limits fatigue
3. Empirical-mechanistic approach in IRC 37:2018
2. Horizontal tensile strain at bottom of bituminous layer limits fatigue
3. Empirical-mechanistic approach in IRC 37:2018
Revise the solved examples in Highway Engineering — Khanna & Justo and one previous-year GATE or university paper for this unit.
Worked examples
Try the problem first — open the solution when you are ready to check.
Cumulative standard axles over design life
Problem
A road carries 2000 commercial vehicles per day (both directions) with a growth rate of 6% per annum, a design life of 15 years, a lane distribution factor of 0.75 and a vehicle damage factor of 2.5. Estimate the design traffic in msa.
Solution
Growth factor over 15 years = [(1 + r)ⁿ − 1]/r = [(1.06)¹⁵ − 1]/0.06 = (2.397 − 1)/0.06 = 23.28. Cumulative commercial vehicles = 365 × 2000 × 23.28 = 1.70 × 10⁷. Applying lane distribution and damage factor: N = 1.70 × 10⁷ × 0.75 × 2.5 = 3.19 × 10⁷ standard axles ≈ 31.9 msa. This msa value with the subgrade CBR selects the pavement composition from IRC 37.
Conceptual check — Flexible Pavement Design
Problem
In a Highway Engineering semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of flexible pavement design." What should a complete answer include?
Exams & GATE
Khanna & Justo — design traffic in MS A for 15–20 year life.
