Theodolite Traversing

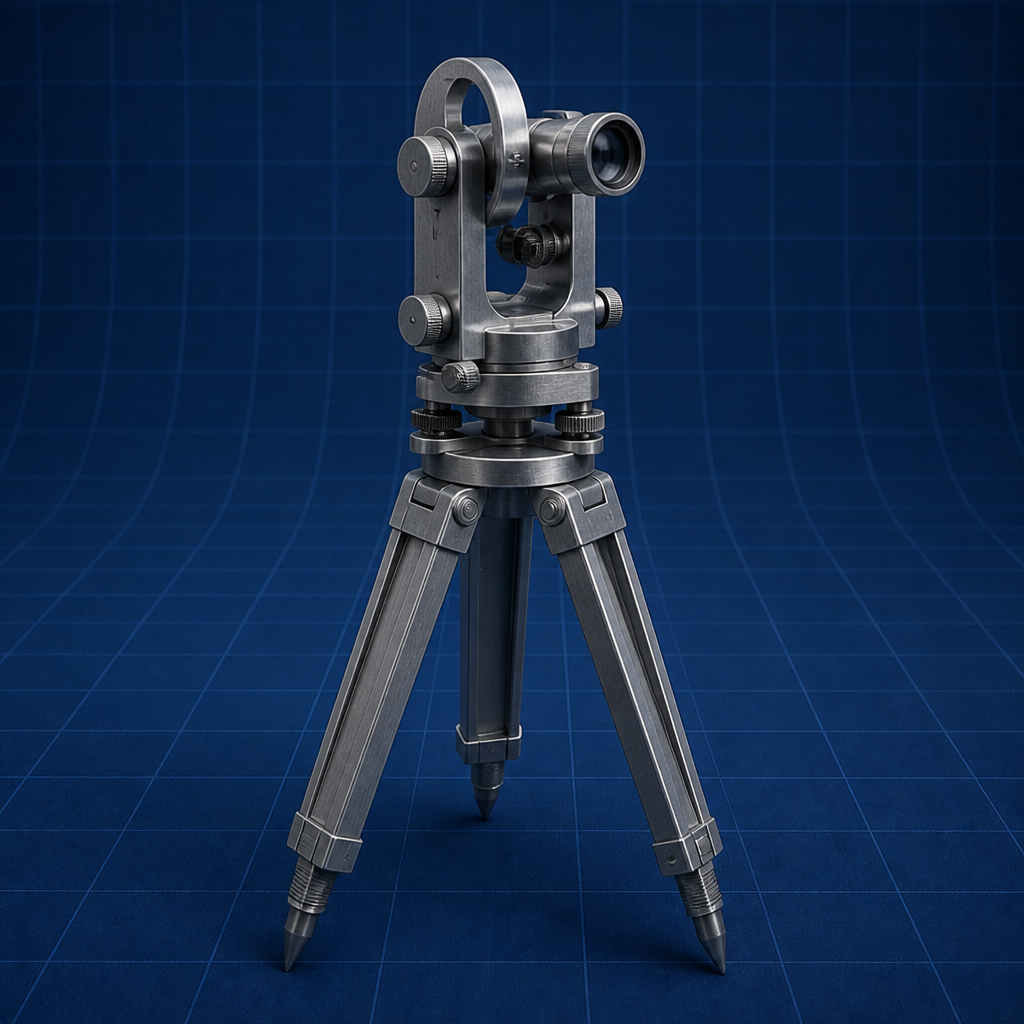

Theodolite traversing establishes horizontal control by measuring the angles between successive lines and their lengths, giving a framework of coordinated stations. The theodolite reads horizontal and vertical angles precisely.

For a closed traverse the sum of interior angles must equal (2n − 4) × 90°; the angular misclosure is checked against a permissible limit and distributed among the angles. The lengths and adjusted bearings are then resolved into latitudes (N-S components) and departures (E-W components).

The algebraic sums of latitudes and departures should each be zero for a closed traverse; any residual is the closing error, distributed by the Bowditch rule, after which the station coordinates are computed and the area found.

(θ = bearing)

Relation 1 —

(θ = bearing)

Write this relation with symbols exactly as in Surveying — BC Punmia before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 2 —

Write this relation with symbols exactly as in Surveying — BC Punmia before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 3 —

Write this relation with symbols exactly as in Surveying — BC Punmia before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Proper station setup — centring the instrument exactly over the point, levelling it, and eliminating parallax — is fundamental; errors here propagate through all readings. Measuring angles on both faces (face left and face right) and averaging eliminates several instrumental errors.

The angular check (2n − 4) × 90° for interior angles of an n-sided closed polygon detects gross angular errors; distributing the small permissible misclosure equally among the angles gives adjusted values from which the line bearings are derived.

Latitude L cos θ and departure L sin θ resolve each leg into orthogonal components; for a closed traverse both sums must vanish, so the misclosures in latitude and departure combine into the linear closing error.

The Bowditch rule corrects each leg’s latitude and departure in proportion to its length, on the assumption that errors are proportional to length; the corrected components accumulate into consistent coordinates, from which the enclosed area is computed by the coordinate (or DMD) method. For large areas, triangulation provides higher-order control.

State assumptions explicitly before using any relation for theodolite traversing — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.

Wrong assumptions invalidate the entire solution even when the formula is correct. In Surveying viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

1. Read the question and list given data with SI units (common in Surveying papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to theodolite traversing.
4. Use equation 1: .
5. Use equation 2: .
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Theodolite Traversing appears in layout, mapping, and alignment. In Indian civil curricula this topic is tested because it connects theory to measurement of land and levels.

GATE and semester exams often combine theodolite traversing with earlier units — revise prerequisites before attempting mixed problems.

Industry interview panels sometimes ask: "Where did you use theodolite traversing?" — answer with a lab, mini-project, or plant visit example if possible.

• Using the wrong angle-sum formula (interior vs exterior) for the closed traverse.
• Confusing latitude (N-S) with departure (E-W).
• Failing to observe on both faces to cancel instrumental errors.
• Distributing the linear closing error before checking angular closure.

Before attempting theodolite traversing problems, confirm you can:

1. Theodolite measures horizontal and vertical angles
2. Station setup: centring, levelling, elimination of parallax
3. Triangulation for control over large areas

Revise the solved examples in Surveying — BC Punmia and one previous-year GATE or university paper for this unit.
