Levelling

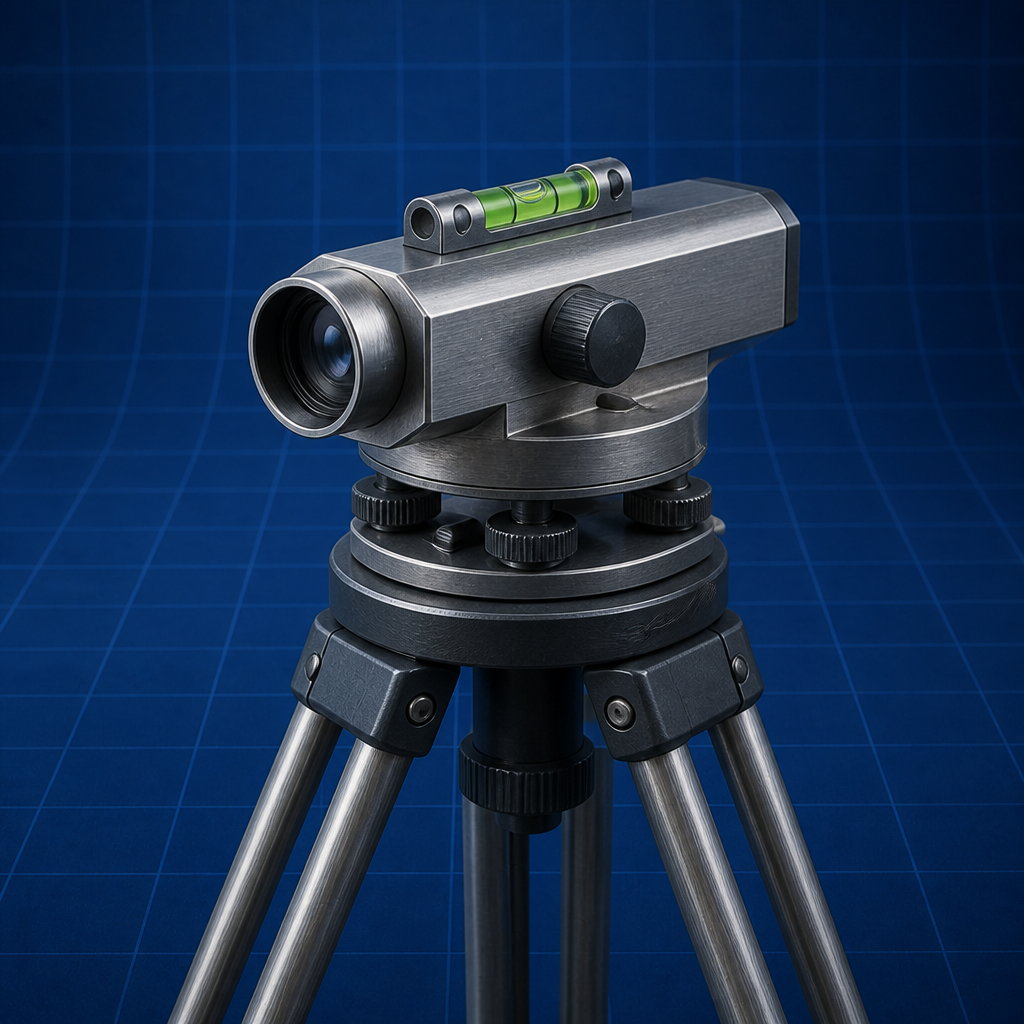

Levelling determines the elevations (reduced levels) of points relative to a datum, essential for setting out gradients, earthworks and drainage. A level and a graduated staff are used to read heights along a line of sight.

Readings are reduced by two methods: the height-of-instrument (collimation) method computes the instrument height then subtracts staff readings, and is quick for many intermediate points; the rise-and-fall method computes the difference between successive readings and provides a fuller arithmetic check.

Differential levelling carries elevation from a benchmark to the required points; over long sights or across obstacles, reciprocal levelling cancels the errors from earth curvature and atmospheric refraction, and fly levelling connects benchmarks to establish a control network.

(Height of instrument)

(S = staff shift, D = distance)

Relation 1 —

(Height of instrument)

Write this relation with symbols exactly as in Surveying — BC Punmia before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 2 —

Write this relation with symbols exactly as in Surveying — BC Punmia before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 3 —

(S = staff shift, D = distance)

Write this relation with symbols exactly as in Surveying — BC Punmia before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

In the height-of-instrument method the instrument height HI = known RL + back sight; each subsequent point’s RL = HI − its staff reading. It is efficient when many intermediate sights are taken from one setup, but its arithmetic check (only on back sights and fore sights) does not verify intermediate points.

The rise-and-fall method computes the rise or fall between consecutive points as the difference of their readings; the RLs accumulate these, and the check Σ(BS) − Σ(FS) = Σrise − Σfall = last RL − first RL verifies every reading, making it preferred where accuracy matters.

Earth curvature makes distant points appear lower and refraction bends the line of sight; their combined effect grows with the square of the sight distance, so it is negligible for short sights but significant for long ones. Balancing back-sight and fore-sight distances cancels it in ordinary levelling.

Reciprocal levelling, taking readings from both ends of a long span (e.g. across a river), eliminates the curvature-refraction and collimation errors by averaging; fly levelling with only back and fore sights quickly transfers levels between benchmarks to check and extend the vertical control.

State assumptions explicitly before using any relation for levelling — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.

Wrong assumptions invalidate the entire solution even when the formula is correct. In Surveying viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

1. Read the question and list given data with SI units (common in Surveying papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to levelling.
4. Use equation 1: .
5. Use equation 2: .
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Levelling appears in layout, mapping, and alignment. In Indian civil curricula this topic is tested because it connects theory to measurement of land and levels.

GATE and semester exams often combine levelling with earlier units — revise prerequisites before attempting mixed problems.

Industry interview panels sometimes ask: "Where did you use levelling?" — answer with a lab, mini-project, or plant visit example if possible.

• Using the height-of-instrument method’s limited check as if it verified intermediate points.
• Forgetting the curvature-and-refraction correction on long sights.
• Sign errors in the rise-and-fall computation.
• Not balancing back-sight and fore-sight distances, leaving collimation error.

Before attempting levelling problems, confirm you can:

1. Differential levelling for benchmarks
2. Reciprocal levelling eliminates curvature and refraction over long sights
3. Fly levelling connects BM networks

Revise the solved examples in Surveying — BC Punmia and one previous-year GATE or university paper for this unit.
