Suspension and Steering

Suspension isolates the body from road inputs via springs (rate k = F/δ) and dampers; steering geometry (Ackermann, camber, caster) governs directional control, per automobile-engineering texts.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • Independent vs solid axle suspension

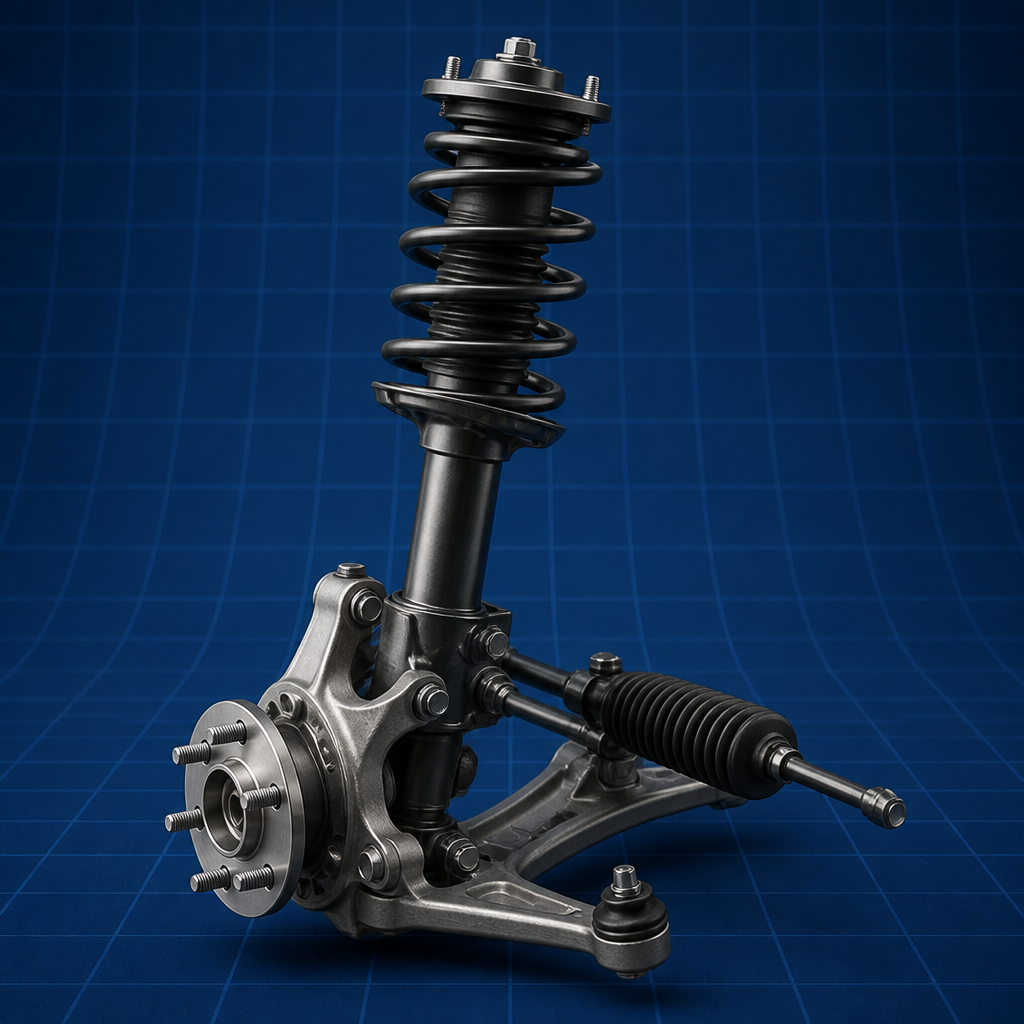

  • McPherson strut common in front FF cars
  • Power steering: hydraulic or electric assist reduces effort

Topic details

Introduction

Suspension and steering determine ride comfort, handling, and tyre wear. Automobile texts cover spring/damper systems, suspension types, and steering geometry.

Scope in B.Tech and GATE syllabus

Suspension springs (leaf, coil, torsion, air) set the ride rate; dampers control oscillation. Independent versus rigid-axle suspensions trade handling against cost/robustness. The natural frequency of the sprung mass governs ride comfort.

Why this topic matters in practice

Steering geometry — the Ackermann condition for turning, plus camber, caster, king-pin inclination, and toe — ensures the wheels track correctly and the steering self-centres. Computing spring rate/ride frequency and understanding steering angles are the exam skills.

Key relations & formulas

Springratek=FδSpring rate k = \frac{F}{\delta}
(N/mm)
Naturalfrequencyfn=(12π)kmsNatural frequency f_{n} = (\frac{1}{2\pi})\sqrt{\frac{k}{m_{s}}}
(sprung mass m_s)

Formulas (Indian textbook notation)

  • CamberangleaffectstyrecontactpatchandwearCamber angle affects tyre contact patch and wear

Formulas (Indian textbook notation)

  • Ackermann:cot(δinner)−cot(δouter)=twheelbaseAckermann: cot(\delta_{inner}) - cot(\delta_{outer}) = \frac{t}{wheelbase}

Notation and sign conventions

Relation 1 —
Springratek=FδSpring rate k = \frac{F}{\delta}
Springratek=FδSpring rate k = \frac{F}{\delta}
(N/mm)
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Naturalfrequencyfn=Natural frequency f_{n} =
Naturalfrequencyfn=(12π)kmsNatural frequency f_{n} = (\frac{1}{2\pi})\sqrt{\frac{k}{m_{s}}}
(sprung mass m_s)
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
CamberangleaffectstyrecontactpatchandwearCamber angle affects tyre contact patch and wear

Formulas (Indian textbook notation)

  • CamberangleaffectstyrecontactpatchandwearCamber angle affects tyre contact patch and wear
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
Ackermann:cotAckermann: cot

Formulas (Indian textbook notation)

  • Ackermann:cot(δinner)−cot(δouter)=twheelbaseAckermann: cot(\delta_{inner}) - cot(\delta_{outer}) = \frac{t}{wheelbase}
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

Suspension springs provide a rate k = F/δ; combined with the sprung mass they set the ride natural frequency f = (1/2π)√(k/m), tuned low (~1 Hz) for comfort. Dampers dissipate energy to control oscillation (damping ratio) and keep tyres on the road.

Governing relations in practice

Independent suspension (each wheel moves separately) improves handling and ride over rigid axles but is more complex. Anti-roll bars resist body roll in cornering by linking the two sides.

Design and analysis considerations

Steering geometry aligns the wheels for the turn: the Ackermann condition steers the inner wheel more than the outer so both roll without scrub about a common centre. Camber (wheel tilt), caster (steering-axis rake for self-centring), king-pin inclination, and toe affect stability, wear, and steering feel.

Advanced theory and extensions

Wheel alignment balances these angles to minimise tyre wear and give predictable handling and straight-line stability. Ride tuning (spring/damper) and steering geometry are the two applied design areas examiners test.

Assumptions and validity limits

State assumptions explicitly before using any relation for suspension and steering — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Automobile Engineering viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Automobile Engineering papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to suspension and steering.
4. Use equation 1:
Springratek=FδSpring rate k = \frac{F}{\delta}
.
5. Use equation 2:
Naturalfrequencyfn=Natural frequency f_{n} =
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Suspension and Steering appears in OEM design and service engineering. In Indian mechanical curricula this topic is tested because it connects theory to vehicle systems and performance.
GATE and semester exams often combine suspension and steering with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use suspension and steering?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Confusing the roles of springs (support/rate) and dampers (oscillation control)
• Ignoring the Ackermann condition (inner wheel turns more than outer)
• Mixing up camber, caster, and toe effects
• Using total vehicle mass instead of sprung mass for ride frequency

Quick revision checklist

Before attempting suspension and steering problems, confirm you can:
1. Independent vs solid axle suspension
2. McPherson strut common in front FF cars
3. Power steering: hydraulic or electric assist reduces effort
Revise the solved examples in Automobile Engineering — Kirpal Singh and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Suspension ride frequency

Problem

A corner of a car has sprung mass 300 kg on a spring of rate k = 30 N/mm. Find the ride natural frequency.

Solution

k = 30000 N/m; f = (1/2π)√(k/m) = (1/6.283)√(30000/300) = (1/6.283)√100 = 10/6.283 = 1.59 Hz.

Conceptual check — Suspension and Steering

Problem

In a Automobile Engineering semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of suspension and steering." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Suspension and Steering, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    Suspension isolates the body from road inputs via springs (rate k = F/δ) and dampers; steering geometry (Ackermann, camber, caster) governs directional control, per automobile-engineering texts.
  2. 2
    State the relation Spring rate k = F/δ and name each symbol.

    Model answer

    The governing relation is Springratek=FδSpring rate k = \frac{F}{\delta}. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation Natural frequency f_n = and name each symbol.

    Model answer

    The governing relation is Naturalfrequencyfn=Natural frequency f_{n} =. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation Camber angle affects tyre contact patch and wear and name each symbol.

    Model answer

    The governing relation is CamberangleaffectstyrecontactpatchandwearCamber angle affects tyre contact patch and wear. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation Ackermann: cot and name each symbol.

    Model answer

    The governing relation is Ackermann:cotAckermann: cot. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Independent vs solid axle suspension

    Model answer

    Independent vs solid axle suspension — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: McPherson strut common in front FF cars

    Model answer

    McPherson strut common in front FF cars — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Power steering: hydraulic or electric assist reduces effort

    Model answer

    Power steering: hydraulic or electric assist reduces effort — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Confusing the roles of springs (support/rate) and dampers (oscillation control)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Ignoring the Ackermann condition (inner wheel turns more than outer)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Mixing up camber, caster, and toe effects?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Using total vehicle mass instead of sprung mass for ride frequency?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    Kirpal Singh Ch. 14–15 — understeer vs oversteer from slip angles.
  • 2
    Avoid: Confusing the roles of springs (support/rate) and dampers (oscillation control)
  • 3
    Avoid: Ignoring the Ackermann condition (inner wheel turns more than outer)
  • 4
    Avoid: Mixing up camber, caster, and toe effects

📖 Standard books (India)

  • Automobile Engineering — Kirpal Singh

    Read: Syllabus unit
