Braking Systems

Braking force per wheel is F_b = μ·N_wheel; total deceleration a = μg on a level road at the friction limit. Weight transfer loads the front, so front brakes do more work, per automobile-engineering texts.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • Front brakes carry more load under braking (weight transfer)
  • ABS prevents wheel lock — maintains steerability
  • Disc vs drum: disc better heat dissipation

Topic details

Introduction

Braking systems convert kinetic energy to heat to decelerate the vehicle safely. Automobile texts cover drum and disc brakes, hydraulic actuation, brake proportioning, and ABS.

Scope in B.Tech and GATE syllabus

The maximum deceleration is set by tyre-road friction: a = μg. During braking, weight transfers forward, increasing front-axle load and braking capacity, so front brakes are larger and proportioning valves bias front bias to prevent rear lock-up.

Why this topic matters in practice

Anti-lock braking (ABS) modulates pressure to keep wheels near peak slip, maximising friction and retaining steering. Computing stopping distance and braking force, and understanding weight transfer and proportioning, are the exam tasks.

Key relations & formulas

BrakingforceFb=μ⋅NwheelBraking force F_{b} = \mu\cdot N_{wheel}
(per wheel)
Decelerationa=FtotalmDeceleration a = \frac{F_{total}}{m}
(all wheels contributing)
BrakepowerP=Fb⋅VBrake power P = F_{b}\cdot V
(kinetic energy dissipation)
Stoppingdistances=V2(2a)Stopping distance s = \frac{V^{2}}{(2a)}
(constant deceleration)

Notation and sign conventions

Relation 1 —
BrakingforceFb=μ⋅NwheelBraking force F_{b} = \mu\cdot N_{wheel}
BrakingforceFb=μ⋅NwheelBraking force F_{b} = \mu\cdot N_{wheel}
(per wheel)
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Decelerationa=FtotalmDeceleration a = \frac{F_{total}}{m}
Decelerationa=FtotalmDeceleration a = \frac{F_{total}}{m}
(all wheels contributing)
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
BrakepowerP=Fb⋅VBrake power P = F_{b}\cdot V
BrakepowerP=Fb⋅VBrake power P = F_{b}\cdot V
(kinetic energy dissipation)
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
Stoppingdistances=V2/Stopping distance s = V^{2}/
Stoppingdistances=V2(2a)Stopping distance s = \frac{V^{2}}{(2a)}
(constant deceleration)
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

Braking force at a wheel is limited by friction: F_b = μ·N_wheel. Summed over the axles at the limit, the deceleration is a = μg on level ground, independent of mass in the ideal case.

Governing relations in practice

Stopping distance from speed v is s = v²/(2a) = v²/(2μg); it grows with the square of speed, which is why high speed dramatically increases stopping distance — a key safety point.

Design and analysis considerations

Weight transfer during braking loads the front axle and unloads the rear (ΔW = m·a·h/L), so the front wheels can brake harder before locking. Brake proportioning gives the front more braking effort; over-braking the rear causes instability (rear lock-up and spin).

Advanced theory and extensions

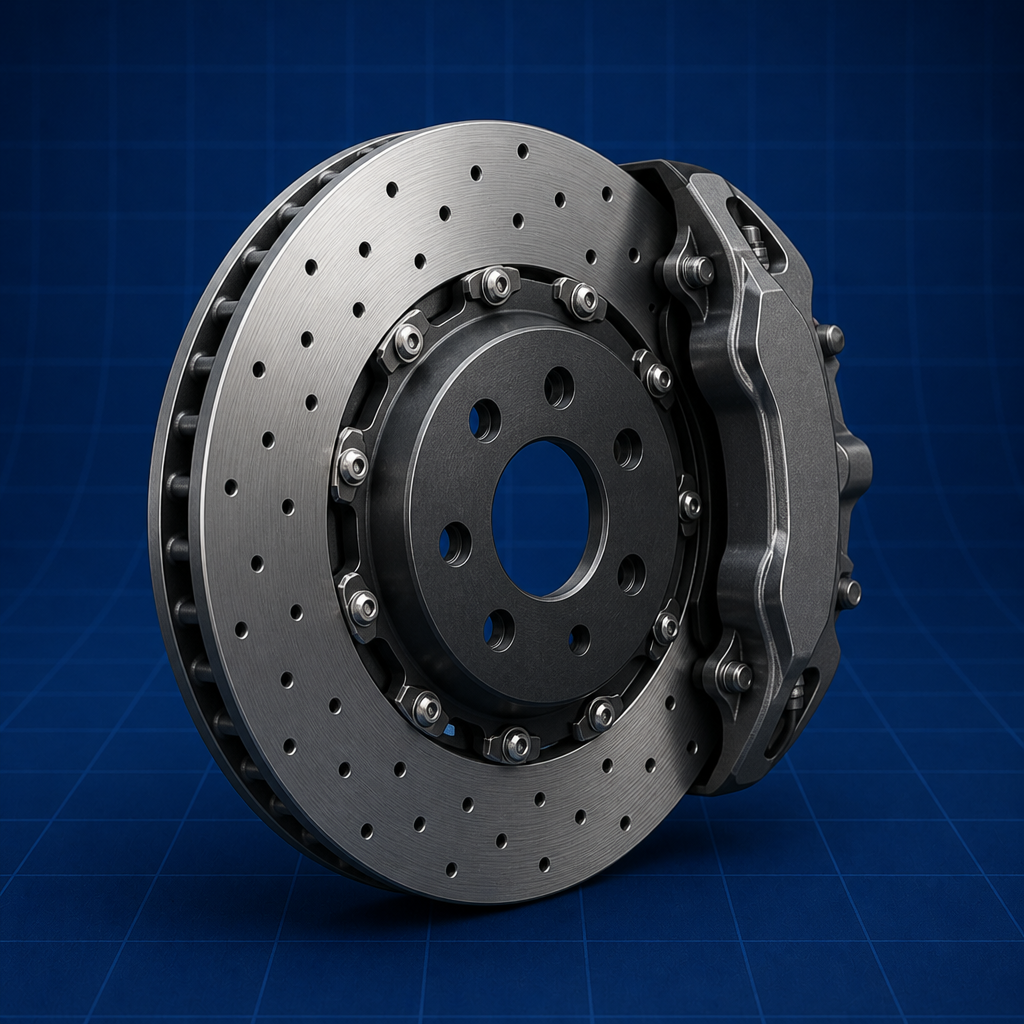

Disc brakes dissipate heat better than drums (less fade); hydraulic systems transmit pedal force with mechanical advantage. ABS senses impending wheel lock and cycles pressure to hold wheels at peak slip, maximising deceleration while preserving steering control. These principles govern brake design and performance.

Assumptions and validity limits

State assumptions explicitly before using any relation for braking systems — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Automobile Engineering viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Automobile Engineering papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to braking systems.
4. Use equation 1:
BrakingforceFb=μ⋅NwheelBraking force F_{b} = \mu\cdot N_{wheel}
.
5. Use equation 2:
Decelerationa=FtotalmDeceleration a = \frac{F_{total}}{m}
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Braking Systems appears in OEM design and service engineering. In Indian mechanical curricula this topic is tested because it connects theory to vehicle systems and performance.
GATE and semester exams often combine braking systems with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use braking systems?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Ignoring weight transfer, so front/rear brake bias is misjudged
• Forgetting stopping distance scales with v² (not linearly)
• Assuming both axles can brake equally at the limit despite load transfer
• Confusing brake fade (thermal) with wheel lock-up (friction limit)

Quick revision checklist

Before attempting braking systems problems, confirm you can:
1. Front brakes carry more load under braking (weight transfer)
2. ABS prevents wheel lock — maintains steerability
3. Disc vs drum: disc better heat dissipation
Revise the solved examples in Automobile Engineering — Kirpal Singh and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Braking distance

Problem

A car travelling at 20 m/s brakes at the friction limit with μ = 0.8 on level road. Find the stopping distance.

Solution

a = μg = 0.8 × 9.81 = 7.85 m/s²; s = v²/(2a) = 20²/(2 × 7.85) = 400/15.7 = 25.5 m.

Conceptual check — Braking Systems

Problem

In a Automobile Engineering semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of braking systems." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Braking Systems, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    Braking force per wheel is F_b = μ·N_wheel; total deceleration a = μg on a level road at the friction limit. Weight transfer loads the front, so front brakes do more work, per automobile-engineering texts.
  2. 2
    State the relation Braking force F_b = μ·N_wheel and name each symbol.

    Model answer

    The governing relation is BrakingforceFb=μ⋅NwheelBraking force F_{b} = \mu\cdot N_{wheel}. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation Deceleration a = F_total/m and name each symbol.

    Model answer

    The governing relation is Decelerationa=FtotalmDeceleration a = \frac{F_{total}}{m}. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation Brake power P = F_b·V and name each symbol.

    Model answer

    The governing relation is BrakepowerP=Fb⋅VBrake power P = F_{b}\cdot V. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation Stopping distance s = V²/ and name each symbol.

    Model answer

    The governing relation is Stoppingdistances=V2/Stopping distance s = V^{2}/. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Front brakes carry more load under braking (weight transfer)

    Model answer

    Front brakes carry more load under braking (weight transfer) — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: ABS prevents wheel lock — maintains steerability

    Model answer

    ABS prevents wheel lock — maintains steerability — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Disc vs drum: disc better heat dissipation

    Model answer

    Disc vs drum: disc better heat dissipation — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Ignoring weight transfer, so front/rear brake bias is misjudged?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Forgetting stopping distance scales with v² (not linearly)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Assuming both axles can brake equally at the limit despite load transfer?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Confusing brake fade (thermal) with wheel lock-up (friction limit)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    Kirpal Singh Ch. 16 — ideal braking force distribution avoids lock-up.
  • 2
    Avoid: Ignoring weight transfer, so front/rear brake bias is misjudged
  • 3
    Avoid: Forgetting stopping distance scales with v² (not linearly)
  • 4
    Avoid: Assuming both axles can brake equally at the limit despite load transfer
