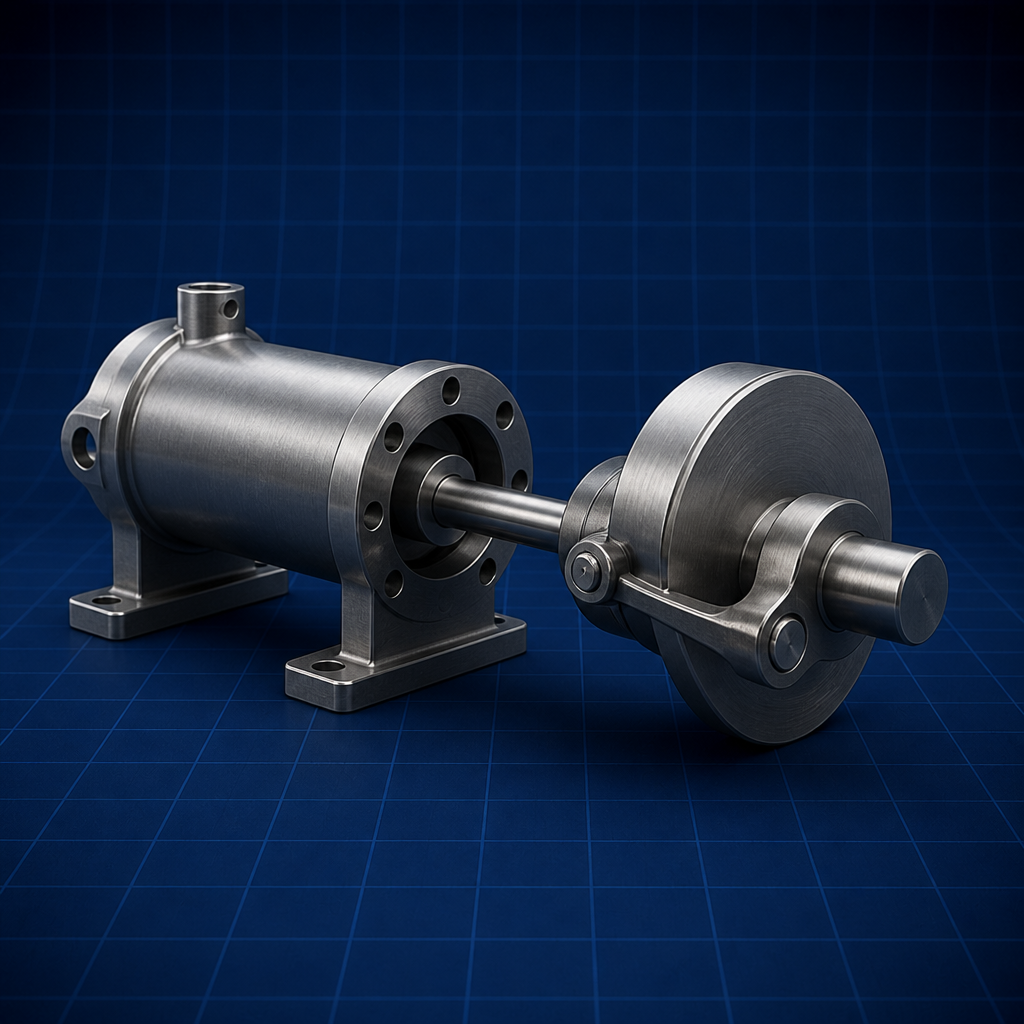

Reciprocating Pump

A reciprocating pump displaces Q = ALN (single-acting) or 2ALN (double-acting); slip = (Q_theoretical − Q_actual)/Q_theoretical. An air vessel smooths flow and reduces acceleration head, per Modi & Seth.
Exam tip: keep density/pressure in SI (Pa, kg/m³); convert head carefully before Bernoulli or Darcy–Weisbach.

Key formulas & points

Skim these first — then read the full notes below.

  • Air vessel smooths flow pulsation
  • Slip=(Qtheoretical−Qactual)QtheoreticalSlip = \frac{(Q_{theoretical} - Q_{actual})}{Q_{theoretical}}
  • High pressure, low flow — positive displacement advantage

Topic details

Introduction

Reciprocating pumps are positive-displacement machines for high-head, low-flow duties, examined for discharge, slip, work, and acceleration-head effects. Modi & Seth derive the theoretical discharge and the pressure variations in the suction and delivery pipes.

Scope in B.Tech and GATE syllabus

Because the piston accelerates and decelerates each stroke, the fluid in the pipes experiences acceleration head, which peaks at the stroke ends and can cause separation in the suction line. Air vessels near the cylinder store and release fluid to smooth this out.

Why this topic matters in practice

Slip (sometimes negative when the air vessel or valve timing helps) measures leakage past valves and the piston. The indicator diagram shows the work done per stroke. Distinguishing single- vs double-acting and accounting for acceleration head are the key exam points.

Key relations & formulas

Q=A⋅L⋅NQ = A\cdot L\cdot N
(single acting, A = piston area, L = stroke)
Q=2A⋅L⋅NQ = 2A\cdot L\cdot N
(double acting, one side at a time)
Hfriction=f(LD)(V22g)H_{friction} = f(\frac{L}{D})(\frac{V^{2}}{2g})
(acceleration head in suction pipe)

Formulas (Indian textbook notation)

  • P=ρgQH(ηpump×ηmotor)P = \frac{\rho gQH}{(\eta_{pump} \times \eta_{motor})}

Notation and sign conventions

Relation 1 —
Q=A⋅L⋅NQ = A\cdot L\cdot N
Q=A⋅L⋅NQ = A\cdot L\cdot N
(single acting, A = piston area, L = stroke)
Write this relation with symbols exactly as in Fluid Mechanics & Hydraulic Machines — Modi & Seth before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Q=2A⋅L⋅NQ = 2A\cdot L\cdot N
Q=2A⋅L⋅NQ = 2A\cdot L\cdot N
(double acting, one side at a time)
Write this relation with symbols exactly as in Fluid Mechanics & Hydraulic Machines — Modi & Seth before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
Hfriction=fH_{friction} = f
Hfriction=f(LD)(V22g)H_{friction} = f(\frac{L}{D})(\frac{V^{2}}{2g})
(acceleration head in suction pipe)
Write this relation with symbols exactly as in Fluid Mechanics & Hydraulic Machines — Modi & Seth before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
P=ρgQH/P = \rho gQH/

Formulas (Indian textbook notation)

  • P=ρgQH(ηpump×ηmotor)P = \frac{\rho gQH}{(\eta_{pump} \times \eta_{motor})}
Write this relation with symbols exactly as in Fluid Mechanics & Hydraulic Machines — Modi & Seth before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

Theoretical discharge is the swept volume times speed: Q = ALN for single-acting, Q = 2ALN for double-acting (both sides pump), with A piston area, L stroke, N strokes per unit time.

Governing relations in practice

Actual discharge is less due to leakage; slip = (Q_th − Q_act)/Q_th. Negative slip can occur when a long delivery pipe or good air vessel causes the delivery valve to open before the end of the suction stroke.

Design and analysis considerations

The reciprocating motion imposes acceleration head h_a = (L_pipe/g)(A/a)ω²r cos θ in the pipes, peaking at the ends of the stroke. In the suction pipe this can drop pressure below vapour pressure, causing separation — the design constraint.

Advanced theory and extensions

An air vessel fitted close to the cylinder supplies/absorbs the fluctuating flow so the pipe beyond it carries nearly steady flow, drastically reducing acceleration head and friction work. Work per stroke and power P = ρgQH follow once discharge and heads are known.

Assumptions and validity limits

State assumptions explicitly before using any relation for reciprocating pump — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Fluid Machinery viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Fluid Machinery papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to reciprocating pump.
4. Use equation 1:
Q=A⋅L⋅NQ = A\cdot L\cdot N
.
5. Use equation 2:
Q=2A⋅L⋅NQ = 2A\cdot L\cdot N
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Reciprocating Pump appears in hydropower, water supply, and process plants. In Indian mechanical curricula this topic is tested because it connects theory to turbines, pumps, and fluid power devices.
GATE and semester exams often combine reciprocating pump with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use reciprocating pump?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Using single-acting discharge Q = ALN for a double-acting pump
• Ignoring acceleration head and the risk of separation in the suction pipe
• Confusing slip with volumetric efficiency (they are complementary)
• Forgetting that an air vessel reduces, not eliminates, friction and acceleration effects

Quick revision checklist

Before attempting reciprocating pump problems, confirm you can:
1. Air vessel smooths flow pulsation
2.
Slip=(Qtheoretical−Qactual)QtheoreticalSlip = \frac{(Q_{theoretical} - Q_{actual})}{Q_{theoretical}}

3. High pressure, low flow — positive displacement advantage
Revise the solved examples in Fluid Mechanics & Hydraulic Machines — Modi & Seth and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Discharge of a single-acting pump

Problem

A single-acting reciprocating pump has piston area A = 0.02 m², stroke L = 0.3 m, running at N = 60 strokes/min. Find the theoretical discharge.

Solution

Q = ALN = 0.02 × 0.3 × (60/60) = 0.02 × 0.3 × 1 = 0.006 m³/s = 6 L/s.

Conceptual check — Reciprocating Pump

Problem

In a Fluid Machinery semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of reciprocating pump." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Reciprocating Pump, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    A reciprocating pump displaces Q = ALN (single-acting) or 2ALN (double-acting); slip = (Q_theoretical − Q_actual)/Q_theoretical. An air vessel smooths flow and reduces acceleration head, per Modi & Seth.
  2. 2
    State the relation Q = A·L·N and name each symbol.

    Model answer

    The governing relation is Q=A⋅L⋅NQ = A\cdot L\cdot N. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation Q = 2A·L·N and name each symbol.

    Model answer

    The governing relation is Q=2A⋅L⋅NQ = 2A\cdot L\cdot N. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation H_friction = f and name each symbol.

    Model answer

    The governing relation is Hfriction=fH_{friction} = f. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation P = ρgQH/ and name each symbol.

    Model answer

    The governing relation is P=ρgQH/P = \rho gQH/. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Air vessel smooths flow pulsation

    Model answer

    Air vessel smooths flow pulsation — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Slip = (Q_theoretical − Q_actual)/Q_theoretical

    Model answer

    Slip=(Qtheoretical−Qactual)QtheoreticalSlip = \frac{(Q_{theoretical} - Q_{actual})}{Q_{theoretical}} — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: High pressure, low flow — positive displacement advantage

    Model answer

    High pressure, low flow — positive displacement advantage — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Using single-acting discharge Q = ALN for a double-acting pump?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Ignoring acceleration head and the risk of separation in the suction pipe?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Confusing slip with volumetric efficiency (they are complementary)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Forgetting that an air vessel reduces, not eliminates, friction and acceleration effects?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    Separation in suction line if acceleration head too large.
  • 2
    Avoid: Using single-acting discharge Q = ALN for a double-acting pump
  • 3
    Avoid: Ignoring acceleration head and the risk of separation in the suction pipe
  • 4
    Avoid: Confusing slip with volumetric efficiency (they are complementary)

📖 Standard books (India)

  • Fluid Mechanics & Hydraulic Machines — Modi & Seth

    Read: Syllabus unit

    Fluid statics, dynamics, pipes, and turbomachinery
