Centrifugal Pump

A centrifugal pump adds head via Euler's relation H_m = (V_w2·u₂ − V_w1·u₁)/g; overall efficiency η = ρgQH_m/P_shaft. Cavitation is avoided by keeping NPSH_available above NPSH_required, per Modi & Seth.

Key formulas & points

Skim these first — then read the full notes below.

  • Cavitation when local P < vapour pressure
  • Priming required — pump cannot self-prime if suction above liquid
  • Characteristic curves: H vs Q, η vs Q, P vs Q

Topic details

Introduction

Centrifugal pumps are the most common turbomachine and a standard exam topic. Modi & Seth analyse them with inlet/outlet velocity triangles, manometric head and efficiency, and the cavitation criterion.

Scope in B.Tech and GATE syllabus

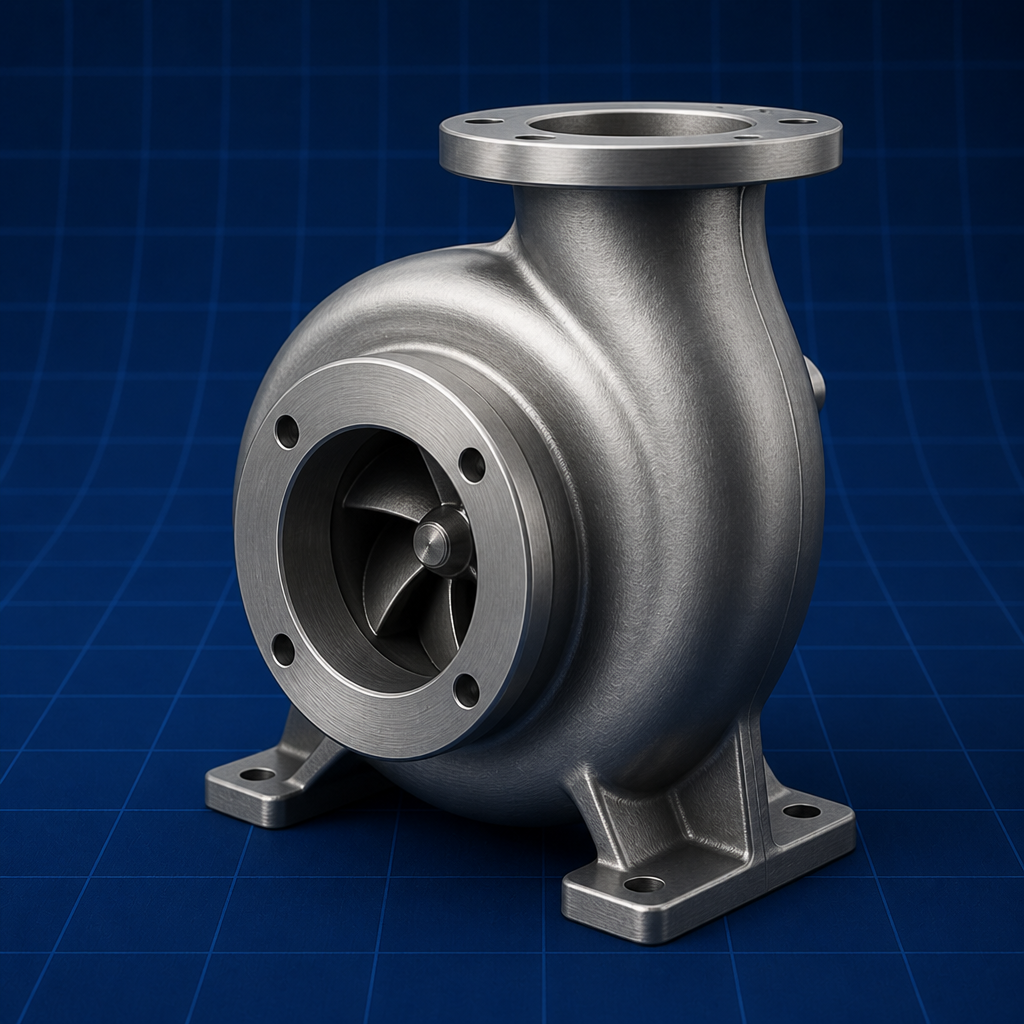

The impeller imparts kinetic energy to the fluid, which the volute converts to pressure head. Manometric head is the actual head developed, less than the Euler head because of losses. Various efficiencies (manometric, mechanical, overall) relate the ideal and actual quantities.

Why this topic matters in practice

Cavitation — vapour formation when local pressure drops below vapour pressure — is prevented by ensuring the available net positive suction head exceeds the required value. Characteristic curves (H–Q, η–Q, P–Q) and priming are examinable practical aspects.

Key relations & formulas

Hm=(V2u2V1u1)gH_{m} = \frac{(V_{2}u_{2} - V_{1}u_{1})}{g}
(manometric head, Euler)

Formulas (Indian textbook notation)

  • ηoverall=ρgQHmPshaft\eta_{overall} = \frac{\rho gQH_{m}}{P_{shaft}}
NPSHa=Hatm+HsHvhsNPSH_{a} = H_{atm} + H_{s} - H_{v} - h_{s}
(available NPSH)

Formulas (Indian textbook notation)

  • NPSHrfrommanufacturerNPSHa>NPSHrtoavoidcavitationNPSH_{r} from manufacturer - NPSH_{a} > NPSH_{r} to avoid cavitation

Notation and sign conventions

Relation 1 —
Hm=H_{m} =
Hm=(V2u2V1u1)gH_{m} = \frac{(V_{2}u_{2} - V_{1}u_{1})}{g}
(manometric head, Euler)
Write this relation with symbols exactly as in Fluid Mechanics & Hydraulic Machines — Modi & Seth before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
ηoverall=ρgQHmPshaft\eta_{overall} = \frac{\rho gQH_{m}}{P_{shaft}}

Formulas (Indian textbook notation)

  • ηoverall=ρgQHmPshaft\eta_{overall} = \frac{\rho gQH_{m}}{P_{shaft}}
Write this relation with symbols exactly as in Fluid Mechanics & Hydraulic Machines — Modi & Seth before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
NPSHa=Hatm+HsHvhsNPSH_{a} = H_{atm} + H_{s} - H_{v} - h_{s}
NPSHa=Hatm+HsHvhsNPSH_{a} = H_{atm} + H_{s} - H_{v} - h_{s}
(available NPSH)
Write this relation with symbols exactly as in Fluid Mechanics & Hydraulic Machines — Modi & Seth before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
NPSHrfrommanufacturerNPSHa>NPSHrtoavoidcavitationNPSH_{r} from manufacturer - NPSH_{a} > NPSH_{r} to avoid cavitation

Formulas (Indian textbook notation)

  • NPSHrfrommanufacturerNPSHa>NPSHrtoavoidcavitationNPSH_{r} from manufacturer - NPSH_{a} > NPSH_{r} to avoid cavitation
Write this relation with symbols exactly as in Fluid Mechanics & Hydraulic Machines — Modi & Seth before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

Euler's pump equation gives the ideal head H_e = (V_w2·u₂ − V_w1·u₁)/g; for radial entry V_w1 = 0, so H_e = V_w2·u₂/g. The manometric head H_m is the useful head after slip and losses, related by manometric efficiency η_man = H_m/H_e.

Governing relations in practice

Overall efficiency η = ρgQH_m/P_shaft combines manometric, volumetric, and mechanical efficiencies. The impeller speed u₂ = πD₂N/60 and the outlet blade angle fix V_w2 through the velocity triangle.

Design and analysis considerations

Cavitation occurs where pressure falls to vapour pressure (usually the impeller eye); collapsing bubbles pit the metal and cut performance. The available NPSH = (P_atm − P_vapour)/ρg − h_suction − h_friction must exceed the pump's required NPSH.

Advanced theory and extensions

Pump curves show head falling as discharge rises; the operating point is where the pump curve meets the system resistance curve. Pumps in series add head, in parallel add discharge — the practical selection logic examiners probe.

Assumptions and validity limits

State assumptions explicitly before using any relation for centrifugal pump — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Fluid Machinery viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Fluid Machinery papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to centrifugal pump.
4. Use equation 1:
Hm=H_{m} =
.
5. Use equation 2:
ηoverall=ρgQHmPshaft\eta_{overall} = \frac{\rho gQH_{m}}{P_{shaft}}
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Centrifugal Pump appears in hydropower, water supply, and process plants. In Indian mechanical curricula this topic is tested because it connects theory to turbines, pumps, and fluid power devices.
GATE and semester exams often combine centrifugal pump with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use centrifugal pump?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Assuming inlet whirl V_w1 ≠ 0 when the pump has radial entry
• Confusing manometric head H_m with Euler head H_e (they differ by efficiency)
• Comparing NPSH_available with vapour pressure instead of NPSH_required
• Adding discharge for series pumps (series adds head; parallel adds discharge)

Quick revision checklist

Before attempting centrifugal pump problems, confirm you can:
1. Cavitation when local P < vapour pressure
2. Priming required — pump cannot self-prime if suction above liquid
3. Characteristic curves: H vs Q, η vs Q, P vs Q
Revise the solved examples in Fluid Mechanics & Hydraulic Machines — Modi & Seth and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Overall efficiency of a pump

Problem

A pump delivers Q = 0.05 m³/s against a manometric head H_m = 20 m using a shaft power of 12 kW. Find the overall efficiency (ρ = 1000 kg/m³).

Solution

η = ρgQH_m/P_shaft = (1000 × 9.81 × 0.05 × 20)/12000 = 9810/12000 = 0.818, i.e. 81.8 %.

Conceptual check — Centrifugal Pump

Problem

In a Fluid Machinery semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of centrifugal pump." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Centrifugal Pump, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    A centrifugal pump adds head via Euler's relation H_m = (V_w2·u₂ − V_w1·u₁)/g; overall efficiency η = ρgQH_m/P_shaft. Cavitation is avoided by keeping NPSH_available above NPSH_required, per Modi & Seth.
  2. 2
    State the relation H_m = and name each symbol.

    Model answer

    The governing relation is Hm=H_{m} =. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation η_overall = ρgQH_m/P_shaft and name each symbol.

    Model answer

    The governing relation is ηoverall=ρgQHmPshaft\eta_{overall} = \frac{\rho gQH_{m}}{P_{shaft}}. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation NPSH_a = H_atm + H_s − H_v − h_s and name each symbol.

    Model answer

    The governing relation is NPSHa=Hatm+HsHvhsNPSH_{a} = H_{atm} + H_{s} - H_{v} - h_{s}. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation NPSH_r from manufacturer — NPSH_a > NPSH_r to avoid cavitation and name each symbol.

    Model answer

    The governing relation is NPSHrfrommanufacturerNPSHa>NPSHrtoavoidcavitationNPSH_{r} from manufacturer - NPSH_{a} > NPSH_{r} to avoid cavitation. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Cavitation when local P < vapour pressure

    Model answer

    Cavitation when local P < vapour pressure — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Priming required — pump cannot self-prime if suction above liquid

    Model answer

    Priming required — pump cannot self-prime if suction above liquid — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Characteristic curves: H vs Q, η vs Q, P vs Q

    Model answer

    Characteristic curves: H vs Q, η vs Q, P vs Q — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Assuming inlet whirl V_w1 ≠ 0 when the pump has radial entry?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Confusing manometric head H_m with Euler head H_e (they differ by efficiency)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Comparing NPSH_available with vapour pressure instead of NPSH_required?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Adding discharge for series pumps (series adds head; parallel adds discharge)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    Modi & Seth Ch. 19 — manometric vs static head distinction.
  • 2
    Avoid: Assuming inlet whirl V_w1 ≠ 0 when the pump has radial entry
  • 3
    Avoid: Confusing manometric head H_m with Euler head H_e (they differ by efficiency)
  • 4
    Avoid: Comparing NPSH_available with vapour pressure instead of NPSH_required

📖 Standard books (India)

  • Fluid Mechanics & Hydraulic MachinesModi & Seth

    Read: Syllabus unit

    Fluid statics, dynamics, pipes, and turbomachinery
