Electric Traction

Electric traction drives trains with high-starting-torque motors; the tractive effort must accelerate the train, overcome gradient and resistance, yet stay below the adhesion limit F_max = μW to avoid wheel slip.

Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

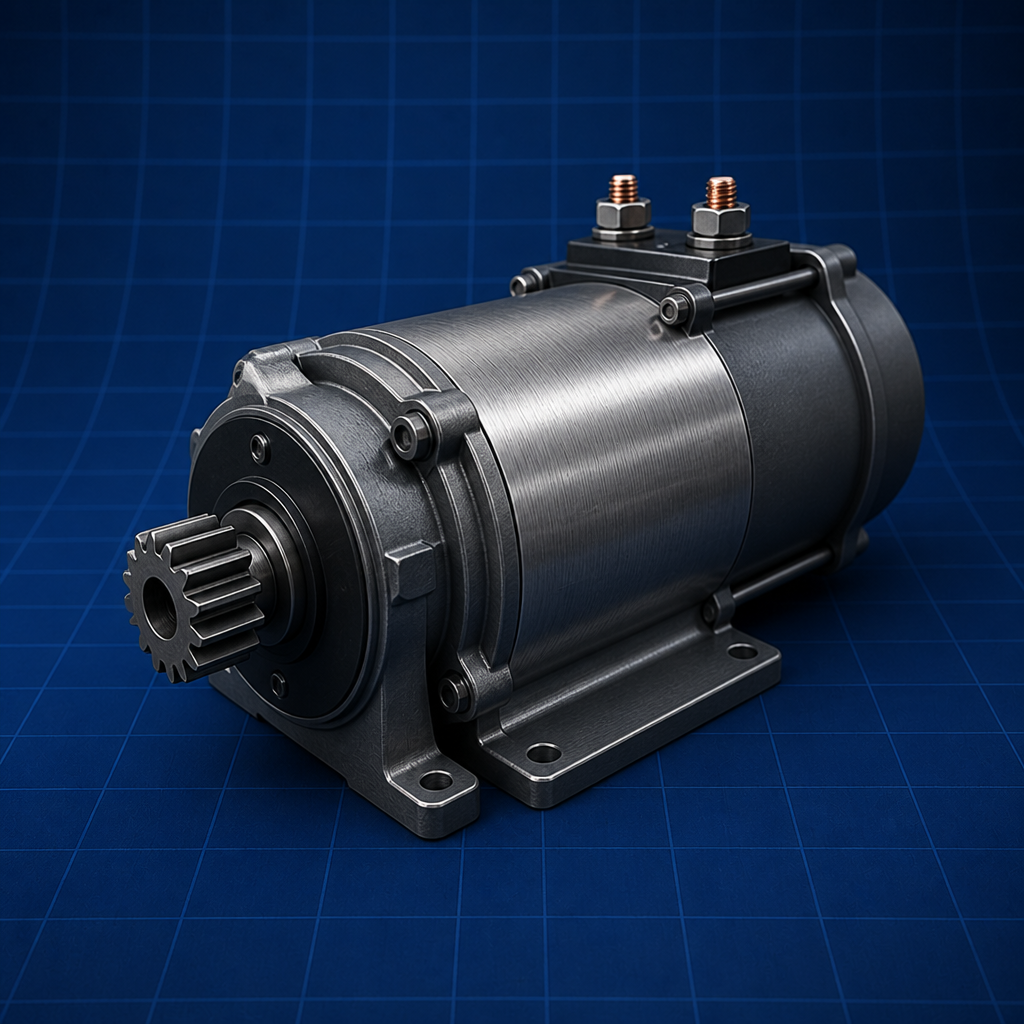

DC series motor historically; AC induction/BLDC in modern traction
Regenerative braking returns energy to line
Overhead catenary vs third rail supply

Topic details

Introduction

The speed–time curve (acceleration, free run, coasting, braking) is the basis of traction calculation. Tractive effort provides acceleration force (ma), gradient force (Wg·grade) and train resistance. The DC series motor historically suited traction for its high starting torque; modern systems use AC induction or PMSM with inverters.

Scope in B.Tech and GATE syllabus

The available effort is limited by adhesion: F_max = μW, where μ (0.2–0.35) is the wheel–rail coefficient and W the adhesive weight. Exceeding it causes wheel slip.

Key relations & formulas

Tractive effort F = \eta \frac{P}{v}

(P motor power, v speed)

Specific energy consumption = energy /

(tonne-km)

Adhesion limit: F_{max} = \mu W

(μ coefficient, W axle load)

Notation and sign conventions

Relation 1 —

Tractive effort F = \eta \frac{P}{v}

Tractive effort F = \eta \frac{P}{v}

(P motor power, v speed)

Write this relation with symbols exactly as in Art & Science of Utilisation of Electrical Energy — H. Partab before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 2 —

Specific energy consumption = energy /

Specific energy consumption = energy /

(tonne-km)

Relation 3 —

Adhesion limit: F_{max} = \mu W

Adhesion limit: F_{max} = \mu W

(μ coefficient, W axle load)

Fundamentals and definitions

Tractive effort for acceleration on the level: F = (mass) × (acceleration) plus train resistance; on a gradient add the component of weight along the slope.

Governing relations in practice

Specific energy consumption (Wh per tonne-km) measures efficiency of a schedule; regenerative braking feeds energy back to the line during deceleration, cutting consumption and brake wear.

Design and analysis considerations

Schedule speed (distance/total time including stops) is always below the average running speed; reducing acceleration/braking time or dwell improves it.

Assumptions and validity limits

State assumptions explicitly before using any relation for electric traction — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.

Wrong assumptions invalidate the entire solution even when the formula is correct. In Electrical Utilization viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Electrical Utilization papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to electric traction.
4. Use equation 1:

Tractive effort F = \eta \frac{P}{v}

.
5. Use equation 2:

Specific energy consumption = energy /

.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Electric Traction appears in industry and railways. In Indian electrical curricula this topic is tested because it connects theory to traction, illumination, and heating.

GATE and semester exams often combine electric traction with earlier units — revise prerequisites before attempting mixed problems.

Industry interview panels sometimes ask: "Where did you use electric traction?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Ignoring train resistance and gradient force when finding tractive effort
• Letting the demanded effort exceed the adhesion limit μW (wheel slip)
• Confusing schedule speed (with stops) and average running speed
• Forgetting to convert units (tonnes, km/h) consistently to SI

Quick revision checklist

Before attempting electric traction problems, confirm you can:

1. DC series motor historically; AC induction/BLDC in modern traction
2. Regenerative braking returns energy to line
3. Overhead catenary vs third rail supply

Revise the solved examples in Art & Science of Utilisation of Electrical Energy — H. Partab and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Tractive effort for acceleration

Problem

A 200-tonne train accelerates on level track at 0.5 m/s². Train resistance is 50 N per tonne. Find the total tractive effort (ignore rotational inertia allowance).

Solution

Mass m = 200 × 1000 = 200000 kg.
Accelerating force = m×a = 200000 × 0.5 = 100000 N = 100 kN.
Resistance force = 50 N/tonne × 200 tonnes = 10000 N = 10 kN.
Total tractive effort = 100 + 10 = 110 kN.

Conceptual check — Electric Traction

Problem

In a Electrical Utilization semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of electric traction." What should a complete answer include?

Exams & GATE

H Partab — tractive effort vs speed curve for locomotive.
