Vehicle Layout and Components

Vehicle layout (FF, FR, RR, 4WD) fixes engine and drive-axle positions, affecting weight distribution and traction. Rear-drive traction is limited by F_t = μ·W_rear, per automobile-engineering texts (Kirpal Singh).
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • FF, FR, MR, RR, 4WD layouts — weight distribution effects
  • Unsprung mass affects ride comfort and road holding
  • Power-to-weight ratio governs acceleration performance

Topic details

Introduction

Vehicle layout and components introduce the powertrain architecture and major subsystems. Kirpal Singh's automobile-engineering text classifies layouts by engine location and driven axle and their effect on handling and packaging.

Scope in B.Tech and GATE syllabus

Front-engine front-drive (FF) is compact and gives good traction on front-loaded small cars; front-engine rear-drive (FR) balances weight for performance; rear-engine and 4WD serve niche and off-road roles. Weight distribution shifts under acceleration and braking, changing available traction.

Why this topic matters in practice

The major components — engine, clutch, gearbox, propeller shaft, differential, axles — form the transmission chain. Understanding layout trade-offs and traction limits is the introductory exam content.

Key relations & formulas

W=mg;tractionforceFt=μ⋅WrearW = mg; traction force F_{t} = \mu\cdot W_{rear}
(RWD acceleration limit)
amax=Ftm=μ⋅g⋅(WrearW)a_{max} = \frac{F_{t}}{m} = \mu\cdot g\cdot (\frac{W_{rear}}{W})
(max acceleration, no slip)

Formulas (Indian textbook notation)

  • CGheightaffectsloadtransfer:ΔWfront=m⋅a⋅hcgwheelbaseCG height affects load transfer: \Delta W_{front} = m\cdot a\cdot \frac{h_{cg}}{wheelbase}

Formulas (Indian textbook notation)

  • RollingresistanceFr=Crr⋅WRolling resistance F_{r} = C_{rr}\cdot W

Notation and sign conventions

Relation 1 —
W=mg;tractionforceFt=μ⋅WrearW = mg; traction force F_{t} = \mu\cdot W_{rear}
W=mg;tractionforceFt=μ⋅WrearW = mg; traction force F_{t} = \mu\cdot W_{rear}
(RWD acceleration limit)
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
amax=Ftm=μ⋅g⋅a_{max} = \frac{F_{t}}{m} = \mu\cdot g\cdot
amax=Ftm=μ⋅g⋅(WrearW)a_{max} = \frac{F_{t}}{m} = \mu\cdot g\cdot (\frac{W_{rear}}{W})
(max acceleration, no slip)
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
CGheightaffectsloadtransfer:ΔWfront=m⋅a⋅hcgwheelbaseCG height affects load transfer: \Delta W_{front} = m\cdot a\cdot \frac{h_{cg}}{wheelbase}

Formulas (Indian textbook notation)

  • CGheightaffectsloadtransfer:ΔWfront=m⋅a⋅hcgwheelbaseCG height affects load transfer: \Delta W_{front} = m\cdot a\cdot \frac{h_{cg}}{wheelbase}
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
RollingresistanceFr=Crr⋅WRolling resistance F_{r} = C_{rr}\cdot W

Formulas (Indian textbook notation)

  • RollingresistanceFr=Crr⋅WRolling resistance F_{r} = C_{rr}\cdot W
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

Layout determines where mass sits and which wheels drive. FF layouts put the powertrain over the driven front wheels, aiding traction and cabin space; FR layouts separate steering (front) and drive (rear) for balanced handling; RR and mid-engine layouts favour traction/handling at packaging cost.

Governing relations in practice

Static weight distribution shifts dynamically: under acceleration load transfers rearward (helping RWD traction), under braking forward. Traction is limited by the friction available at the driven axle: F_t = μ·W_axle, so the normal load on the driven wheels caps the drive force.

Design and analysis considerations

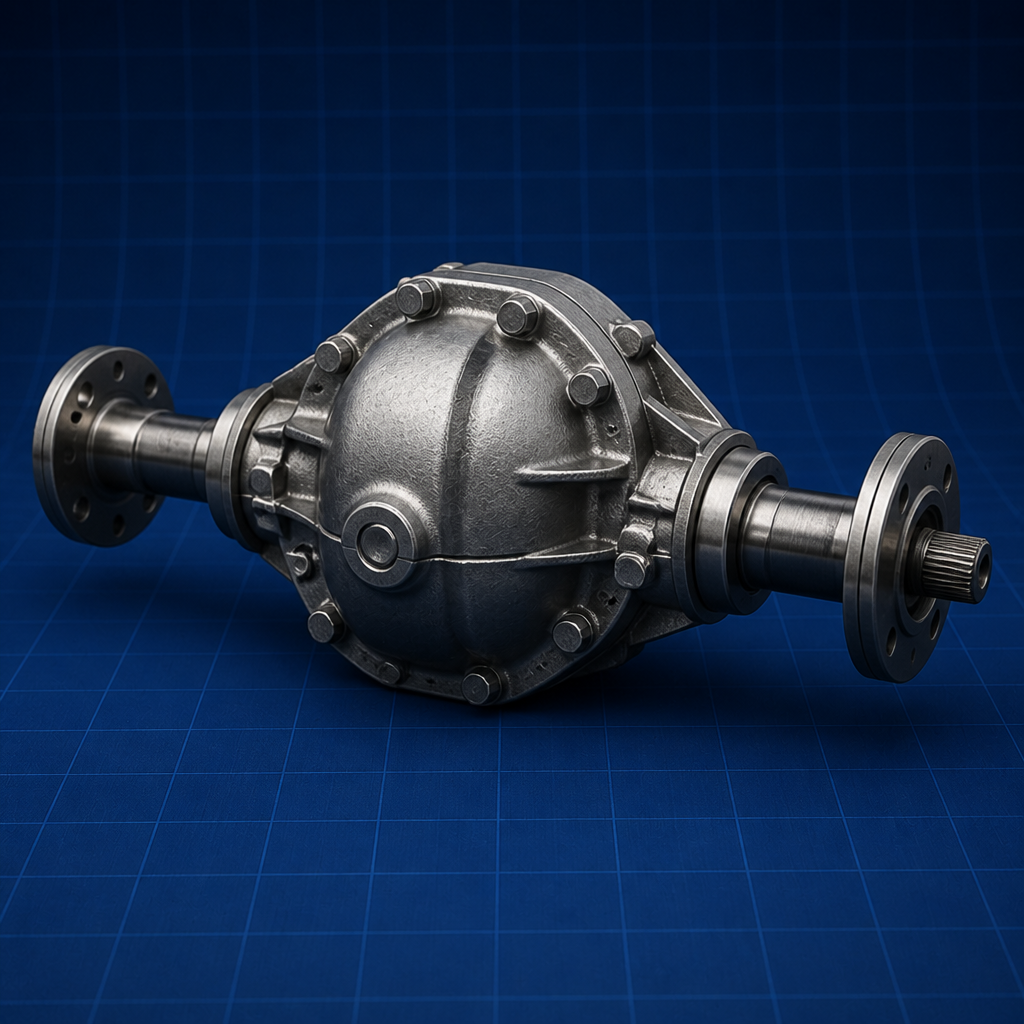

The transmission chain conveys engine torque to the wheels through the clutch (engagement), gearbox (ratio selection), propeller shaft, and differential (splits torque, allows cornering speed difference). Each component is sized for the torque path.

Advanced theory and extensions

Choosing a layout balances traction, handling, packaging, and cost. Recognising how weight transfer and axle load set the traction limit is the key applied concept for later performance topics.

Assumptions and validity limits

State assumptions explicitly before using any relation for vehicle layout and components — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Automobile Engineering viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Automobile Engineering papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to vehicle layout and components.
4. Use equation 1:
W=mg;tractionforceFt=μ⋅WrearW = mg; traction force F_{t} = \mu\cdot W_{rear}
.
5. Use equation 2:
amax=Ftm=μ⋅g⋅a_{max} = \frac{F_{t}}{m} = \mu\cdot g\cdot
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Vehicle Layout and Components appears in OEM design and service engineering. In Indian mechanical curricula this topic is tested because it connects theory to vehicle systems and performance.
GATE and semester exams often combine vehicle layout and components with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use vehicle layout and components?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Ignoring dynamic weight transfer when estimating driven-axle traction
• Confusing FF, FR, and RR layout characteristics
• Using total vehicle weight instead of driven-axle load in F_t = μW
• Overlooking the differential's role in allowing wheel speed difference in turns

Quick revision checklist

Before attempting vehicle layout and components problems, confirm you can:
1. FF, FR, MR, RR, 4WD layouts — weight distribution effects
2. Unsprung mass affects ride comfort and road holding
3. Power-to-weight ratio governs acceleration performance
Revise the solved examples in Automobile Engineering — Kirpal Singh and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Rear-axle traction limit

Problem

A rear-drive car has a rear-axle load of 6 kN and tyre-road friction μ = 0.8. Find the maximum tractive force.

Solution

F_t = μ·W_rear = 0.8 × 6000 = 4800 N (the traction limit before the driven wheels spin).

Conceptual check — Vehicle Layout and Components

Problem

In a Automobile Engineering semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of vehicle layout and components." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Vehicle Layout and Components, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    Vehicle layout (FF, FR, RR, 4WD) fixes engine and drive-axle positions, affecting weight distribution and traction. Rear-drive traction is limited by F_t = μ·W_rear, per automobile-engineering texts (Kirpal Singh).
  2. 2
    State the relation W = mg; traction force F_t = μ·W_rear and name each symbol.

    Model answer

    The governing relation is W=mg;tractionforceFt=μ⋅WrearW = mg; traction force F_{t} = \mu\cdot W_{rear}. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation a_max = F_t/m = μ·g· and name each symbol.

    Model answer

    The governing relation is amax=Ftm=μ⋅g⋅a_{max} = \frac{F_{t}}{m} = \mu\cdot g\cdot. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation CG height affects load transfer: ΔW_front = m·a·h_cg/wheelbase and name each symbol.

    Model answer

    The governing relation is CGheightaffectsloadtransfer:ΔWfront=m⋅a⋅hcgwheelbaseCG height affects load transfer: \Delta W_{front} = m\cdot a\cdot \frac{h_{cg}}{wheelbase}. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation Rolling resistance F_r = C_rr·W and name each symbol.

    Model answer

    The governing relation is RollingresistanceFr=Crr⋅WRolling resistance F_{r} = C_{rr}\cdot W. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: FF, FR, MR, RR, 4WD layouts — weight distribution effects

    Model answer

    FF, FR, MR, RR, 4WD layouts — weight distribution effects — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Unsprung mass affects ride comfort and road holding

    Model answer

    Unsprung mass affects ride comfort and road holding — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Power-to-weight ratio governs acceleration performance

    Model answer

    Power-to-weight ratio governs acceleration performance — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Ignoring dynamic weight transfer when estimating driven-axle traction?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Confusing FF, FR, and RR layout characteristics?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Using total vehicle weight instead of driven-axle load in F_t = μW?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Overlooking the differential's role in allowing wheel speed difference in turns?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    Kirpal Singh Ch. 1 — draw layout diagrams for each drive configuration.
  • 2
    Avoid: Ignoring dynamic weight transfer when estimating driven-axle traction
  • 3
    Avoid: Confusing FF, FR, and RR layout characteristics
  • 4
    Avoid: Using total vehicle weight instead of driven-axle load in F_t = μW

📖 Standard books (India)

  • Automobile Engineering — Kirpal Singh

    Read: Syllabus unit

    Vehicle layout, transmission, and engines
