Underground Traverse

Closed traverses in mine workings must return to the starting point within acceptable tolerance — DGMS and university exams alike test closure computation and adjustment. A typical B.Tech question gives five underground legs with azimuth and distance, asks for misclosure and adjusted coordinates.

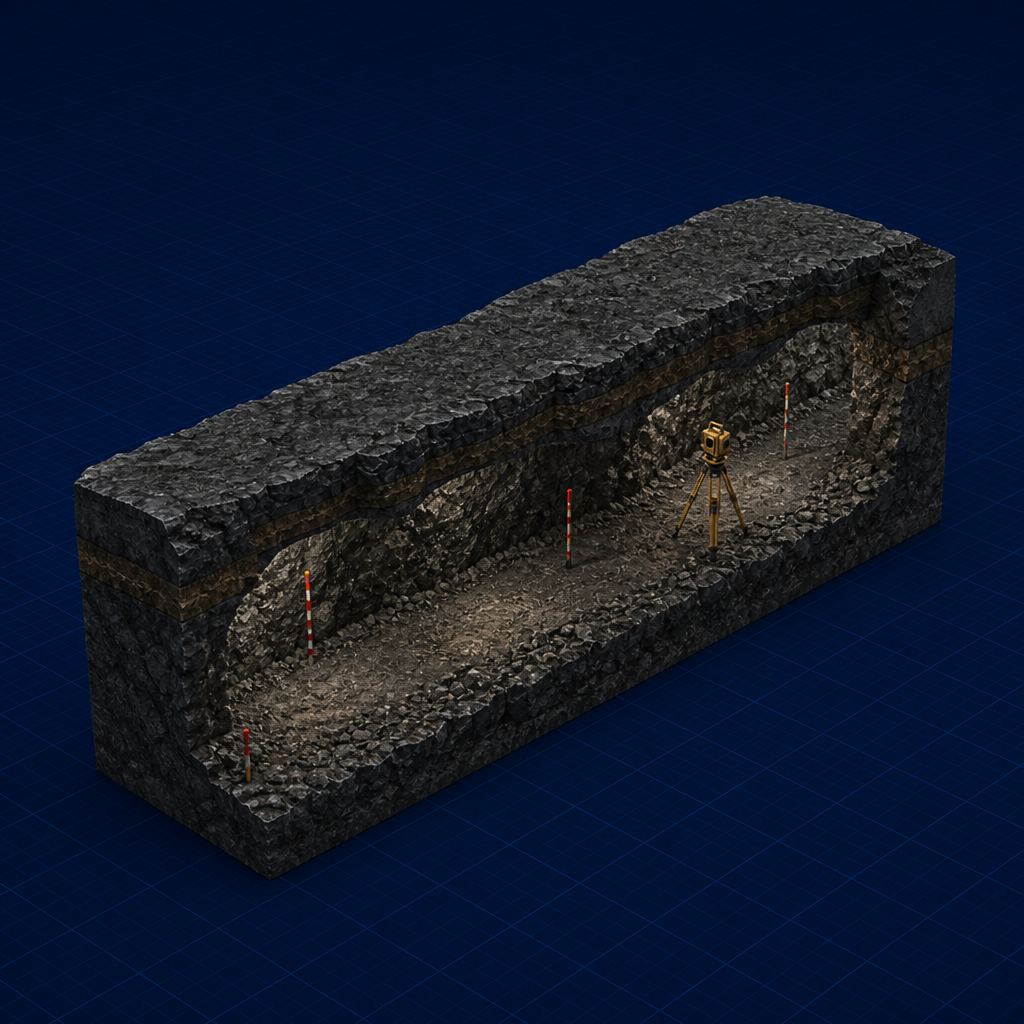

Gyro stations break cumulative azimuth drift; distance measurements along haulage roads use taping or laser. Plumb wires transfer surface coordinates down shafts — lateral displacement of the wire (convergence) must be accounted for in deep shafts.

Hartman & Mutmansky recommend relative precision better than 1/5000 for major control traverses in metalliferous mines.

Relation 1 —

Write this relation with symbols exactly as in Dass Mine Surveying — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 2 —

Write this relation with symbols exactly as in Dass Mine Surveying — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 3 —

Write this relation with symbols exactly as in Dass Mine Surveying — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Sum ΔN and ΔE for all traverse legs to get misclosure components. Total linear misclosure e = √(ΔN²+ΔE²) compared against permissible error (often proportional to √L or fixed fraction of L). Relative precision 1/(e/L) characterises survey quality — higher denominator means better survey.

Bowditch (compass) adjustment distributes misclosure to each leg in proportion to horizontal distance: corrected ΔN_i = ΔN_i − (ΔN_mis/L_total)×L_i. This assumes errors are random in direction and magnitude — reasonable for mine traverses with mixed sight lengths.

Gyro-theodolite azimuth at interval stations prevents azimuth error accumulation that distance-ratio adjustment cannot fix. Without gyro, azimuth misclosure may dominate — check angular misclosure separately before coordinate adjustment.

Plumb transfer introduces vertical correlation: two wires in a shaft define a plane; coordinates at shaft bottom are offset from surface by shaft depth and wire separation. Singh & Singh describe the Weisbach triangle method for inclined shafts.

State assumptions explicitly before using any relation for underground traverse — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.

Wrong assumptions invalidate the entire solution even when the formula is correct. In Mine Surveying viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

1. Read the question and list given data with SI units (common in Mine Surveying papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to underground traverse.
4. Use equation 1: .
5. Use equation 2: .
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Underground Traverse appears in mine planning and statutory records. In Indian mining curricula this topic is tested because it connects theory to underground and surface surveys.

GATE and semester exams often combine underground traverse with earlier units — revise prerequisites before attempting mixed problems.

Industry interview panels sometimes ask: "Where did you use underground traverse?" — answer with a lab, mini-project, or plant visit example if possible.

• Adjusting angles when only coordinate misclosure adjustment (Bowditch) is asked
• Using total slope distance L instead of sum of horizontal leg lengths in precision ratio
• Ignoring angular misclosure before applying Bowditch
• Reporting closure error without comparing to allowable limit or relative precision

Before attempting underground traverse problems, confirm you can:

1. Closed traverse returns to start
2. Gyro + distance for azimuth control
3. Plumb transfers surface to underground

Revise the solved examples in Dass Mine Surveying — Standard reference and one previous-year GATE or university paper for this unit.
