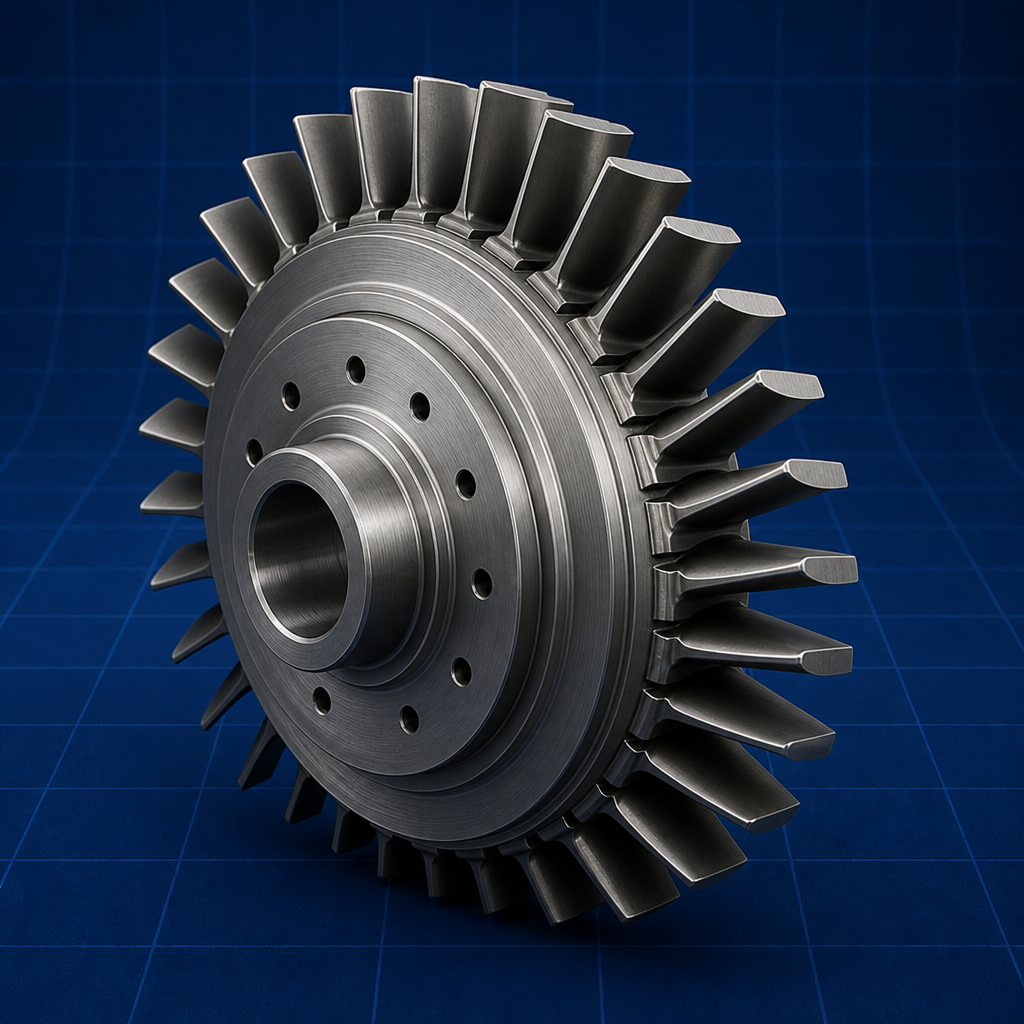

Steam Power Plant

A steam power plant runs the Rankine cycle; its efficiency is η = (W_turbine − W_pump)/Q_boiler. Boiler, turbine, condenser, and feed pump form the main circuit, per P.K. Nag.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • Superheat, reheat, regeneration improve Rankine efficiency
  • Condenser vacuum critical — lower P_cond raises η
  • Boiler: fire-tube vs water-tube for capacity

Topic details

Introduction

The steam (thermal) power plant is the backbone of Indian electricity generation, and its analysis applies the Rankine cycle at plant scale. P.K. Nag treats the plant's main circuit and auxiliaries.

Scope in B.Tech and GATE syllabus

The main components — boiler (heat addition), turbine (work extraction), condenser (heat rejection), and feed pump — are supported by coal handling, draught, feedwater treatment, and ash disposal systems. Superheating, reheating, and regenerative feedwater heating raise efficiency.

Why this topic matters in practice

Plant performance uses heat rate (heat input per unit electrical output) and overall efficiency. Understanding the circuit, the improvements, and performance metrics is the exam focus, often with a Rankine numerical.

Key relations & formulas

Formulas (Indian textbook notation)

  • ηrankine=(Wturb−Wpump)Qboiler\eta_{rankine} = \frac{(W_{turb} - W_{pump})}{Q_{boiler}}

Formulas (Indian textbook notation)

  • Wturb=m˙steam(h1−h2);Wpump=m˙liq(vf)(P2−P1)W_{turb} = ṁ_steam(h_{1} - h_{2}); W_{pump} = ṁ_liq(v_{f})(P_{2} - P_{1})
HeatrateHR=3600ηHeat rate HR = \frac{3600}{\eta}
(kJ/kWh)

Formulas (Indian textbook notation)

  • Plantcapacityfactor=actualenergy(rated×hours)×100Plant capacity factor = \frac{actual_{energy}}{(rated \times hours)} \times 100%

Notation and sign conventions

Relation 1 —
ηrankine=\eta_{rankine} =

Formulas (Indian textbook notation)

  • ηrankine=(Wturb−Wpump)Qboiler\eta_{rankine} = \frac{(W_{turb} - W_{pump})}{Q_{boiler}}
Write this relation with symbols exactly as in Power Plant Engineering — P.K. Nag before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Wturb=m˙steamW_{turb} = ṁ_steam

Formulas (Indian textbook notation)

  • Wturb=m˙steam(h1−h2);Wpump=m˙liq(vf)(P2−P1)W_{turb} = ṁ_steam(h_{1} - h_{2}); W_{pump} = ṁ_liq(v_{f})(P_{2} - P_{1})
Write this relation with symbols exactly as in Power Plant Engineering — P.K. Nag before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
HeatrateHR=3600ηHeat rate HR = \frac{3600}{\eta}
HeatrateHR=3600ηHeat rate HR = \frac{3600}{\eta}
(kJ/kWh)
Write this relation with symbols exactly as in Power Plant Engineering — P.K. Nag before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
Plantcapacityfactor=actualenergy/Plant capacity factor = actual_{energy}/

Formulas (Indian textbook notation)

  • Plantcapacityfactor=actualenergy(rated×hours)×100Plant capacity factor = \frac{actual_{energy}}{(rated \times hours)} \times 100%
Write this relation with symbols exactly as in Power Plant Engineering — P.K. Nag before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

In the steam plant, high-pressure feedwater is heated and evaporated in the boiler, superheated, expanded through the turbine to generate work, condensed in the condenser, and pumped back — the Rankine cycle. Efficiency is η = (W_turb − W_pump)/Q_boiler.

Governing relations in practice

Efficiency improvements raise the mean temperature of heat addition or lower rejection: superheating dries the turbine exhaust and raises η; reheating expands steam in stages to limit wetness; regenerative feedwater heating with bled steam cuts low-temperature boiler heat.

Design and analysis considerations

The condenser rejects latent heat to cooling water at low pressure (below atmospheric), maximising turbine work; a good vacuum improves efficiency. Draught systems supply combustion air and remove flue gas.

Advanced theory and extensions

Plant metrics: heat rate (kJ/kWh) is the inverse of overall efficiency, and lower is better; capacity factor and availability measure utilisation. Sizing components and evaluating efficiency from the Rankine cycle are the practical outputs.

Assumptions and validity limits

State assumptions explicitly before using any relation for steam power plant — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Power Plant Engineering viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Power Plant Engineering papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to steam power plant.
4. Use equation 1:
ηrankine=\eta_{rankine} =
.
5. Use equation 2:
Wturb=m˙steamW_{turb} = ṁ_steam
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Steam Power Plant appears in thermal and combined-cycle plants. In Indian mechanical curricula this topic is tested because it connects theory to steam and gas-based power generation.
GATE and semester exams often combine steam power plant with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use steam power plant?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Neglecting condenser vacuum's effect on turbine work and efficiency
• Confusing reheat with regeneration among the efficiency improvements
• Omitting pump work in net-efficiency calculations
• Mixing up heat rate (kJ/kWh) with efficiency (they are inverses)

Quick revision checklist

Before attempting steam power plant problems, confirm you can:
1. Superheat, reheat, regeneration improve Rankine efficiency
2. Condenser vacuum critical — lower P_cond raises η
3. Boiler: fire-tube vs water-tube for capacity
Revise the solved examples in Power Plant Engineering — P.K. Nag and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Rankine plant efficiency

Problem

A steam plant has turbine work 900 kJ/kg, pump work 10 kJ/kg, and boiler heat input 2500 kJ/kg. Find the cycle efficiency.

Solution

η = (W_turb − W_pump)/Q_boiler = (900 − 10)/2500 = 890/2500 = 0.356, i.e. 35.6 %.

Conceptual check — Steam Power Plant

Problem

In a Power Plant Engineering semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of steam power plant." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Steam Power Plant, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    A steam power plant runs the Rankine cycle; its efficiency is η = (W_turbine − W_pump)/Q_boiler. Boiler, turbine, condenser, and feed pump form the main circuit, per P.K. Nag.
  2. 2
    State the relation η_rankine = and name each symbol.

    Model answer

    The governing relation is ηrankine=\eta_{rankine} =. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation W_turb = ṁ_steam and name each symbol.

    Model answer

    The governing relation is Wturb=m˙steamW_{turb} = ṁ_steam. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation Heat rate HR = 3600/η and name each symbol.

    Model answer

    The governing relation is HeatrateHR=3600ηHeat rate HR = \frac{3600}{\eta}. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation Plant capacity factor = actual_energy/ and name each symbol.

    Model answer

    The governing relation is Plantcapacityfactor=actualenergy/Plant capacity factor = actual_{energy}/. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Superheat, reheat, regeneration improve Rankine efficiency

    Model answer

    Superheat, reheat, regeneration improve Rankine efficiency — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Condenser vacuum critical — lower P_cond raises η

    Model answer

    Condenser vacuum critical — lower P_cond raises η — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Boiler: fire-tube vs water-tube for capacity

    Model answer

    Boiler: fire-tube vs water-tube for capacity — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Neglecting condenser vacuum's effect on turbine work and efficiency?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Confusing reheat with regeneration among the efficiency improvements?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Omitting pump work in net-efficiency calculations?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Mixing up heat rate (kJ/kWh) with efficiency (they are inverses)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    P.K. Nag Power Plant — heat balance diagram mandatory in exam answers.
  • 2
    Avoid: Neglecting condenser vacuum's effect on turbine work and efficiency
  • 3
    Avoid: Confusing reheat with regeneration among the efficiency improvements
  • 4
    Avoid: Omitting pump work in net-efficiency calculations
