Prestressing Systems

Distinguish pre-tensioning (tendons stressed before casting, force transferred by bond at release) from post-tensioning (ducts cast in, tendons stressed and anchored after hardening), and size the force from P = σ_p A_p.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • Pre-tension: best for mass production (sleepers, poles)
  • Post-tension: curved cables, large spans, in-situ construction
  • IS 1343 governs prestressed concrete design in India

Topic details

Introduction

Prestressing introduces an internal compressive force so that concrete, weak in tension, remains in compression under service loads. The two systems — pre-tensioning and post-tensioning — differ in when and how the tendon force is transferred to the concrete.

Scope in B.Tech and GATE syllabus

Pre-tensioning stresses the tendons against external abutments before casting; once the concrete hardens the tendons are released and the force transfers through bond, making it ideal for factory mass production of identical units like railway sleepers and electric poles.

Why this topic matters in practice

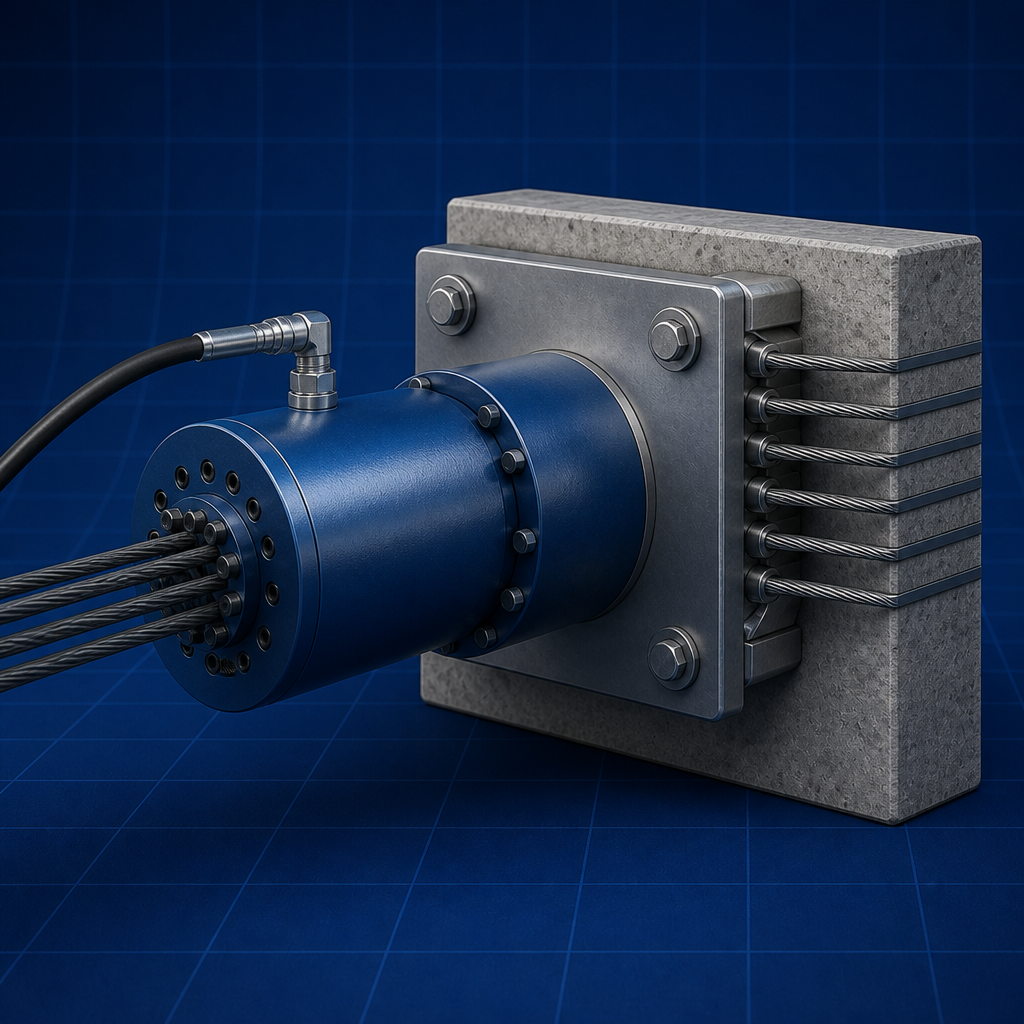

Post-tensioning casts ducts into the member, and after the concrete gains strength the tendons are threaded, jacked and anchored. It suits large in-situ spans and curved cable profiles, and is governed in India by IS 1343.

Key relations & formulas

Formulas (Indian textbook notation)

  • Pre−tensioning:bondtransfersprestresstoconcreteatreleasePre-tensioning: bond transfers prestress to concrete at release

Formulas (Indian textbook notation)

  • Post−tensioning:PappliedviajacksthroughductsafterconcretehardensPost-tensioning: P applied via jacks through ducts after concrete hardens
P=σp×ApP = \sigma_{p} \times A_{p}
(prestressing force)

Notation and sign conventions

Relation 1 —
Pre−tensioning:bondtransfersprestresstoconcreteatreleasePre-tensioning: bond transfers prestress to concrete at release

Formulas (Indian textbook notation)

  • Pre−tensioning:bondtransfersprestresstoconcreteatreleasePre-tensioning: bond transfers prestress to concrete at release
Write this relation with symbols exactly as in Prestressed Concrete — N. Krishna Raju before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Post−tensioning:PappliedviajacksthroughductsafterconcretehardensPost-tensioning: P applied via jacks through ducts after concrete hardens

Formulas (Indian textbook notation)

  • Post−tensioning:PappliedviajacksthroughductsafterconcretehardensPost-tensioning: P applied via jacks through ducts after concrete hardens
Write this relation with symbols exactly as in Prestressed Concrete — N. Krishna Raju before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
P=σp×ApP = \sigma_{p} \times A_{p}
P=σp×ApP = \sigma_{p} \times A_{p}
(prestressing force)
Write this relation with symbols exactly as in Prestressed Concrete — N. Krishna Raju before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

The prestressing force P = σ_p A_p is the product of the tendon stress and its area; high-tensile steel (initial stress around 1000–1400 MPa) is used so that the large losses that occur over time still leave an effective compressive force.

Governing relations in practice

In pre-tensioning the transfer of force relies on the bond between the tendon and concrete near the ends, creating a transmission length over which the prestress builds up. This is why pre-tensioned members need good bond and are limited to straight or gently deflected tendons.

Design and analysis considerations

Post-tensioning uses mechanical anchorages (wedges, cones) to hold the stressed tendons, allowing curved profiles that follow the bending-moment diagram and enabling segmental and cantilever construction of long-span bridges.

Advanced theory and extensions

The choice between systems depends on production scale, span, tendon profile and site constraints; understanding these trade-offs is what theory questions on prestressing systems test.

Assumptions and validity limits

State assumptions explicitly before using any relation for prestressing systems — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Prestressed Concrete viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Prestressed Concrete papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to prestressing systems.
4. Use equation 1:
Pre−tensioning:bondtransfersprestresstoconcreteatreleasePre-tensioning: bond transfers prestress to concrete at release
.
5. Use equation 2:
Post−tensioning:PappliedviajacksthroughductsafterconcretehardensPost-tensioning: P applied via jacks through ducts after concrete hardens
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Prestressing Systems appears in long-span bridges and parking floors. In Indian civil curricula this topic is tested because it connects theory to PSC beams and loss calculations.
GATE and semester exams often combine prestressing systems with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use prestressing systems?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Confusing which system stresses the tendon before casting versus after hardening.
• Assuming curved tendon profiles are feasible in pre-tensioning.
• Using ordinary mild steel instead of high-tensile steel, so losses would wipe out the prestress.
• Forgetting that IS 1343, not IS 456, governs PSC design.

Quick revision checklist

Before attempting prestressing systems problems, confirm you can:
1. Pre-tension: best for mass production (sleepers, poles)
2. Post-tension: curved cables, large spans, in-situ construction
3. IS 1343 governs prestressed concrete design in India
Revise the solved examples in Prestressed Concrete — N. Krishna Raju and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Prestressing force in a tendon

Problem

A post-tensioned beam uses a tendon of area A_p = 800 mm² stressed to an initial stress of 1200 MPa. Find the initial prestressing force.

Solution

Prestressing force P = σ_p × A_p = 1200 × 800 = 960 000 N = 960 kN. After accounting for losses (typically 15–25%), the effective force available for service-load design would be about 720–816 kN, which is used to check stresses at the critical sections.

Conceptual check — Prestressing Systems

Problem

In a Prestressed Concrete semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of prestressing systems." What should a complete answer include?

Exams & GATE

Krishna Raju — distinguish systems and anchorage devices in theory questions.
