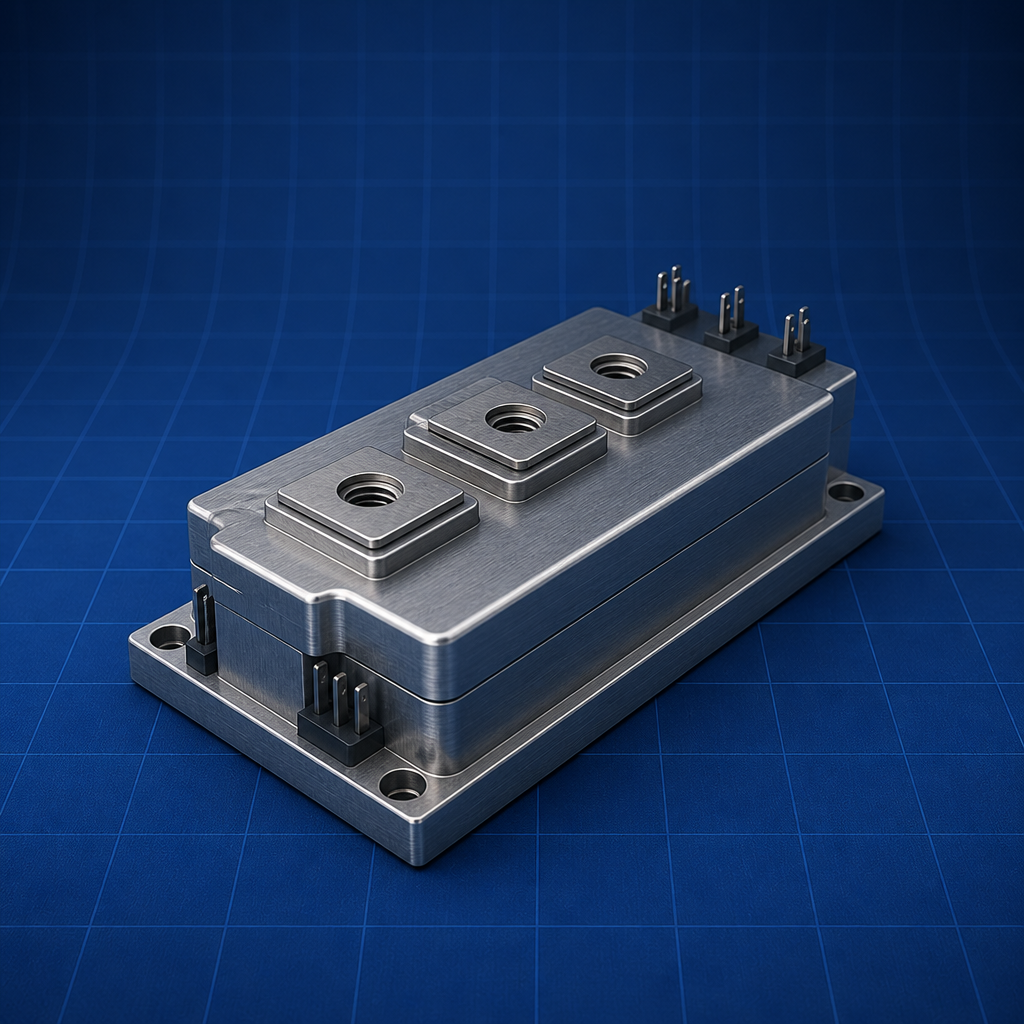

Power Semiconductor Devices

Power devices are chosen by voltage/current rating and switching speed: SCRs latch and need commutation, MOSFETs switch fastest at low power, and IGBTs combine easy voltage drive with high-power capability.

Key formulas & points

Skim these first — then read the full notes below.

  • SCR: latching; needs commutation in DC circuits
  • MOSFET/IGBT: voltage controlled; fast switching
  • Snubber circuits limit dv/dt and di/dt

Topic details

Introduction

Total device loss has two parts: conduction loss (V_T I_avg + r_T I_rms²) that dominates at low switching frequency, and switching loss that rises linearly with switching frequency. The design trade-off between them sets the operating frequency.

Scope in B.Tech and GATE syllabus

An SCR conducts once gated and turns off only when current falls below the holding value, so DC circuits need forced commutation. MOSFETs and IGBTs are gate-voltage controlled and turn off on command, enabling PWM converters.

Key relations & formulas

Formulas (Indian textbook notation)

  • AverageonstatelossP=VTIavg+rTIrms2Average on-state loss P = V_{T} I_{avg} + r_{T} I_{rms}^{2}

Formulas (Indian textbook notation)

  • Switchinglossfsw×(Eon+Eoff)Switching loss ∝ f_{sw} \times (E_{on} + E_{off})

Formulas (Indian textbook notation)

  • SafeoperatingareaSOA:VIlimitsfordeviceSafe operating area SOA: V-I limits for device

Notation and sign conventions

Relation 1 —
AverageonstatelossP=VTIavg+rTIrms2Average on-state loss P = V_{T} I_{avg} + r_{T} I_{rms}^{2}

Formulas (Indian textbook notation)

  • AverageonstatelossP=VTIavg+rTIrms2Average on-state loss P = V_{T} I_{avg} + r_{T} I_{rms}^{2}
Write this relation with symbols exactly as in Power Electronics — PS Bimbhra before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Switchinglossfsw×Switching loss ∝ f_{sw} \times

Formulas (Indian textbook notation)

  • Switchinglossfsw×(Eon+Eoff)Switching loss ∝ f_{sw} \times (E_{on} + E_{off})
Write this relation with symbols exactly as in Power Electronics — PS Bimbhra before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
SafeoperatingareaSOA:VIlimitsfordeviceSafe operating area SOA: V-I limits for device

Formulas (Indian textbook notation)

  • SafeoperatingareaSOA:VIlimitsfordeviceSafe operating area SOA: V-I limits for device
Write this relation with symbols exactly as in Power Electronics — PS Bimbhra before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

The gate turn-on requires enough gate current (SCR) or gate charge (MOSFET/IGBT) within the specified time. dv/dt across an off SCR can cause false turn-on, so an RC snubber limits it; di/dt at turn-on is limited by a series inductor.

Governing relations in practice

The safe operating area (SOA) bounds simultaneous voltage and current to avoid second breakdown; staying inside it during switching transients is essential.

Design and analysis considerations

Junction temperature is found from power loss and thermal resistance: T_j = T_a + P_loss × R_th(j-a). Keeping T_j below the rated maximum drives heatsink selection.

Assumptions and validity limits

State assumptions explicitly before using any relation for power semiconductor devices — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Power Electronics viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Power Electronics papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to power semiconductor devices.
4. Use equation 1:
AverageonstatelossP=VTIavg+rTIrms2Average on-state loss P = V_{T} I_{avg} + r_{T} I_{rms}^{2}
.
5. Use equation 2:
Switchinglossfsw×Switching loss ∝ f_{sw} \times
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Power Semiconductor Devices appears in drives, UPS, and grid interfaces. In Indian electrical curricula this topic is tested because it connects theory to controlled power conversion.
GATE and semester exams often combine power semiconductor devices with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use power semiconductor devices?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Assuming an SCR turns off when the gate signal is removed (it needs current interruption)
• Ignoring switching loss at high frequency (only counting conduction loss)
• Using average current in the r_T I_rms² conduction term
• Forgetting thermal resistance when checking junction temperature

Quick revision checklist

Before attempting power semiconductor devices problems, confirm you can:
1. SCR: latching; needs commutation in DC circuits
2. MOSFET/IGBT: voltage controlled; fast switching
3. Snubber circuits limit dv/dt and di/dt
Revise the solved examples in Power Electronics — PS Bimbhra and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Junction temperature of a device

Problem

A power device dissipates 40 W. Its junction-to-case thermal resistance is 0.5 °C/W and case-to-ambient is 1.0 °C/W. Ambient is 30 °C. Find the junction temperature.

Solution

Total thermal resistance R_th(j-a) = 0.5 + 1.0 = 1.5 °C/W.
Temperature rise = P × R_th = 40 × 1.5 = 60 °C.
T_j = T_a + rise = 30 + 60 = 90 °C.

Conceptual check — Power Semiconductor Devices

Problem

In a Power Electronics semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of power semiconductor devices." What should a complete answer include?

Exams & GATE

PS Bimbhra Ch. 2 — compare SCR, MOSFET, IGBT ratings.
