Nuclear Plant Basics

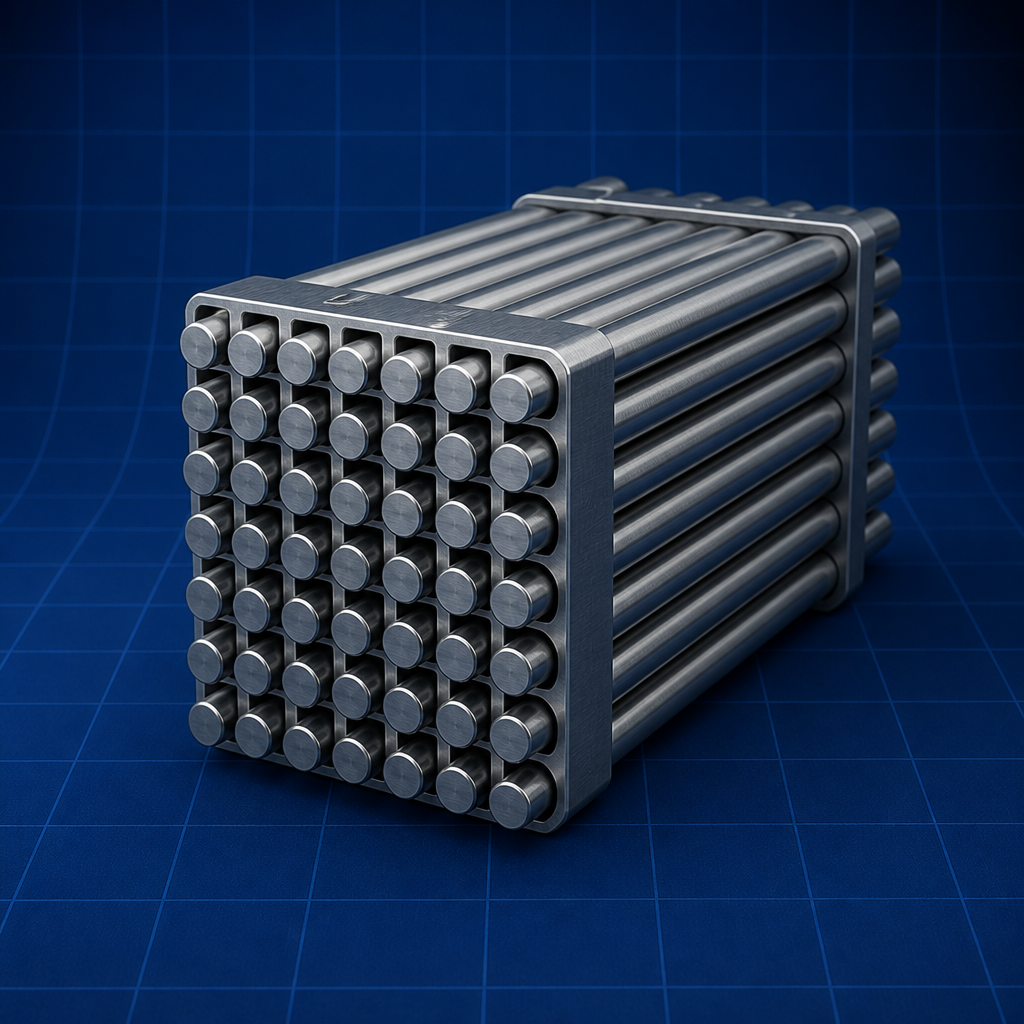

A nuclear plant releases energy by fission (E = mc² for the mass defect) to raise steam for a Rankine cycle. Reactor, coolant, moderator, and control rods form the core system, per power-plant texts.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • PWR: pressurised water primary loop; BWR: direct steam generation
  • Control rods: absorb neutrons; moderator slows neutrons
  • Containment, redundancy, defence-in-depth safety

Topic details

Introduction

Nuclear power plants generate steam from fission heat instead of combustion, providing large base-load, low-carbon electricity. Indian plants use pressurised heavy-water reactors (PHWR) prominently.

Scope in B.Tech and GATE syllabus

The reactor core sustains a controlled chain reaction; a moderator slows neutrons to sustain fission, control rods absorb neutrons to regulate power, and a coolant carries heat to a steam generator feeding a conventional Rankine turbine cycle.

Why this topic matters in practice

Safety — reactivity control, shielding, and decay-heat removal — is paramount. Understanding the fission energy release, reactor components, and the link to the steam cycle is the exam content.

Key relations & formulas

E=mc2E = mc^{2}
(mass-energy equivalence)

Formulas (Indian textbook notation)

  • Thermal power P_{th} = ṁ_fuel \times energy_{per}_fission \times flux
ηth≈33\eta_{th} \approx 33%
(Rankine cycle on secondary side)
Doserate∝activityr2Dose rate ∝ \frac{activity}{r^{2}}
(point source approximation)

Notation and sign conventions

Relation 1 —
E=mc2E = mc^{2}
E=mc2E = mc^{2}
(mass-energy equivalence)
Write this relation with symbols exactly as in Power Plant Engineering — P.K. Nag before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Thermal power P_{th} = ṁ_fuel \times energy_{per}_fission \times flux

Formulas (Indian textbook notation)

  • Thermal power P_{th} = ṁ_fuel \times energy_{per}_fission \times flux
Write this relation with symbols exactly as in Power Plant Engineering — P.K. Nag before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
ηth≈33\eta_{th} \approx 33%
ηth≈33\eta_{th} \approx 33%
(Rankine cycle on secondary side)
Write this relation with symbols exactly as in Power Plant Engineering — P.K. Nag before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
Doserate∝activityr2Dose rate ∝ \frac{activity}{r^{2}}
Doserate∝activityr2Dose rate ∝ \frac{activity}{r^{2}}
(point source approximation)
Write this relation with symbols exactly as in Power Plant Engineering — P.K. Nag before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

Nuclear fission splits a heavy nucleus (U-235, Pu-239) when it absorbs a neutron, releasing energy from the small mass defect via E = mc² and emitting further neutrons that sustain a chain reaction.

Governing relations in practice

A moderator (water, heavy water, graphite) slows fast neutrons to thermal energies where fission probability is high; control rods (boron, cadmium) absorb neutrons to hold the reaction critical (k = 1) and adjust power. The coolant removes core heat.

Design and analysis considerations

The heat raises steam (directly in BWRs, via a steam generator in PWRs/PHWRs) that drives a Rankine steam-turbine cycle exactly as in a thermal plant — so the "nuclear" part only replaces the boiler's heat source.

Advanced theory and extensions

Key considerations are reactivity control, radiation shielding, spent-fuel management, and removing decay heat after shutdown (the cause of severe-accident risk). Enormous energy density (a small fuel mass yields huge energy) is the defining advantage examiners highlight.

Assumptions and validity limits

State assumptions explicitly before using any relation for nuclear plant basics — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Power Plant Engineering viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Power Plant Engineering papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to nuclear plant basics.
4. Use equation 1:
E=mc2E = mc^{2}
.
5. Use equation 2:
Thermal power P_{th} = ṁ_fuel \times energy_{per}_fission \times flux
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Nuclear Plant Basics appears in thermal and combined-cycle plants. In Indian mechanical curricula this topic is tested because it connects theory to steam and gas-based power generation.
GATE and semester exams often combine nuclear plant basics with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use nuclear plant basics?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Thinking the turbine/steam cycle differs fundamentally from a thermal plant (it is still Rankine)
• Confusing the moderator (slows neutrons) with control rods (absorb neutrons)
• Forgetting decay heat must be removed after shutdown
• Misapplying E = mc² to the whole fuel mass rather than the mass defect

Quick revision checklist

Before attempting nuclear plant basics problems, confirm you can:
1. PWR: pressurised water primary loop; BWR: direct steam generation
2. Control rods: absorb neutrons; moderator slows neutrons
3. Containment, redundancy, defence-in-depth safety
Revise the solved examples in Power Plant Engineering — P.K. Nag and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Energy from a mass defect

Problem

A fission reaction has a mass defect of 0.2 u (1 u = 1.66×10⁻²⁷ kg). Find the energy released (c = 3×10⁸ m/s).

Solution

Δm = 0.2 × 1.66e-27 = 3.32e-28 kg; E = Δmc² = 3.32e-28 × (3e8)² = 3.32e-28 × 9e16 = 2.99e-11 J (≈187 MeV).

Conceptual check — Nuclear Plant Basics

Problem

In a Power Plant Engineering semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of nuclear plant basics." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Nuclear Plant Basics, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    A nuclear plant releases energy by fission (E = mc² for the mass defect) to raise steam for a Rankine cycle. Reactor, coolant, moderator, and control rods form the core system, per power-plant texts.
  2. 2
    State the relation E = mc² and name each symbol.

    Model answer

    The governing relation is E=mc2E = mc^{2}. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation Thermal power P_th = ṁ_fuel × energy_per_fission × flux and name each symbol.

    Model answer

    The governing relation is Thermal power P_{th} = ṁ_fuel \times energy_{per}_fission \times flux. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation η_th ≈ 33% and name each symbol.

    Model answer

    The governing relation is ηth≈33\eta_{th} \approx 33%. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation Dose rate ∝ activity/r² and name each symbol.

    Model answer

    The governing relation is Doserate∝activityr2Dose rate ∝ \frac{activity}{r^{2}}. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: PWR: pressurised water primary loop; BWR: direct steam generation

    Model answer

    PWR: pressurised water primary loop; BWR: direct steam generation — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Control rods: absorb neutrons; moderator slows neutrons

    Model answer

    Control rods: absorb neutrons; moderator slows neutrons — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Containment, redundancy, defence-in-depth safety

    Model answer

    Containment, redundancy, defence-in-depth safety — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Thinking the turbine/steam cycle differs fundamentally from a thermal plant (it is still Rankine)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Confusing the moderator (slows neutrons) with control rods (absorb neutrons)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Forgetting decay heat must be removed after shutdown?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Misapplying E = mc² to the whole fuel mass rather than the mass defect?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    P.K. Nag Ch. nuclear — distinguish fission vs fusion energy release.
  • 2
    Avoid: Thinking the turbine/steam cycle differs fundamentally from a thermal plant (it is still Rankine)
  • 3
    Avoid: Confusing the moderator (slows neutrons) with control rods (absorb neutrons)
  • 4
    Avoid: Forgetting decay heat must be removed after shutdown

📖 Standard books (India)

  • Power Plant Engineering — P.K. Nag

    Read: Syllabus unit

    Steam, gas turbine, and plant economics
