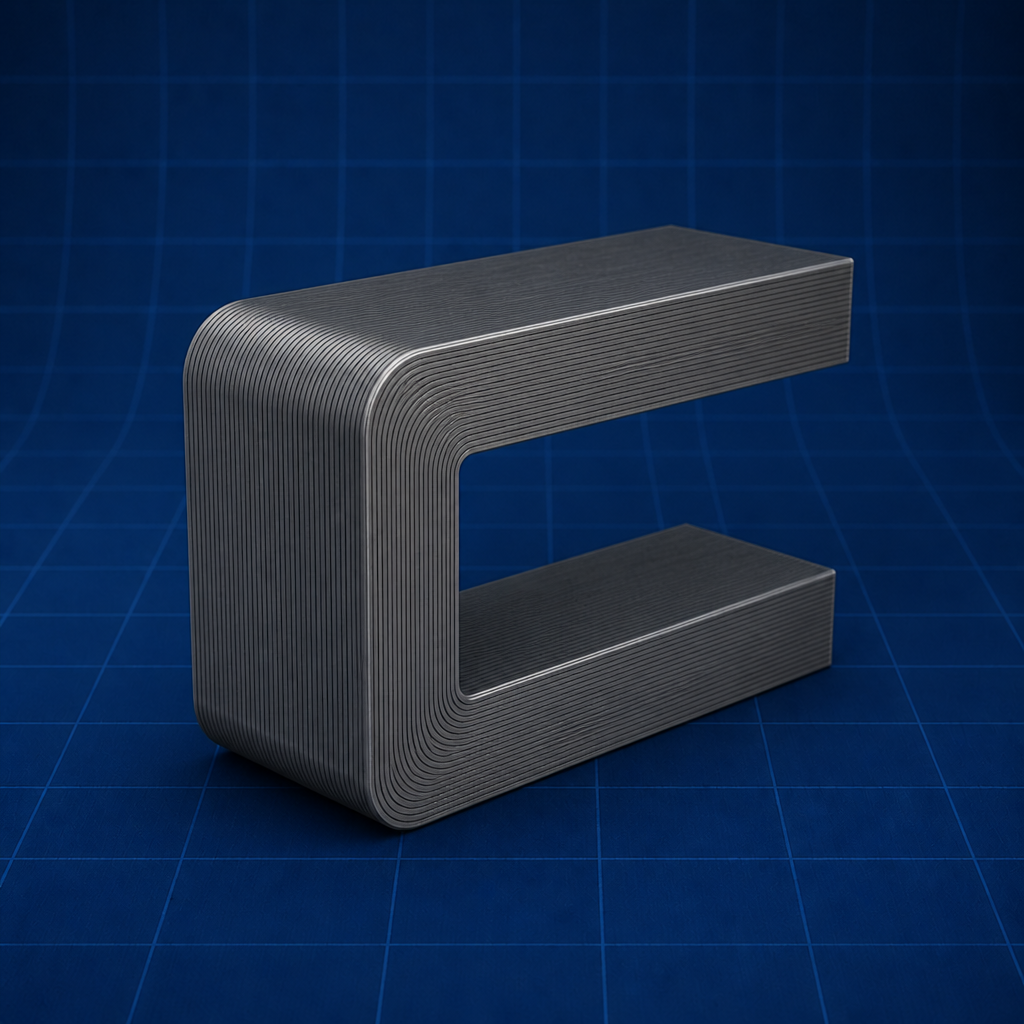

Magnetic Circuits

Before studying transformers or DC machines, you must be comfortable with magnetic circuits. In Indian B.Tech labs you measure B–H curves on a Epstein frame or similar; in exams you solve composite cores with multiple sections and air gaps.

Nagrath & Kothari treat the magnetic circuit exactly like a DC resistive network: MMF ℱ = NI replaces EMF, flux Φ replaces current, and reluctance R replaces resistance. The air gap — even a few millimetres in a large machine — often carries most of the MMF because μ_r for air ≈ 1 while steel may be 2000–5000.

(analogous to EMF = I R)

(magnetising force in uniform core)

• ℱ = NI = ΦR — the fundamental analogy. If you know two of flux, MMF, and reluctance, find the third.
• R = l/(μA) — longer path and smaller area increase reluctance; higher μ (good steel) reduces it.
• B = μH and Φ = BA — flux density times area gives total flux linking the coil.
• H = NI/l — average field intensity in a uniform section of length l.

When current flows in a coil with N turns, it produces MMF ℱ = NI ampere-turns. This drives magnetic flux Φ (weber) through the path. Reluctance R = l/(μA) opposes flux; low-permeability air gaps dominate in most practical cores.

Flux density B = Φ/A and field intensity H = MMF/l are linked by B = μH in linear region. Beyond the knee of the B–H curve, μ drops sharply — the core saturates and more current produces little extra flux.

For a series magnetic circuit (same Φ everywhere): ℱ_total = ℱ_iron + ℱ_air_gap. Calculate reluctance of each section separately, add MMF drops, and solve for Φ. Always check if saturation requires reading B and μ from the B–H curve rather than using constant μ_r.

State assumptions explicitly before using any relation for magnetic circuits — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.

Wrong assumptions invalidate the entire solution even when the formula is correct. In Electrical Machines I viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

1. Read the question and list given data with SI units (common in Electrical Machines I papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to magnetic circuits.
4. Use equation 1: .
5. Use equation 2: .
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Magnetic Circuits appears in substations, drives, and labs. In Indian electrical curricula this topic is tested because it connects theory to magnetic circuits, transformers, and DC machines.

GATE and semester exams often combine magnetic circuits with earlier units — revise prerequisites before attempting mixed problems.

Industry interview panels sometimes ask: "Where did you use magnetic circuits?" — answer with a lab, mini-project, or plant visit example if possible.

• Forgetting that air-gap reluctance often exceeds iron reluctance despite short length
• Using μ_r = 2000 without checking saturation from B = Φ/A
• Ignoring fringing at air gap — effective area is larger than physical gap area
• Mixing units: use m, A in m², μ_0 = 4π×10⁻⁷ H/m consistently

Before attempting magnetic circuits problems, confirm you can:

1. Series magnetic circuit: same flux Φ, MMFs add (like voltage drops)
2. Air gap dominates reluctance even if physically small
3. Fringing increases effective air-gap area — use Carter coefficient in machines
4. B–H curve is non-linear — knee region causes saturation

Revise the solved examples in Electrical Machines — Nagrath & Kothari and one previous-year GATE or university paper for this unit.
