Linear and Angular Measurement

Linear instruments (vernier, micrometer) resolve to their least count = main-scale division/number of vernier divisions; angular measurement uses sine bars and bevel protractors. Slip gauges provide length standards, per PN Rao.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

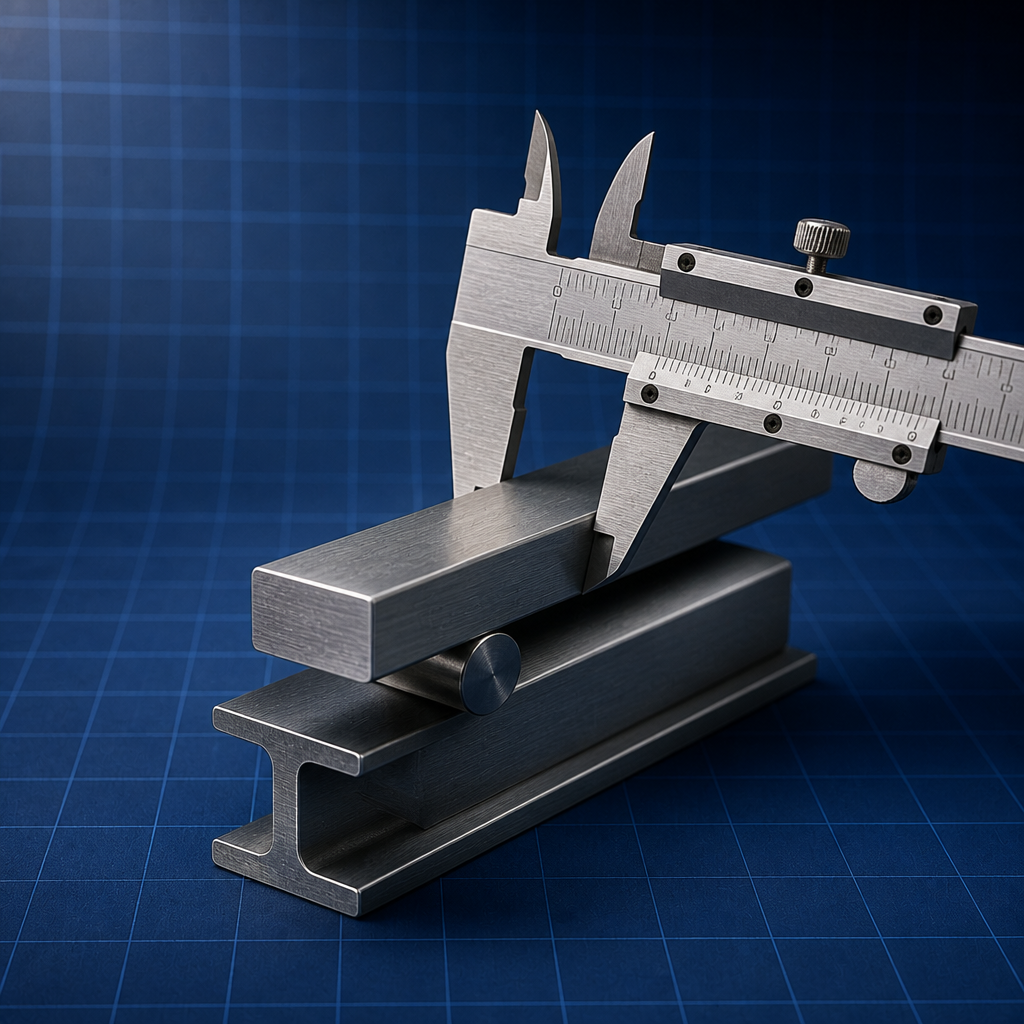

  • Vernier caliper: external, internal, depth jaws
  • Micrometer: 25 mm range, 0.01 mm LC standard
  • Autocollimator for small angle measurement (arcsec)

Topic details

Introduction

Linear and angular measurement covers the everyday instruments of the metrology lab. PN Rao explains verniers, micrometers, slip gauges, sine bars, and angle gauges, along with their least counts and sources of error.

Scope in B.Tech and GATE syllabus

The least count sets the smallest readable value; the vernier principle gains resolution by the slight difference between main and vernier scale divisions. Micrometers use a precision screw, reading to 0.01 mm or finer.

Why this topic matters in practice

Angular measurement without a direct angle scale uses the sine bar with slip gauges: sinθ = h/L. Understanding least-count calculation, slip-gauge stacking (wringing), and sine-bar setup is the exam content, often with a numerical on reading or angle.

Key relations & formulas

Formulas (Indian textbook notation)

  • Leastcount=mainscaleLCvernierdivisionsLeast count = main scale \frac{LC}{vernier} divisions
Vernierreading=MSR+Vernier reading = MSR +
(VSR × LC)
Sinebar:H=L⋅sinθSine bar: H = L\cdot sin \theta
(angle measurement)
Angle=arclengthradiusAngle = \frac{arc_{length}}{radius}
(radian measure)

Notation and sign conventions

Relation 1 —
Leastcount=mainscaleLCvernierdivisionsLeast count = main scale \frac{LC}{vernier} divisions

Formulas (Indian textbook notation)

  • Leastcount=mainscaleLCvernierdivisionsLeast count = main scale \frac{LC}{vernier} divisions
Write this relation with symbols exactly as in Engineering Metrology — IC Gupta before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Vernierreading=MSR+Vernier reading = MSR +
Vernierreading=MSR+Vernier reading = MSR +
(VSR × LC)
Write this relation with symbols exactly as in Engineering Metrology — IC Gupta before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
Sinebar:H=L⋅sinθSine bar: H = L\cdot sin \theta
Sinebar:H=L⋅sinθSine bar: H = L\cdot sin \theta
(angle measurement)
Write this relation with symbols exactly as in Engineering Metrology — IC Gupta before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
Angle=arclengthradiusAngle = \frac{arc_{length}}{radius}
Angle=arclengthradiusAngle = \frac{arc_{length}}{radius}
(radian measure)
Write this relation with symbols exactly as in Engineering Metrology — IC Gupta before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

The vernier scale resolves fractions of a main-scale division: least count = smallest main-scale division ÷ number of vernier divisions. Aligning the vernier line with a main-scale line gives the fractional reading.

Governing relations in practice

A micrometer uses a screw of known pitch; one thimble revolution advances the spindle by the pitch, and the thimble's circumferential divisions subdivide it — least count = pitch/thimble divisions. Ratchet stops ensure consistent measuring force.

Design and analysis considerations

Slip (gauge) blocks are length standards wrung together to build any dimension; wringing excludes air so the stack length is the sum of the blocks. They calibrate and set other instruments.

Advanced theory and extensions

The sine bar converts angle to length: raising one roller by height h over a base length L gives sinθ = h/L, with h built from slip gauges. Sine bars lose accuracy above ~45° because sine changes slowly there. These principles cover linear and angular metrology numericals.

Assumptions and validity limits

State assumptions explicitly before using any relation for linear and angular measurement — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Metrology viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Metrology papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to linear and angular measurement.
4. Use equation 1:
Leastcount=mainscaleLCvernierdivisionsLeast count = main scale \frac{LC}{vernier} divisions
.
5. Use equation 2:
Vernierreading=MSR+Vernier reading = MSR +
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Linear and Angular Measurement appears in inspection labs and production QC. In Indian mechanical curricula this topic is tested because it connects theory to measurement, tolerances, and quality control.
GATE and semester exams often combine linear and angular measurement with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use linear and angular measurement?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Wrong least-count calculation (dividing by the wrong number of divisions)
• Using tanθ instead of sinθ = h/L for a sine bar
• Forgetting measuring-force effects (not using the micrometer ratchet)
• Ignoring that sine bars are inaccurate at large angles

Quick revision checklist

Before attempting linear and angular measurement problems, confirm you can:
1. Vernier caliper: external, internal, depth jaws
2. Micrometer: 25 mm range, 0.01 mm LC standard
3. Autocollimator for small angle measurement (arcsec)
Revise the solved examples in Engineering Metrology — IC Gupta and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Sine-bar angle setting

Problem

A sine bar of length L = 200 mm is set with a slip-gauge stack of height h = 50 mm under one roller. Find the angle set.

Solution

sinθ = h/L = 50/200 = 0.25; θ = arcsin(0.25) = 14.48°.

Conceptual check — Linear and Angular Measurement

Problem

In a Metrology semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of linear and angular measurement." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Linear and Angular Measurement, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    Linear instruments (vernier, micrometer) resolve to their least count = main-scale division/number of vernier divisions; angular measurement uses sine bars and bevel protractors. Slip gauges provide length standards, per PN Rao.
  2. 2
    State the relation Least count = main scale LC / vernier divisions and name each symbol.

    Model answer

    The governing relation is Leastcount=mainscaleLCvernierdivisionsLeast count = main scale \frac{LC}{vernier} divisions. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation Vernier reading = MSR + and name each symbol.

    Model answer

    The governing relation is Vernierreading=MSR+Vernier reading = MSR +. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation Sine bar: H = L·sin θ and name each symbol.

    Model answer

    The governing relation is Sinebar:H=L⋅sinθSine bar: H = L\cdot sin \theta. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation Angle = arc_length / radius and name each symbol.

    Model answer

    The governing relation is Angle=arclengthradiusAngle = \frac{arc_{length}}{radius}. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Vernier caliper: external, internal, depth jaws

    Model answer

    Vernier caliper: external, internal, depth jaws — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Micrometer: 25 mm range, 0.01 mm LC standard

    Model answer

    Micrometer: 25 mm range, 0.01 mm LC standard — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Autocollimator for small angle measurement (arcsec)

    Model answer

    Autocollimator for small angle measurement (arcsec) — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Wrong least-count calculation (dividing by the wrong number of divisions)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Using tanθ instead of sinθ = h/L for a sine bar?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Forgetting measuring-force effects (not using the micrometer ratchet)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Ignoring that sine bars are inaccurate at large angles?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    IC Gupta Ch. 2 — zero error correction in vernier readings.
  • 2
    Avoid: Wrong least-count calculation (dividing by the wrong number of divisions)
  • 3
    Avoid: Using tanθ instead of sinθ = h/L for a sine bar
  • 4
    Avoid: Forgetting measuring-force effects (not using the micrometer ratchet)
