Kinematic Pairs and Mechanisms

The mobility of a planar linkage is found from Gruebler/Kutzbach: F = 3(n − 1) − 2j₁ − j₂, counting links n, lower pairs j₁ and higher pairs j₂. A mechanism needs F = 1 for constrained motion, as SS Rattan explains.
Exam tip: use ω in rad/s for dynamics formulas; N in rpm needs ω = 2πN/60. Do not confuse flywheel C_s with governor speed control.

Key formulas & points

Skim these first — then read the full notes below.

  • Lower pair: surface contact; higher pair: point/line contact
  • Inversion: fix different links to get different mechanisms (e.g. 4-bar)
  • Dead centre: crank-collinear with coupler — toggle position

Topic details

Introduction

This is the entry point of Theory of Machines in every Indian B.Tech syllabus: classify pairs, count degrees of freedom, and identify inversions. A lower pair has surface contact (turning, sliding, screw), a higher pair has point or line contact (cam, gear).

Scope in B.Tech and GATE syllabus

The Kutzbach criterion F = 3(L − 1) − 2j − h is applied first; SS Rattan warns that redundant or passive degrees of freedom (a roller that spins freely) must be subtracted, otherwise the count is wrong. The Grashof condition (s + l ≤ p + q) then decides whether a four-bar gives a crank-rocker, double-crank, or double-rocker.

Why this topic matters in practice

Inversions — fixing different links of the same kinematic chain — generate practical machines such as the beam engine, oscillating-cylinder engine, and Whitworth quick-return, which are standard drawing-and-explain questions.

Key relations & formulas

DOF(Gruebler)F=3(n−1)−2j1−j2DOF (Gruebler) F = 3(n - 1) - 2j_{1} - j_{2}
(planar mechanisms)
M=3(L−1)−2j−hM = 3(L - 1) - 2j - h
(Kutzbach, L links, j joints, h higher pairs)
v=ω×rv = \omega \times r
(velocity of point on link)
i=ωdriverωdriveni = \frac{\omega_{driver}}{\omega_{driven}}
(velocity ratio)

Notation and sign conventions

Relation 1 —
DOFDOF
DOF(Gruebler)F=3(n−1)−2j1−j2DOF (Gruebler) F = 3(n - 1) - 2j_{1} - j_{2}
(planar mechanisms)
Write this relation with symbols exactly as in SS Rattan — Theory of Machines before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
M=3M = 3
M=3(L−1)−2j−hM = 3(L - 1) - 2j - h
(Kutzbach, L links, j joints, h higher pairs)
Write this relation with symbols exactly as in SS Rattan — Theory of Machines before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
v=ω×rv = \omega \times r
v=ω×rv = \omega \times r
(velocity of point on link)
Write this relation with symbols exactly as in SS Rattan — Theory of Machines before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
i=ωdriverωdriveni = \frac{\omega_{driver}}{\omega_{driven}}
i=ωdriverωdriveni = \frac{\omega_{driver}}{\omega_{driven}}
(velocity ratio)
Write this relation with symbols exactly as in SS Rattan — Theory of Machines before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

Each unconstrained planar rigid body has three degrees of freedom. Connecting bodies with joints removes freedoms: a lower (single-DOF) pair removes two, a higher pair removes one. Summing over a chain gives Kutzbach's F = 3(n − 1) − 2j₁ − j₂.

Governing relations in practice

F = 0 means a structure (no motion), F = 1 means a constrained mechanism driven by one input, and F ≥ 2 needs multiple inputs (e.g. a robot arm). Verifying F before any velocity analysis is the disciplined first step.

Design and analysis considerations

The Grashof criterion classifies four-bar behaviour: if the shortest plus longest link ≤ the other two, at least one link fully rotates. This determines whether an input crank can make complete revolutions.

Advanced theory and extensions

Inversion keeps the relative motion of links unchanged while grounding a different link, producing new machines from one chain. Dead-centre positions occur when crank and coupler are collinear; a flywheel or offset carries the mechanism through them. These ideas underpin the whole subject.

Assumptions and validity limits

State assumptions explicitly before using any relation for kinematic pairs and mechanisms — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Theory of Machines viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Theory of Machines papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to kinematic pairs and mechanisms.
4. Use equation 1:
DOFDOF
.
5. Use equation 2:
M=3M = 3
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Kinematic Pairs and Mechanisms appears in linkages, cams, gear trains, and governors. In Indian mechanical curricula this topic is tested because it connects theory to kinematics and kinetics of mechanisms.
GATE and semester exams often combine kinematic pairs and mechanisms with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use kinematic pairs and mechanisms?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Counting a ternary joint as one pair instead of the correct number of connections
• Forgetting to subtract redundant/passive degrees of freedom (idle rollers)
• Applying the Grashof rule with the wrong identification of shortest and longest links
• Confusing higher pairs (h, one constraint) with lower pairs (j₁, two constraints)

Quick revision checklist

Before attempting kinematic pairs and mechanisms problems, confirm you can:
1. Lower pair: surface contact; higher pair: point/line contact
2. Inversion: fix different links to get different mechanisms (e.g. 4-bar)
3. Dead centre: crank-collinear with coupler — toggle position
Revise the solved examples in SS Rattan — Theory of Machines and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Degrees of freedom of a four-bar

Problem

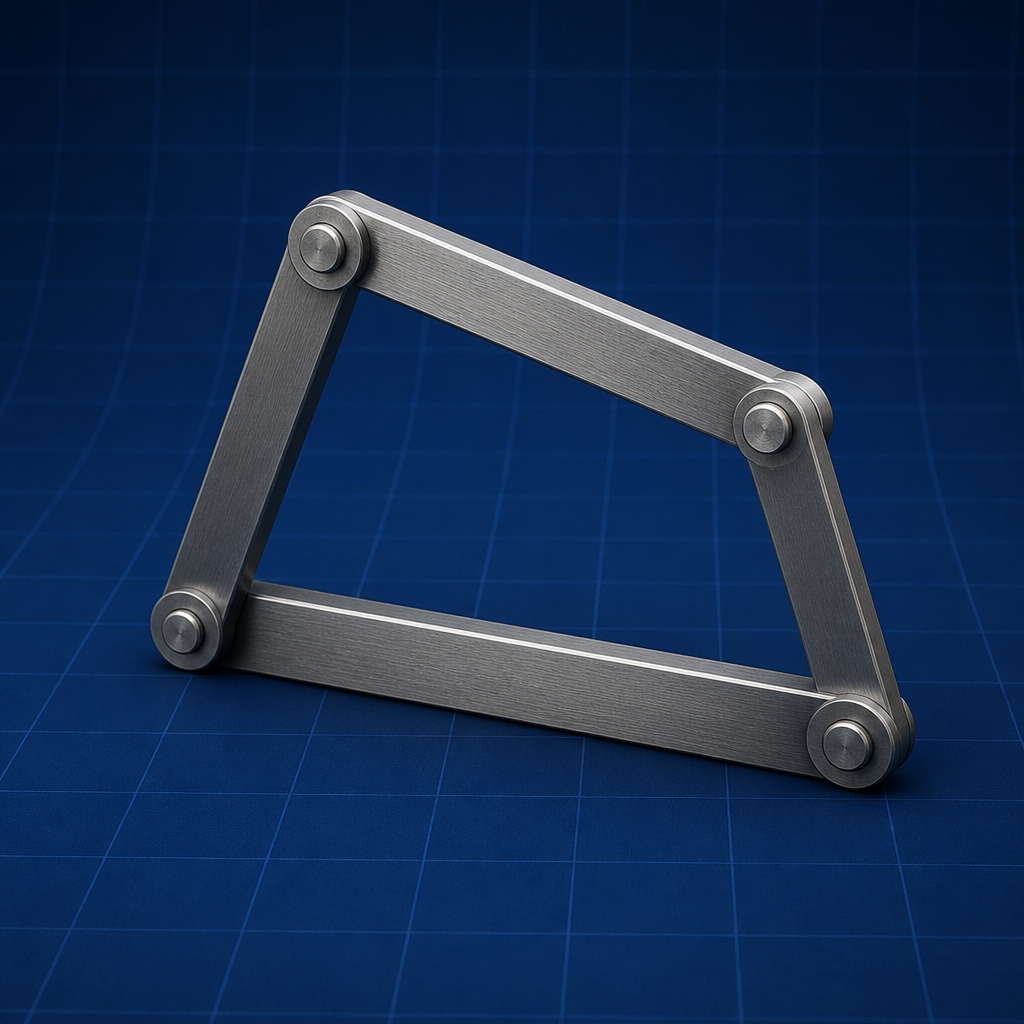

A planar four-bar mechanism has 4 links and 4 turning (lower) pairs, no higher pairs. Find its degrees of freedom.

Solution

F = 3(n − 1) − 2j₁ − j₂ = 3(4 − 1) − 2(4) − 0 = 9 − 8 = 1 → single input gives constrained motion.

Conceptual check — Kinematic Pairs and Mechanisms

Problem

In a Theory of Machines semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of kinematic pairs and mechanisms." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Kinematic Pairs and Mechanisms, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    The mobility of a planar linkage is found from Gruebler/Kutzbach: F = 3(n − 1) − 2j₁ − j₂, counting links n, lower pairs j₁ and higher pairs j₂. A mechanism needs F = 1 for constrained motion, as SS Rattan explains.
  2. 2
    State the relation DOF and name each symbol.

    Model answer

    The governing relation is DOFDOF. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation M = 3 and name each symbol.

    Model answer

    The governing relation is M=3M = 3. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation v = ω × r and name each symbol.

    Model answer

    The governing relation is v=ω×rv = \omega \times r. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation i = ω_driver / ω_driven and name each symbol.

    Model answer

    The governing relation is i=ωdriverωdriveni = \frac{\omega_{driver}}{\omega_{driven}}. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Lower pair: surface contact; higher pair: point/line contact

    Model answer

    Lower pair: surface contact; higher pair: point/line contact — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Inversion: fix different links to get different mechanisms (e.g. 4-bar)

    Model answer

    Inversion: fix different links to get different mechanisms (e.g. 4-bar) — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Dead centre: crank-collinear with coupler — toggle position

    Model answer

    Dead centre: crank-collinear with coupler — toggle position — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Counting a ternary joint as one pair instead of the correct number of connections?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Forgetting to subtract redundant/passive degrees of freedom (idle rollers)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Applying the Grashof rule with the wrong identification of shortest and longest links?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Confusing higher pairs (h, one constraint) with lower pairs (j₁, two constraints)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    SS Rattan Ch. 1–2 — always verify DOF before analysis.
  • 2
    Avoid: Counting a ternary joint as one pair instead of the correct number of connections
  • 3
    Avoid: Forgetting to subtract redundant/passive degrees of freedom (idle rollers)
  • 4
    Avoid: Applying the Grashof rule with the wrong identification of shortest and longest links

📖 Standard books (India)

  • Theory of Machines — SS Rattan

    Read: Ch. 1–4

    Kinematics, cams, governors, and balancing
