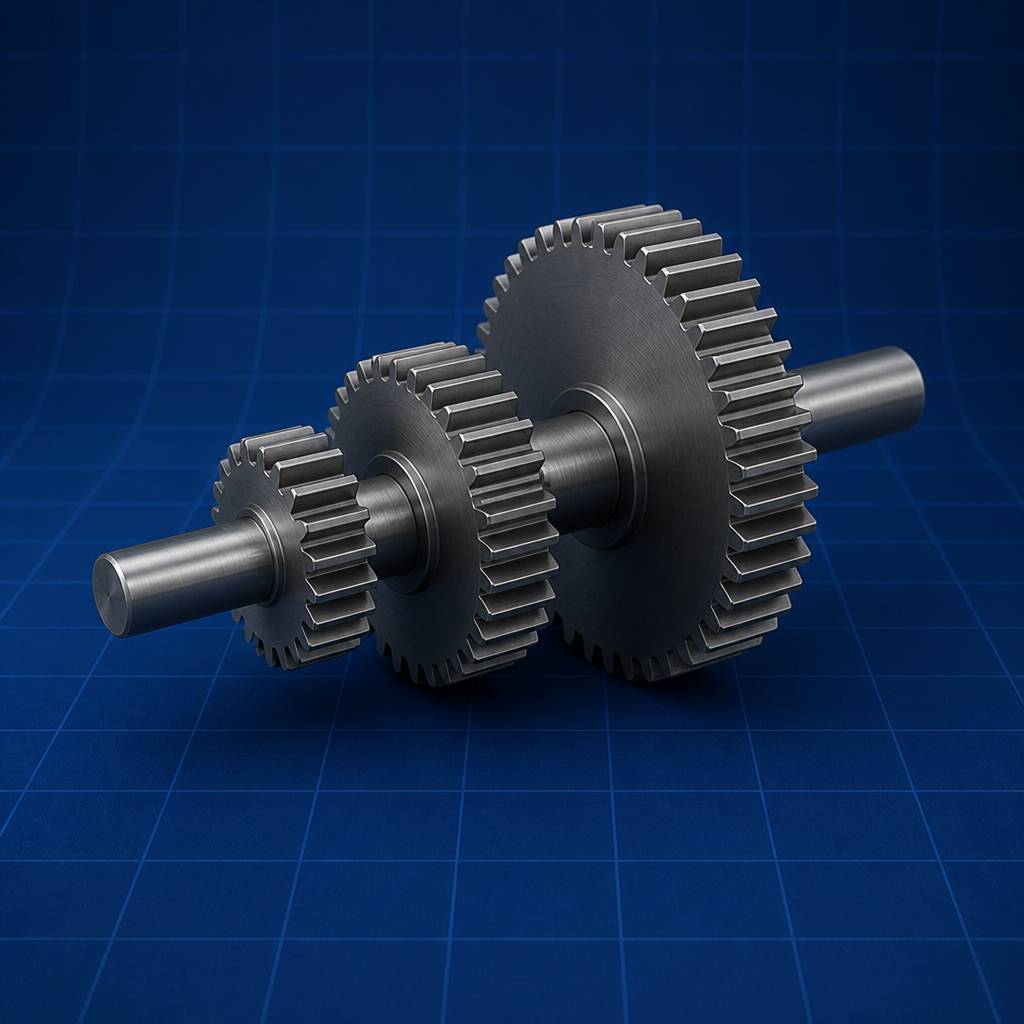

Gear Trains

For a simple pair the speed ratio is N_A/N_B = T_B/T_A; a compound train multiplies the ratios of each mesh. Epicyclic trains are solved by the tabular method because the arm rotation superposes on gear rotation, as SS Rattan shows.
Exam tip: use ω in rad/s for dynamics formulas; N in rpm needs ω = 2πN/60. Do not confuse flywheel C_s with governor speed control.

Key formulas & points

Skim these first — then read the full notes below.

  • Epicyclic gear: fix arm, sun, or ring to get different ratios
  • Reverted gear train: input and output shafts coaxial
  • Module m = d/T (mm) — standard Indian practice

Topic details

Introduction

Gear-train problems are guaranteed marks in Indian TOM and GATE papers. Simple and compound trains are direct ratio calculations, but epicyclic (planetary) trains — where a gear axis itself moves on a rotating arm — require the tabular or algebraic method.

Scope in B.Tech and GATE syllabus

SS Rattan's tabular method adds two rows: first give every gear the arm's rotation (+1 to the arm, +1 to all gears rotating bodily), then hold the arm fixed and rotate the train. Superposing the rows and applying the given constraints (one member fixed or driven) yields the output speed.

Why this topic matters in practice

Reverted trains, where input and output are coaxial (as in a lathe headstock or clock), add the centre-distance constraint m₁(T₁+T₂) = m₂(T₃+T₄). Recognising the train type before calculating avoids the most common source of error.

Key relations & formulas

NANB=TBTA=dBdA\frac{N_{A}}{N_{B}} = \frac{T_{B}}{T_{A}} = \frac{d_{B}}{d_{A}}
(simple gear pair)

Formulas (Indian textbook notation)

  • Trainvalue=productofdriventeethproductofdrivingteethTrain value = product of driven \frac{teeth}{product} of driving teeth
ωout=ωin(Tout/Tin)\omega_{out} = \frac{\omega_{in}}{(T_{out}/T_{in})}
(epicyclic: use tabular or formula method)

Formulas (Indian textbook notation)

  • Centredistancea=(d1+d2)2=m(T1+T2)2Centre distance a = \frac{(d_{1} + d_{2})}{2} = m\frac{(T_{1} + T_{2})}{2}

Notation and sign conventions

Relation 1 —
NANB=TBTA=dBdA\frac{N_{A}}{N_{B}} = \frac{T_{B}}{T_{A}} = \frac{d_{B}}{d_{A}}
NANB=TBTA=dBdA\frac{N_{A}}{N_{B}} = \frac{T_{B}}{T_{A}} = \frac{d_{B}}{d_{A}}
(simple gear pair)
Write this relation with symbols exactly as in SS Rattan — Theory of Machines before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Trainvalue=productofdriventeethproductofdrivingteethTrain value = product of driven \frac{teeth}{product} of driving teeth

Formulas (Indian textbook notation)

  • Trainvalue=productofdriventeethproductofdrivingteethTrain value = product of driven \frac{teeth}{product} of driving teeth
Write this relation with symbols exactly as in SS Rattan — Theory of Machines before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
ωout=ωin/\omega_{out} = \omega_{in} /
ωout=ωin(Tout/Tin)\omega_{out} = \frac{\omega_{in}}{(T_{out}/T_{in})}
(epicyclic: use tabular or formula method)
Write this relation with symbols exactly as in SS Rattan — Theory of Machines before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
Centredistancea=Centre distance a =

Formulas (Indian textbook notation)

  • Centredistancea=(d1+d2)2=m(T1+T2)2Centre distance a = \frac{(d_{1} + d_{2})}{2} = m\frac{(T_{1} + T_{2})}{2}
Write this relation with symbols exactly as in SS Rattan — Theory of Machines before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

In a meshing pair, pitch-line velocities are equal, so N·T is conserved: N_A/N_B = T_B/T_A = d_B/d_A. The negative sign for external gears (opposite rotation) matters in trains where direction is asked.

Governing relations in practice

The train value = (product of driving teeth)/(product of driven teeth) for the whole chain; idler gears change direction but not magnitude of the ratio. Module m = d/T is common to meshing gears, fixing the centre distance a = m(T₁ + T₂)/2.

Design and analysis considerations

Epicyclic trains defeat the simple ratio because the planet's carrier (arm) rotates. The relative-velocity idea "gear speed = arm speed + speed relative to arm" is captured in the tabular method, which mechanically handles the superposition.

Advanced theory and extensions

Torque and speed trade off inversely (ignoring losses): a high reduction ratio multiplies torque by the same factor. Holding the ring, sun, or arm of one epicyclic set gives different ratios — the basis of automatic transmissions, a good applied point for viva answers.

Assumptions and validity limits

State assumptions explicitly before using any relation for gear trains — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Theory of Machines viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Theory of Machines papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to gear trains.
4. Use equation 1:
NANB=TBTA=dBdA\frac{N_{A}}{N_{B}} = \frac{T_{B}}{T_{A}} = \frac{d_{B}}{d_{A}}
.
5. Use equation 2:
Trainvalue=productofdriventeethproductofdrivingteethTrain value = product of driven \frac{teeth}{product} of driving teeth
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Gear Trains appears in linkages, cams, gear trains, and governors. In Indian mechanical curricula this topic is tested because it connects theory to kinematics and kinetics of mechanisms.
GATE and semester exams often combine gear trains with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use gear trains?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Treating an epicyclic train as a simple train and ignoring the arm's rotation
• Sign errors: forgetting external meshes reverse direction while internal (annulus) meshes do not
• Counting idler gears as changing the ratio magnitude (they only change direction)
• Forgetting the centre-distance constraint in a reverted gear train

Quick revision checklist

Before attempting gear trains problems, confirm you can:
1. Epicyclic gear: fix arm, sun, or ring to get different ratios
2. Reverted gear train: input and output shafts coaxial
3. Module m = d/T (mm) — standard Indian practice
Revise the solved examples in SS Rattan — Theory of Machines and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Compound gear-train ratio

Problem

A compound train has gears with teeth 20 (driver) meshing 60, on the same shaft 25 meshing 75 (output). Find the overall speed ratio N_in/N_out.

Solution

Train value = (60/20)×(75/25) = 3×3 = 9, so N_in/N_out = 9 — the output turns nine times slower with nine-fold torque gain.

Conceptual check — Gear Trains

Problem

In a Theory of Machines semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of gear trains." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Gear Trains, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    For a simple pair the speed ratio is N_A/N_B = T_B/T_A; a compound train multiplies the ratios of each mesh. Epicyclic trains are solved by the tabular method because the arm rotation superposes on gear rotation, as SS Rattan shows.
  2. 2
    State the relation N_A/N_B = T_B/T_A = d_B/d_A and name each symbol.

    Model answer

    The governing relation is NANB=TBTA=dBdA\frac{N_{A}}{N_{B}} = \frac{T_{B}}{T_{A}} = \frac{d_{B}}{d_{A}}. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation Train value = product of driven teeth / product of driving teeth and name each symbol.

    Model answer

    The governing relation is Trainvalue=productofdriventeethproductofdrivingteethTrain value = product of driven \frac{teeth}{product} of driving teeth. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation ω_out = ω_in / and name each symbol.

    Model answer

    The governing relation is ωout=ωin/\omega_{out} = \omega_{in} /. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation Centre distance a = and name each symbol.

    Model answer

    The governing relation is Centredistancea=Centre distance a =. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Epicyclic gear: fix arm, sun, or ring to get different ratios

    Model answer

    Epicyclic gear: fix arm, sun, or ring to get different ratios — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Reverted gear train: input and output shafts coaxial

    Model answer

    Reverted gear train: input and output shafts coaxial — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Module m = d/T (mm) — standard Indian practice

    Model answer

    Module m = d/T (mm) — standard Indian practice — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Treating an epicyclic train as a simple train and ignoring the arm's rotation?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Sign errors: forgetting external meshes reverse direction while internal (annulus) meshes do not?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Counting idler gears as changing the ratio magnitude (they only change direction)?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Forgetting the centre-distance constraint in a reverted gear train?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    SS Rattan Ch. 9 — tabular method for epicyclic trains avoids sign errors.
  • 2
    Avoid: Treating an epicyclic train as a simple train and ignoring the arm's rotation
  • 3
    Avoid: Sign errors: forgetting external meshes reverse direction while internal (annulus) meshes do not
  • 4
    Avoid: Counting idler gears as changing the ratio magnitude (they only change direction)

📖 Standard books (India)

  • Theory of Machines — SS Rattan

    Read: Syllabus unit

    Kinematics, cams, governors, and balancing
