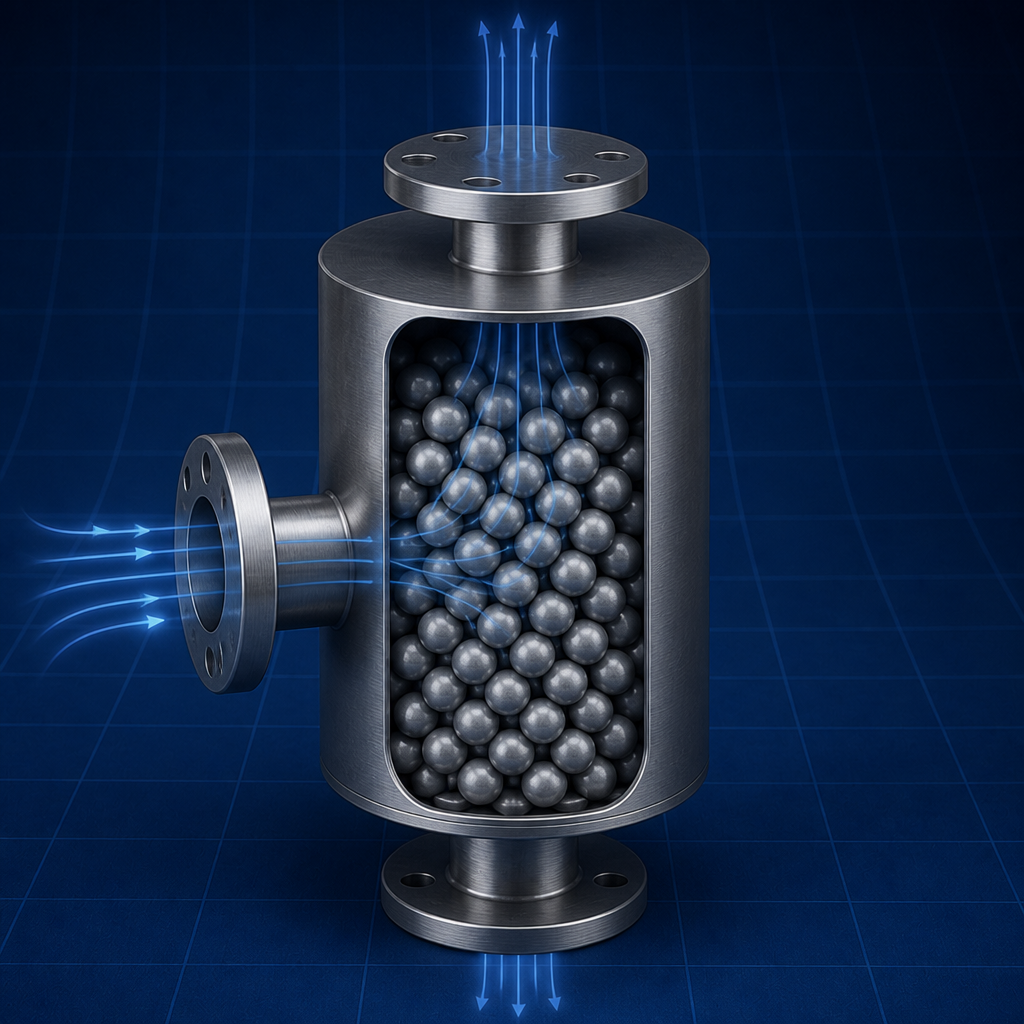

Flow Through Packed Beds

Pressure drop through a packed bed is given by the Ergun equation, which sums a viscous term (dominant at low flow) and an inertial term (dominant at high flow), both strongly dependent on void fraction ε and particle size d_p.

Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

First (viscous) term dominates at low Re; second (inertial) at high Re
Void fraction ε typically 0.35–0.45 for random packing
Applies to fixed beds, not the fluidized state

Topic details

Introduction

This McCabe-Smith topic models flow through catalyst beds, filters and adsorbers. You compute the superficial velocity from volumetric flow and bed cross-section, then apply the Ergun equation, checking which of its two terms dominates by estimating the particle Reynolds number. The void fraction and particle diameter are the sensitive inputs.

Key relations & formulas

\frac{\Delta P}{L} = 150 \mu V_{s} (1-\varepsilon)\frac{^{2}}{(d_{p}^{2} \varepsilon^{3})} + 1.75 \rho V_{s}^{2} \frac{(1-\varepsilon)}{(d_{p} \varepsilon^{3})}

(Ergun)

V_{s} = \frac{Q}{A_{bed}}

(superficial velocity)

Formulas (Indian textbook notation)

$\varepsilon = void fraction; d_{p} = particle diameter$

Notation and sign conventions

Relation 1 —

\frac{\Delta P}{L} = 150 \mu V_{s}

\frac{\Delta P}{L} = 150 \mu V_{s} (1-\varepsilon)\frac{^{2}}{(d_{p}^{2} \varepsilon^{3})} + 1.75 \rho V_{s}^{2} \frac{(1-\varepsilon)}{(d_{p} \varepsilon^{3})}

(Ergun)

Write this relation with symbols exactly as in Unit Operations of Chemical Engineering — McCabe, Smith & Harriott before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 2 —

V_{s} = \frac{Q}{A_{bed}}

V_{s} = \frac{Q}{A_{bed}}

(superficial velocity)

Relation 3 —

\varepsilon = void fraction; d_{p} = particle diameter

Formulas (Indian textbook notation)

$\varepsilon = void fraction; d_{p} = particle diameter$

Concept in depth

A packed bed is a tortuous network of channels, so pressure drop combines viscous drag along channel walls (the Blake-Kozeny viscous term, ∝ velocity) with inertial losses at each expansion and contraction (the Burke-Plummer term, ∝ velocity²). The Ergun equation blends both, valid across the whole flow range. The ε³ in the denominator makes pressure drop extremely sensitive to packing density: a small drop in voidage sharply raises ΔP, which is why fouling or settling of a bed can choke a reactor. Smaller particles improve contacting but pay a heavy pressure-drop penalty through the d_p² term.

Assumptions and validity limits

State assumptions explicitly before using any relation for flow through packed beds — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.

Wrong assumptions invalidate the entire solution even when the formula is correct. In Momentum Transfer viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Momentum Transfer papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to flow through packed beds.
4. Use equation 1:

\frac{\Delta P}{L} = 150 \mu V_{s}

.
5. Use equation 2:

V_{s} = \frac{Q}{A_{bed}}

.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Flow Through Packed Beds appears in pipes, packed beds, and pumps. In Indian chemical curricula this topic is tested because it connects theory to fluid flow in process equipment.

GATE and semester exams often combine flow through packed beds with earlier units — revise prerequisites before attempting mixed problems.

Industry interview panels sometimes ask: "Where did you use flow through packed beds?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

Students use interstitial instead of superficial velocity, mis-cube the void fraction, and drop one Ergun term when both matter at intermediate Reynolds number. Applying Ergun to a bed that is actually fluidized (where ΔP is fixed) is a conceptual error.

Quick revision checklist

Before attempting flow through packed beds problems, confirm you can:

1. First (viscous) term dominates at low Re; second (inertial) at high Re
2. Void fraction ε typically 0.35–0.45 for random packing
3. Applies to fixed beds, not the fluidized state

Revise the solved examples in Unit Operations of Chemical Engineering — McCabe, Smith & Harriott and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Dominant Ergun term

Problem

For air through 3 mm particles at low superficial velocity giving particle Re ≈ 5, which Ergun term dominates?

Solution

At Re_p ≈ 5 (< ~10) the flow is viscous-dominated, so the first (Blake-Kozeny) term controls; the inertial term is negligible and ΔP scales linearly with velocity.

Conceptual check — Flow Through Packed Beds

Problem

In a Momentum Transfer semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of flow through packed beds." What should a complete answer include?

Exams & GATE

Check laminar vs turbulent contribution in Ergun — GATE numerical favourite.
