Flight Instrumentation

Flight instruments convert pressure, inertial, and magnetic sensing into pilot-ready speed, altitude, attitude, and heading information.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • Six-pack: ASI, altimeter, VSI, attitude, heading, turn coordinator

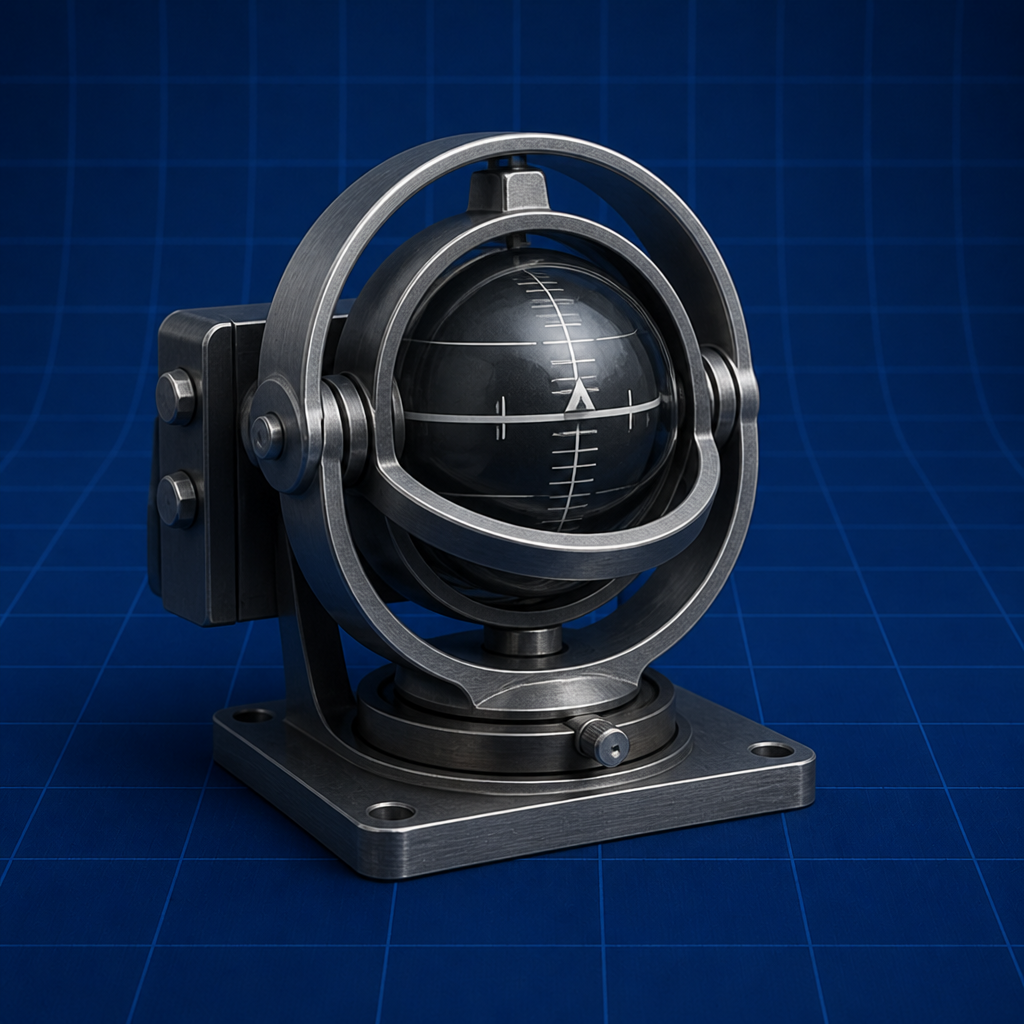

  • Gyroscopic instruments: rigidity in space and precession
  • EFIS replaces mechanical gauges with integrated digital display

Topic details

Introduction

Typical exam questions involve Pitot-static relations, IAS versus TAS correction ideas, and altimeter-setting interpretation.

Key relations & formulas

VIAS≈VTASρρ0V_{IAS} \approx V_{TAS} \sqrt{\frac{\rho}{\rho_{0}}}
(indicated vs true airspeed, compressibility correction separate)
Pstatic+12ρV2=PtotalP_{static} + \frac{1}{2} \rho V^{2} = P_{total}
(Pitot-static, incompressible)
hpressure=(T0L)[1−(PP0)(RLg)]h_{pressure} = (\frac{T_{0}}{L}) [1 - (\frac{P}{P_{0}})^(R \frac{L}{g})]
(pressure altitude in troposphere model)

Notation and sign conventions

Relation 1 —
VIAS≈VTAS√V_{IAS} \approx V_{TAS} √
VIAS≈VTASρρ0V_{IAS} \approx V_{TAS} \sqrt{\frac{\rho}{\rho_{0}}}
(indicated vs true airspeed, compressibility correction separate)
Write this relation with symbols exactly as in Pallet Avionics — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Pstatic+12ρV2=PtotalP_{static} + \frac{1}{2} \rho V^{2} = P_{total}
Pstatic+12ρV2=PtotalP_{static} + \frac{1}{2} \rho V^{2} = P_{total}
(Pitot-static, incompressible)
Write this relation with symbols exactly as in Pallet Avionics — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
hpressure=h_{pressure} =
hpressure=(T0L)[1−(PP0)(RLg)]h_{pressure} = (\frac{T_{0}}{L}) [1 - (\frac{P}{P_{0}})^(R \frac{L}{g})]
(pressure altitude in troposphere model)
Write this relation with symbols exactly as in Pallet Avionics — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Concept in depth

Classical instruments rely on mechanical principles while modern EFIS fuses sensor data digitally with fault flags. Understanding pressure-based measurement limitations is essential for safe operations.

Assumptions and validity limits

State assumptions explicitly before using any relation for flight instrumentation — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Avionics viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Avionics papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to flight instrumentation.
4. Use equation 1:
VIAS≈VTAS√V_{IAS} \approx V_{TAS} √
.
5. Use equation 2:
Pstatic+12ρV2=PtotalP_{static} + \frac{1}{2} \rho V^{2} = P_{total}
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Flight Instrumentation appears in flight decks and UAV payloads. In Indian aerospace curricula this topic is tested because it connects theory to aircraft electronics and navigation.
GATE and semester exams often combine flight instrumentation with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use flight instrumentation?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

Students commonly forget density correction and directly equate IAS with TAS at non-sea-level conditions.

Quick revision checklist

Before attempting flight instrumentation problems, confirm you can:
1. Six-pack: ASI, altimeter, VSI, attitude, heading, turn coordinator
2. Gyroscopic instruments: rigidity in space and precession
3. EFIS replaces mechanical gauges with integrated digital display
Revise the solved examples in Pallet Avionics — Standard reference and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Dynamic pressure from Pitot readings

Problem

If total pressure is 78 kPa and static pressure is 70 kPa, with air density 1.0 kg/m^3, estimate airspeed.

Solution

q = Pt - Ps = 8 kPa = 8000 Pa. V = sqrt(2q/rho) = sqrt(16000) = 126.5 m/s.

Conceptual check — Flight Instrumentation

Problem

In a Avionics semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of flight instrumentation." What should a complete answer include?

Exams & GATE

Pallet — altimeter setting QNH vs QFE vs standard 1013 hPa.
