Driveline Vibrations

Driveline vibration analysis prevents resonance, boom, and durability failures in shafts and joints.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

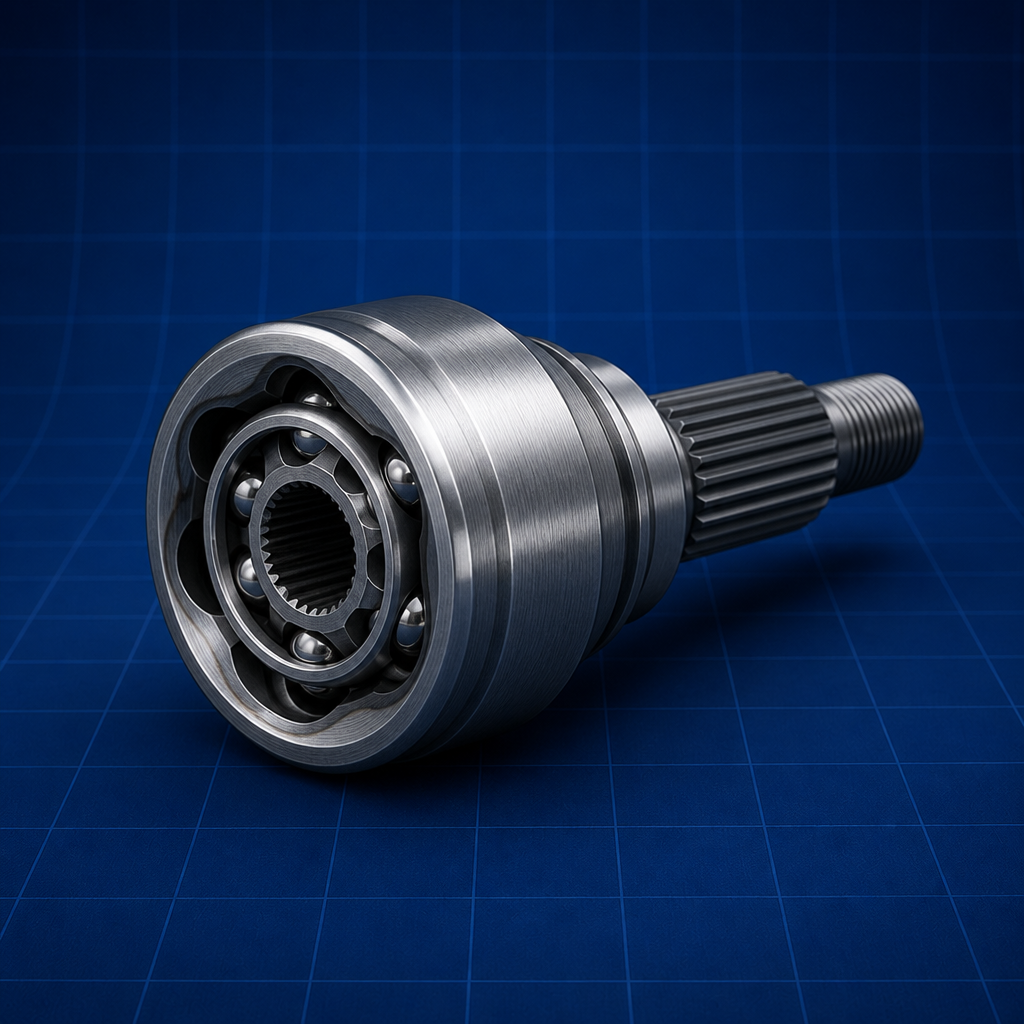

  • Half-shaft CV joints accommodate suspension travel
  • Torsional damper on clutch/flywheel
  • NVH tuning isolators and balance shafts

Topic details

Introduction

Gillespie and NVH-focused OEM practice treat torsional modes as a key calibration and design checkpoint. B.Tech exam answers should connect excitation source, transfer path, and response rather than listing components only.

Key relations & formulas

Formulas (Indian textbook notation)

  • naturalfrequencyf=(12π)ktorsionJnatural frequency f = (\frac{1}{2\pi})\sqrt{\frac{k_{torsion}}{J}}

Formulas (Indian textbook notation)

  • criticalspeedwhenexcitation=drivelinefncritical speed when excitation = driveline f_{n}

Formulas (Indian textbook notation)

  • unbalanceforceF=meω2unbalance force F = m e \omega^{2}

Notation and sign conventions

Relation 1 —
naturalfrequencyf=natural frequency f =

Formulas (Indian textbook notation)

  • naturalfrequencyf=(12π)ktorsionJnatural frequency f = (\frac{1}{2\pi})\sqrt{\frac{k_{torsion}}{J}}
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
criticalspeedwhenexcitation=drivelinefncritical speed when excitation = driveline f_{n}

Formulas (Indian textbook notation)

  • criticalspeedwhenexcitation=drivelinefncritical speed when excitation = driveline f_{n}
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
unbalanceforceF=meω2unbalance force F = m e \omega^{2}

Formulas (Indian textbook notation)

  • unbalanceforceF=meω2unbalance force F = m e \omega^{2}
Write this relation with symbols exactly as in Automobile Engineering — Kirpal Singh before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Concept in depth

When engine-order excitation aligns with driveline natural frequency, torque oscillation amplifies and may cause shudder or gear rattle. Unbalance forces scale with omega squared, so small eccentricity can generate large high-speed vibration if balancing and mounting are not controlled.

Assumptions and validity limits

State assumptions explicitly before using any relation for driveline vibrations — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Transmission Systems viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Transmission Systems papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to driveline vibrations.
4. Use equation 1:
naturalfrequencyf=natural frequency f =
.
5. Use equation 2:
criticalspeedwhenexcitation=drivelinefncritical speed when excitation = driveline f_{n}
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Driveline Vibrations appears in passenger and commercial vehicles. In Indian automotive curricula this topic is tested because it connects theory to clutch, gearbox, and differential.
GATE and semester exams often combine driveline vibrations with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use driveline vibrations?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

Students often confuse rotational critical speed with torsional natural frequency and apply wrong formulas. Another error is ignoring damping when discussing resonance severity.

Quick revision checklist

Before attempting driveline vibrations problems, confirm you can:
1. Half-shaft CV joints accommodate suspension travel
2. Torsional damper on clutch/flywheel
3. NVH tuning isolators and balance shafts
Revise the solved examples in Automobile Engineering — Kirpal Singh and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Torsional natural frequency

Problem

Given torsional stiffness k = 12000 N.m/rad and inertia J = 0.8 kg.m^2, estimate natural frequency.

Solution

f = (1/2*pi)*sqrt(k/J) = 0.159*sqrt(12000/0.8) = 0.159*122.47 ≈ 19.5 Hz.

Conceptual check — Driveline Vibrations

Problem

In a Transmission Systems semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of driveline vibrations." What should a complete answer include?

📖 Standard books (India)

  • Automobile Engineering — Kirpal Singh

    Read: Syllabus unit

    Vehicle layout, transmission, and engines
