Diode Circuits

Diode circuits are analysed piecewise using the ideal/constant-drop model: a full-wave rectifier gives V_dc = 2V_m/π, and a Zener diode holds a constant voltage for regulation once above its knee current.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • Clippers, clampers, rectifiers — piecewise linear analysis
  • Peak detector and envelope detector applications
  • LED, photodiode, varactor special-purpose diodes

Topic details

Introduction

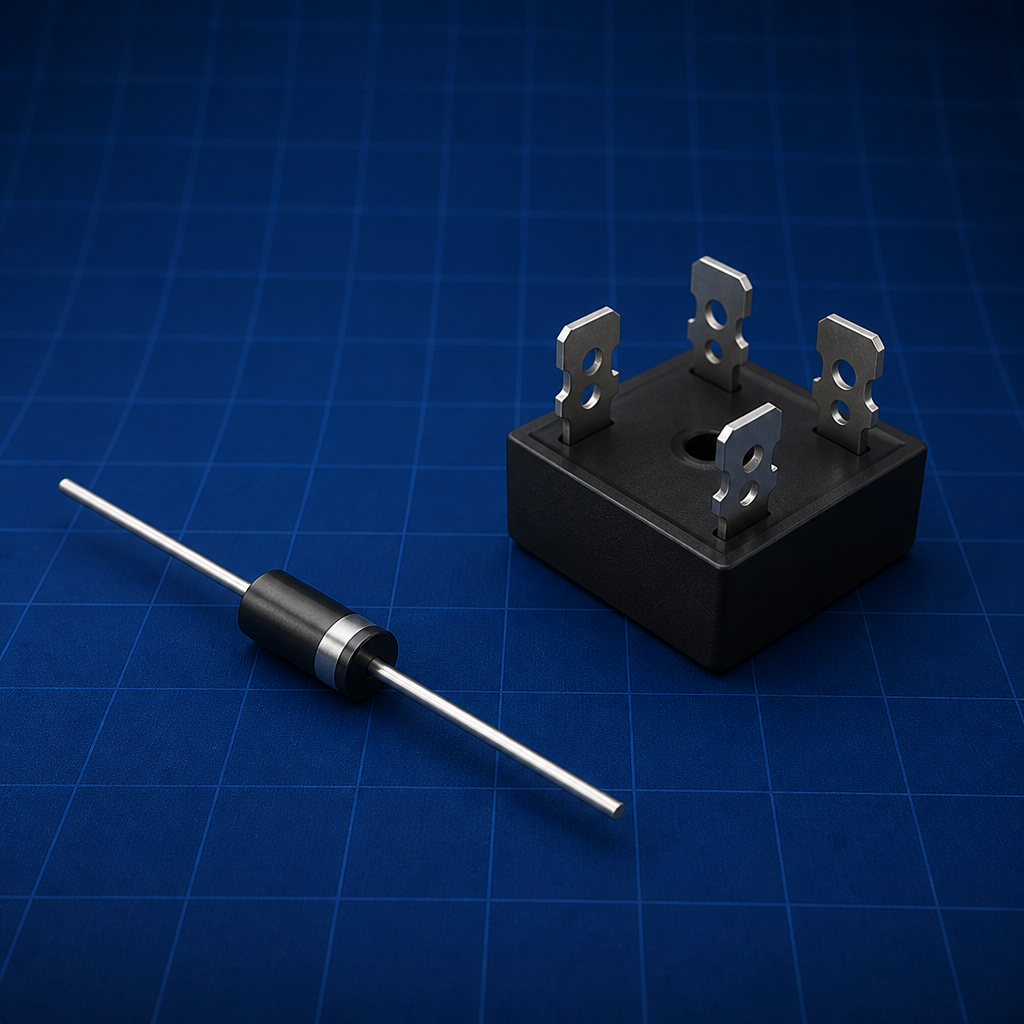

For rectifiers the diode is treated as a switch with a 0.7 V drop (silicon). A half-wave rectifier passes one half-cycle giving V_dc = V_m/π; a full-wave (bridge) rectifier passes both, giving V_dc = 2V_m/π and better ripple.

Scope in B.Tech and GATE syllabus

A filter capacitor smooths the output; the peak-to-peak ripple is approximately I_load/(f×C) for a full-wave supply. The Zener diode, reverse-biased beyond its breakdown, clamps the output voltage for regulation.

Key relations & formulas

Formulas (Indian textbook notation)

  • Shockley:I=Is(e(VnVT)−1);VT≈26mVat300KShockley: I = I_{s}(e^(\frac{V}{nV_{T}}) - 1); V_{T} \approx 26 mV at 300 K

Formulas (Indian textbook notation)

  • Half−wave:Vdc=Vmπ;Full−wave:Vdc=2VmπHalf-wave: V_{dc} = \frac{V_{m}}{\pi}; Full-wave: V_{dc} = \frac{2V_{m}}{\pi}

Formulas (Indian textbook notation)

  • Zenerregulation:loadvariationwithinzenerkneecurrentlimitsZener regulation: load variation within zener knee current limits

Notation and sign conventions

Relation 1 —
Shockley:I=IsShockley: I = I_{s}

Formulas (Indian textbook notation)

  • Shockley:I=Is(e(VnVT)−1);VT≈26mVat300KShockley: I = I_{s}(e^(\frac{V}{nV_{T}}) - 1); V_{T} \approx 26 mV at 300 K
Write this relation with symbols exactly as in Microelectronic Circuits — Sedra & Smith before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
Half−wave:Vdc=Vmπ;Full−wave:Vdc=2VmπHalf-wave: V_{dc} = \frac{V_{m}}{\pi}; Full-wave: V_{dc} = \frac{2V_{m}}{\pi}

Formulas (Indian textbook notation)

  • Half−wave:Vdc=Vmπ;Full−wave:Vdc=2VmπHalf-wave: V_{dc} = \frac{V_{m}}{\pi}; Full-wave: V_{dc} = \frac{2V_{m}}{\pi}
Write this relation with symbols exactly as in Microelectronic Circuits — Sedra & Smith before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
Zenerregulation:loadvariationwithinzenerkneecurrentlimitsZener regulation: load variation within zener knee current limits

Formulas (Indian textbook notation)

  • Zenerregulation:loadvariationwithinzenerkneecurrentlimitsZener regulation: load variation within zener knee current limits
Write this relation with symbols exactly as in Microelectronic Circuits — Sedra & Smith before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

In a Zener regulator, the series resistor R_s drops the difference between the input and the Zener voltage; the Zener absorbs the surplus current so the load sees a constant voltage. Design ensures the Zener current stays above the knee (I_z,min) at maximum load and below its power rating at minimum load.

Governing relations in practice

Clippers limit signal excursions to a set level; clampers shift the DC level using a capacitor and diode. Both are solved by identifying which diodes conduct in each interval.

Design and analysis considerations

The exponential Shockley equation matters for small-signal analysis, where the diode resistance is r_d = nV_T/I; at room temperature V_T ≈ 26 mV.

Assumptions and validity limits

State assumptions explicitly before using any relation for diode circuits — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Analog Electronics viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Analog Electronics papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to diode circuits.
4. Use equation 1:
Shockley:I=IsShockley: I = I_{s}
.
5. Use equation 2:
Half−wave:Vdc=Vmπ;Full−wave:Vdc=2VmπHalf-wave: V_{dc} = \frac{V_{m}}{\pi}; Full-wave: V_{dc} = \frac{2V_{m}}{\pi}
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Diode Circuits appears in signal conditioning and audio. In Indian electrical curricula this topic is tested because it connects theory to amplifiers and op-amp circuits.
GATE and semester exams often combine diode circuits with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use diode circuits?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Using V_m/π for a full-wave rectifier (it is 2V_m/π)
• Forgetting the 0.7 V drop when it matters at low voltages
• Letting the Zener current fall below the knee at heavy load (loses regulation)
• Confusing peak V_m with rms in ripple/output calculations

Quick revision checklist

Before attempting diode circuits problems, confirm you can:
1. Clippers, clampers, rectifiers — piecewise linear analysis
2. Peak detector and envelope detector applications
3. LED, photodiode, varactor special-purpose diodes
Revise the solved examples in Microelectronic Circuits — Sedra & Smith and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Full-wave rectifier DC output

Problem

A full-wave bridge rectifier is fed from a transformer secondary of 24 V rms. Neglecting diode drops, find the peak and average (DC) output voltage.

Solution

Peak V_m = √2 × 24 = 33.9 V.
Average DC (full-wave) = 2V_m/π = 2 × 33.9/π.
= 67.8/3.1416 = 21.6 V.
With two 0.7 V bridge drops, subtract 1.4 V for a more accurate value.

Conceptual check — Diode Circuits

Problem

In a Analog Electronics semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of diode circuits." What should a complete answer include?

Exams & GATE

Sedra & Smith — rectifier with filter capacitor ripple calculation.
