Compression Member Design

Compression member design in IS 800 is a curve-based procedure, not a bare Euler calculation, because real columns have imperfections and residual stresses that lower their strength below the theoretical elastic buckling load.

The steps are: compute the effective length KL from end conditions, find the slenderness ratio KL/r about the governing (weak) axis, classify the section into buckling class a–d, and read the design compressive stress f_cd. The capacity is then P_d = A × f_cd.

Using raw Euler stress f_cr = π²E/λ² directly is unsafe for design and is only the reference against which the code curves are calibrated. Built-up columns additionally require lacing or battens designed for a transverse shear.

(design compressive stress from buckling curves)

(non-dimensional slenderness)

(elastic critical stress)

Relation 1 —

(design compressive stress from buckling curves)

Write this relation with symbols exactly as in Design of Steel Structures — SK Duggal before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 2 —

(non-dimensional slenderness)

Write this relation with symbols exactly as in Design of Steel Structures — SK Duggal before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Relation 3 —

(elastic critical stress)

Write this relation with symbols exactly as in Design of Steel Structures — SK Duggal before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

The non-dimensional slenderness λ = √(f_y/f_cr) compares the material yield stress to the elastic buckling stress; a low λ means a stocky column that yields, a high λ means a slender column that buckles elastically, and intermediate λ is where real behaviour departs most from ideal Euler theory.

IS 800 defines four buckling classes a, b, c and d with successively lower strength curves, assigned by section type, thickness and buckling axis. This accounts for how residual stresses and geometric imperfections differ between, say, a rolled I-section and a welded box.

The design compressive stress f_cd incorporates a reduction factor χ applied to the yield stress, blending the yield and Euler limits through the Perry-Robertson formulation. Multiplying by the gross area gives the design capacity.

Effective length translates the actual end restraints into an equivalent pin-ended length; proper bracing about the weak axis can raise capacity dramatically because the governing slenderness is always the larger of the two axis values.

State assumptions explicitly before using any relation for compression member design — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.

Wrong assumptions invalidate the entire solution even when the formula is correct. In Steel Structures viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

1. Read the question and list given data with SI units (common in Steel Structures papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to compression member design.
4. Use equation 1: .
5. Use equation 2: .
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Compression Member Design appears in industrial sheds and high-rise frames. In Indian civil curricula this topic is tested because it connects theory to design of steel members and connections.

GATE and semester exams often combine compression member design with earlier units — revise prerequisites before attempting mixed problems.

Industry interview panels sometimes ask: "Where did you use compression member design?" — answer with a lab, mini-project, or plant visit example if possible.

• Applying pure Euler stress as the design stress instead of using the code curve.
• Computing slenderness about the strong axis when the weak axis governs.
• Choosing the wrong buckling class for the section and axis.

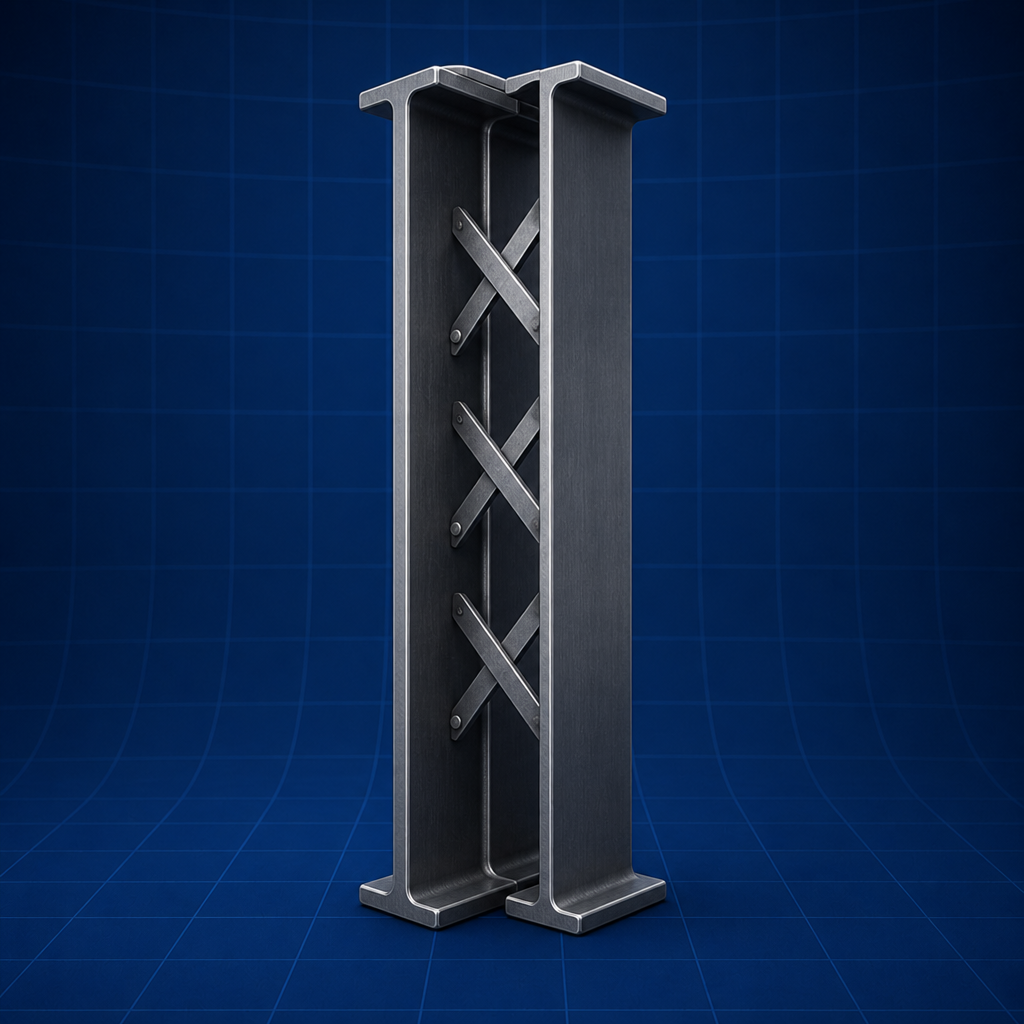

• Ignoring lacing/batten design for built-up compression members.

Before attempting compression member design problems, confirm you can:

1. Buckling class a, b, c, d per IS 800 Table 5 — depends on section type
2. Effective length: K L per end conditions and bracing
3. Built-up sections need lacings or batten plates

Revise the solved examples in Design of Steel Structures — SK Duggal and one previous-year GATE or university paper for this unit.
