Compressible Flow

Compressible-flow relations connect Mach number to temperature, pressure, and area changes in nozzles and high-speed ducts.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

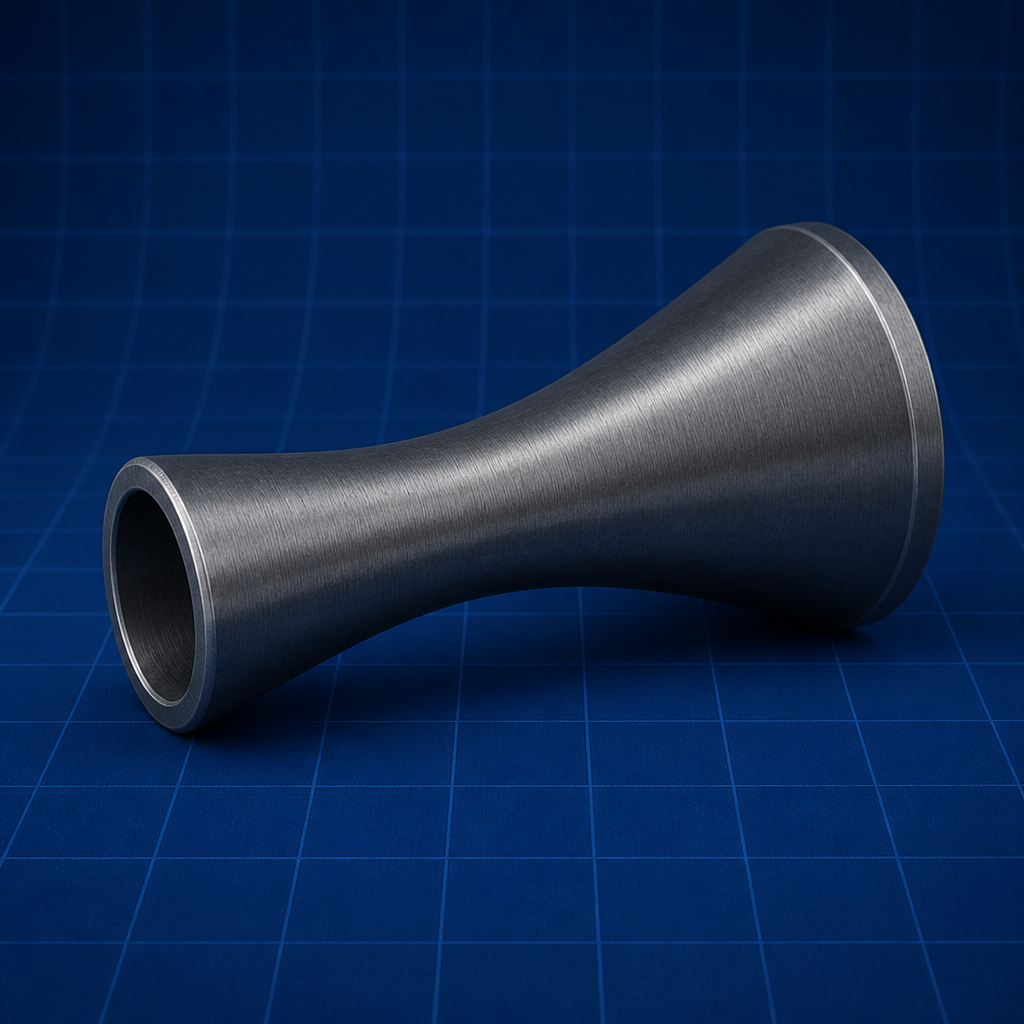

  • M = 1 at throat of converging-diverging nozzle (A = A*)
  • Subsonic: dA/dV > 0; supersonic: dA/dV < 0 for same mass flow
  • Normal shock relations connect upstream and downstream M across shock

Topic details

Introduction

Exam questions typically require isentropic table-style calculations and branch selection of subsonic or supersonic solution from area-Mach equation.

Key relations & formulas

TT0=1+(γ−1)2M2\frac{T}{T_{0}} = 1 + \frac{(\gamma-1)}{2} M^{2}
(isentropic temperature ratio)
PP0=(TT0)(γ(γ−1))\frac{P}{P_{0}} = (\frac{T}{T_{0}})^(\frac{\gamma}{(\gamma-1)})
(isentropic pressure ratio)
AA∗=(1M)[(2(γ+1))(1+(γ−1)2M2)]((γ+1)/(2(γ−1)))\frac{A}{A}* = (\frac{1}{M})[(\frac{2}{(\gamma+1)})(1 + \frac{(\gamma-1)}{2} M^{2})]^((\gamma+1)/(2(\gamma-1)))
(area-Mach relation)

Notation and sign conventions

Relation 1 —
TT0=1+\frac{T}{T_{0}} = 1 +
TT0=1+(γ−1)2M2\frac{T}{T_{0}} = 1 + \frac{(\gamma-1)}{2} M^{2}
(isentropic temperature ratio)
Write this relation with symbols exactly as in Anderson Aerodynamics — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
PP0=\frac{P}{P_{0}} =
PP0=(TT0)(γ(γ−1))\frac{P}{P_{0}} = (\frac{T}{T_{0}})^(\frac{\gamma}{(\gamma-1)})
(isentropic pressure ratio)
Write this relation with symbols exactly as in Anderson Aerodynamics — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
AA∗=\frac{A}{A}* =
AA∗=(1M)[(2(γ+1))(1+(γ−1)2M2)]((γ+1)/(2(γ−1)))\frac{A}{A}* = (\frac{1}{M})[(\frac{2}{(\gamma+1)})(1 + \frac{(\gamma-1)}{2} M^{2})]^((\gamma+1)/(2(\gamma-1)))
(area-Mach relation)
Write this relation with symbols exactly as in Anderson Aerodynamics — Standard reference before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Concept in depth

Total properties remain constant for adiabatic reversible flow, while static properties vary with Mach number. Choking at M=1 sets maximum mass flow in a converging passage and governs nozzle design.

Assumptions and validity limits

State assumptions explicitly before using any relation for compressible flow — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Aerodynamics viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Aerodynamics papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to compressible flow.
4. Use equation 1:
TT0=1+\frac{T}{T_{0}} = 1 +
.
5. Use equation 2:
PP0=\frac{P}{P_{0}} =
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Compressible Flow appears in aircraft and UAV design. In Indian aerospace curricula this topic is tested because it connects theory to flow over bodies and airfoils.
GATE and semester exams often combine compressible flow with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use compressible flow?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

Many students invert T/T0 relation and forget that one A/A* value can map to two Mach numbers; branch choice must follow flow physics.

Quick revision checklist

Before attempting compressible flow problems, confirm you can:
1. M = 1 at throat of converging-diverging nozzle (A = A*)
2. Subsonic: dA/dV > 0; supersonic: dA/dV < 0 for same mass flow
3. Normal shock relations connect upstream and downstream M across shock
Revise the solved examples in Anderson Aerodynamics — Standard reference and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Computing static temperature from Mach

Problem

Air at T0 = 300 K flows at Mach 2 with gamma = 1.4. Find static temperature T.

Solution

T0/T = 1 + 0.2M^2 = 1 + 0.8 = 1.8. Hence T = 300/1.8 = 166.7 K.

Conceptual check — Compressible Flow

Problem

In a Aerodynamics semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of compressible flow." What should a complete answer include?

Exams & GATE

Anderson Ch. 3–4 — use γ = 1.4 for air; know table vs calculator.
