Centroid and Moment of Inertia

The centroid locates the area's geometric centre, x̄ = Σ(A·x̄ᵢ)/ΣA; the second moment of area I = ∫y²dA measures resistance to bending. The parallel-axis theorem I = Ī + A·d² shifts it to any axis, as in RK Bansal.
Exam tip: draw a complete FBD first; resolve forces along chosen axes and check moment equilibrium about a convenient point.

Key formulas & points

Skim these first — then read the full notes below.

  • Centroid of composite areas: sum of (A·x̄) / ΣA
  • ProductofinertiaIxy=∫xydAProduct of inertia I_{xy} = \int xy dA — zero for symmetric sections
  • Radiusofgyrationk=IARadius of gyration k = \sqrt{\frac{I}{A}}

Topic details

Introduction

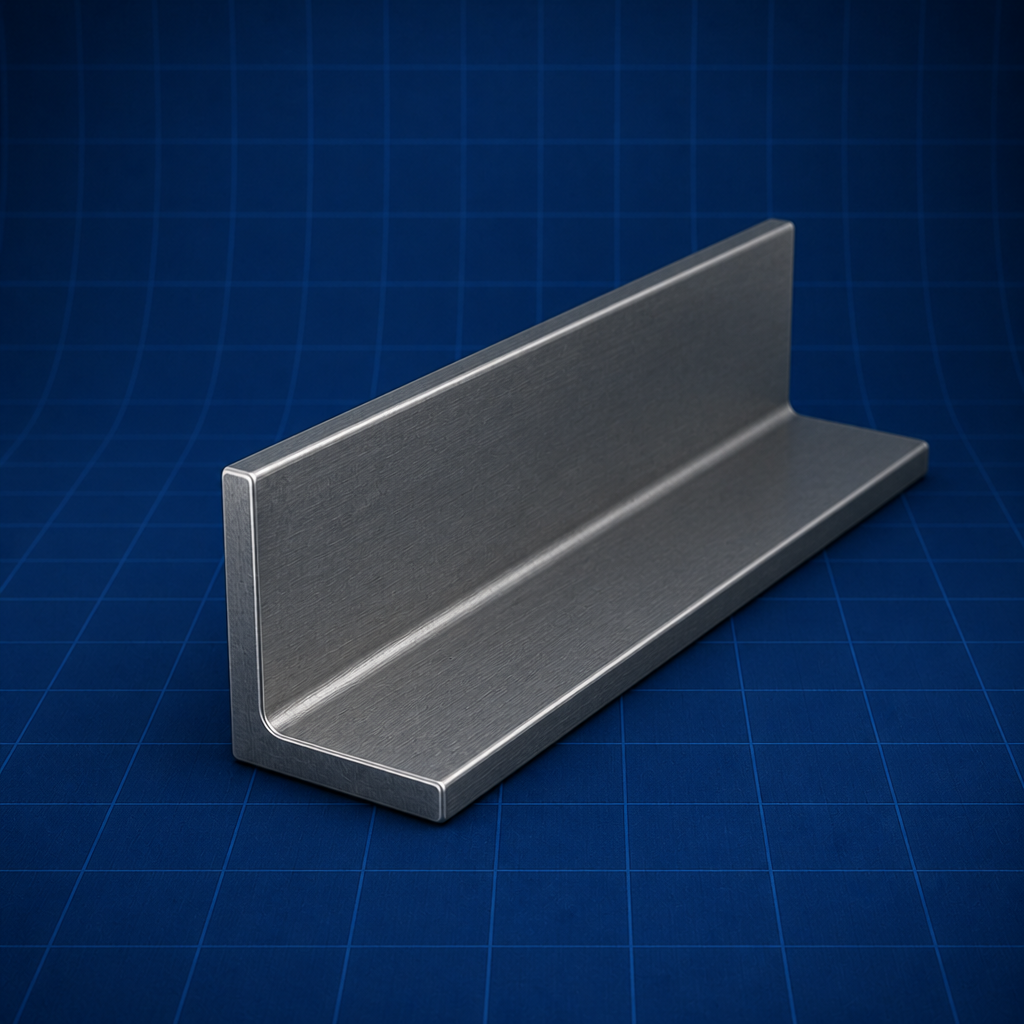

Centroids and area moments of inertia are computational prerequisites for bending, buckling, and torsion. Indian mechanics papers ask for the centroid and I of composite sections — I, T, channel, and L shapes built from rectangles.

Scope in B.Tech and GATE syllabus

RK Bansal's composite method divides the shape into standard parts, finds each part's area and centroidal distance, and combines them: the centroid by the first-moment ratio, and the total I by summing each part's own Ī plus its transfer term A·d².

Why this topic matters in practice

The parallel-axis theorem is central: I about any axis equals I about the parallel centroidal axis plus A·d². Students must first find the composite centroid, because the transfer distances d are measured from it. Radius of gyration k = √(I/A) then feeds column-buckling calculations.

Key relations & formulas

xˉ=∫xdA∫dAx̄ = \int x \frac{dA}{\int} dA
(centroid x-coordinate)
I=∫y2dAI = \int y^{2} dA
(second moment of area about x-axis)
I=Iˉ+A⋅d2I = Ī + A\cdot d^{2}
(parallel axis theorem)
J=Ix+IyJ = I_{x} + I_{y}
(polar moment for circular sections)

Notation and sign conventions

Relation 1 —
xˉ=∫xdA∫dAx̄ = \int x \frac{dA}{\int} dA
xˉ=∫xdA∫dAx̄ = \int x \frac{dA}{\int} dA
(centroid x-coordinate)
Write this relation with symbols exactly as in Strength of Materials — RK Bansal before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
I=∫y2dAI = \int y^{2} dA
I=∫y2dAI = \int y^{2} dA
(second moment of area about x-axis)
Write this relation with symbols exactly as in Strength of Materials — RK Bansal before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
I=Iˉ+A⋅d2I = Ī + A\cdot d^{2}
I=Iˉ+A⋅d2I = Ī + A\cdot d^{2}
(parallel axis theorem)
Write this relation with symbols exactly as in Strength of Materials — RK Bansal before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 4 —
J=Ix+IyJ = I_{x} + I_{y}
J=Ix+IyJ = I_{x} + I_{y}
(polar moment for circular sections)
Write this relation with symbols exactly as in Strength of Materials — RK Bansal before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

The centroid is the first-moment average of area: x̄ = ∫x dA/∫dA. For composite areas this becomes x̄ = Σ(Aᵢx̄ᵢ)/ΣAᵢ, treating holes as negative areas.

Governing relations in practice

The second moment of area (area moment of inertia) I = ∫y² dA quantifies how area is distributed about an axis; more area far from the axis gives larger I and greater bending stiffness. For a rectangle about its base I = bh³/3 and about its centroid I = bh³/12.

Design and analysis considerations

The parallel-axis theorem I = Ī + A·d² lets each part's centroidal inertia be transferred to the common composite centroidal axis; d is the distance between the two parallel axes. This is why the composite centroid must be located first.

Advanced theory and extensions

The polar moment J = I_x + I_y governs torsion of circular sections, and the radius of gyration k = √(I/A) expresses the section's effective spread of area, used directly in Euler's column formula. Product of inertia I_xy vanishes for sections with an axis of symmetry.

Assumptions and validity limits

State assumptions explicitly before using any relation for centroid and moment of inertia — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Engineering Mechanics viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Engineering Mechanics papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to centroid and moment of inertia.
4. Use equation 1:
xˉ=∫xdA∫dAx̄ = \int x \frac{dA}{\int} dA
.
5. Use equation 2:
I=∫y2dAI = \int y^{2} dA
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Centroid and Moment of Inertia appears in trusses, frames, and friction problems. In Indian mechanical curricula this topic is tested because it connects theory to force equilibrium and motion of rigid bodies.
GATE and semester exams often combine centroid and moment of inertia with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use centroid and moment of inertia?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Applying the parallel-axis theorem from the wrong (non-centroidal) reference axis
• Forgetting to locate the composite centroid before computing transfer distances d
• Using I = bh³/3 (about base) where I = bh³/12 (about centroid) is needed
• Treating a cut-out hole as positive area instead of subtracting it

Quick revision checklist

Before attempting centroid and moment of inertia problems, confirm you can:
1. Centroid of composite areas: sum of (A·x̄) / ΣA
2.
ProductofinertiaIxy=∫xydAProduct of inertia I_{xy} = \int xy dA
— zero for symmetric sections
3.
Radiusofgyrationk=IARadius of gyration k = \sqrt{\frac{I}{A}}
Revise the solved examples in Strength of Materials — RK Bansal and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

Moment of inertia of a rectangle

Problem

Find the moment of inertia of a rectangle b = 30 mm wide and h = 60 mm deep about its centroidal horizontal axis.

Solution

I = bh³/12 = 30 × 60³/12 = 30 × 216000/12 = 540000 mm⁴ = 5.4 × 10⁵ mm⁴.

Conceptual check — Centroid and Moment of Inertia

Problem

In a Engineering Mechanics semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of centroid and moment of inertia." What should a complete answer include?

Practice questions

Most-asked interview and GATE questions for this topic — expand any item for a model answer.

  1. 1
    What is Centroid and Moment of Inertia, and why does it appear in B.Tech / GATE syllabi?

    Model answer

    The centroid locates the area's geometric centre, x̄ = Σ(A·x̄ᵢ)/ΣA; the second moment of area I = ∫y²dA measures resistance to bending. The parallel-axis theorem I = Ī + A·d² shifts it to any axis, as in RK Bansal.
  2. 2
    State the relation x̄ = ∫x dA / ∫dA and name each symbol.

    Model answer

    The governing relation is xˉ=∫xdA∫dAx̄ = \int x \frac{dA}{\int} dA. Write every symbol with SI units before substituting numbers.
  3. 3
    State the relation I = ∫y² dA and name each symbol.

    Model answer

    The governing relation is I=∫y2dAI = \int y^{2} dA. Write every symbol with SI units before substituting numbers.
  4. 4
    State the relation I = Ī + A·d² and name each symbol.

    Model answer

    The governing relation is I=Iˉ+A⋅d2I = Ī + A\cdot d^{2}. Write every symbol with SI units before substituting numbers.
  5. 5
    State the relation J = I_x + I_y and name each symbol.

    Model answer

    The governing relation is J=Ix+IyJ = I_{x} + I_{y}. Write every symbol with SI units before substituting numbers.
  6. 6
    Explain: Centroid of composite areas: sum of (A·x̄) / ΣA

    Model answer

    Centroid of composite areas: sum of (A·x̄) / ΣA — state the assumption range and one exam trap linked to this point.
  7. 7
    Explain: Product of inertia I_xy = ∫xy dA — zero for symmetric sections

    Model answer

    ProductofinertiaIxy=∫xydAProduct of inertia I_{xy} = \int xy dA — zero for symmetric sections — state the assumption range and one exam trap linked to this point.
  8. 8
    Explain: Radius of gyration k = √(I/A)

    Model answer

    Radiusofgyrationk=IARadius of gyration k = \sqrt{\frac{I}{A}} — state the assumption range and one exam trap linked to this point.
  9. 9
    How would you correct this error in a viva: Applying the parallel-axis theorem from the wrong (non-centroidal) reference axis?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  10. 10
    How would you correct this error in a viva: Forgetting to locate the composite centroid before computing transfer distances d?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  11. 11
    How would you correct this error in a viva: Using I = bh³/3 (about base) where I = bh³/12 (about centroid) is needed?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.
  12. 12
    How would you correct this error in a viva: Treating a cut-out hole as positive area instead of subtracting it?

    Model answer

    Identify the wrong assumption or unit mix-up, rewrite the correct relation, and recompute with a one-line sanity check.

Exams & GATE

  • 1
    Standard sections (I, T, channel) — memorise I values or derive quickly.
  • 2
    Avoid: Applying the parallel-axis theorem from the wrong (non-centroidal) reference axis
  • 3
    Avoid: Forgetting to locate the composite centroid before computing transfer distances d
  • 4
    Avoid: Using I = bh³/3 (about base) where I = bh³/12 (about centroid) is needed
