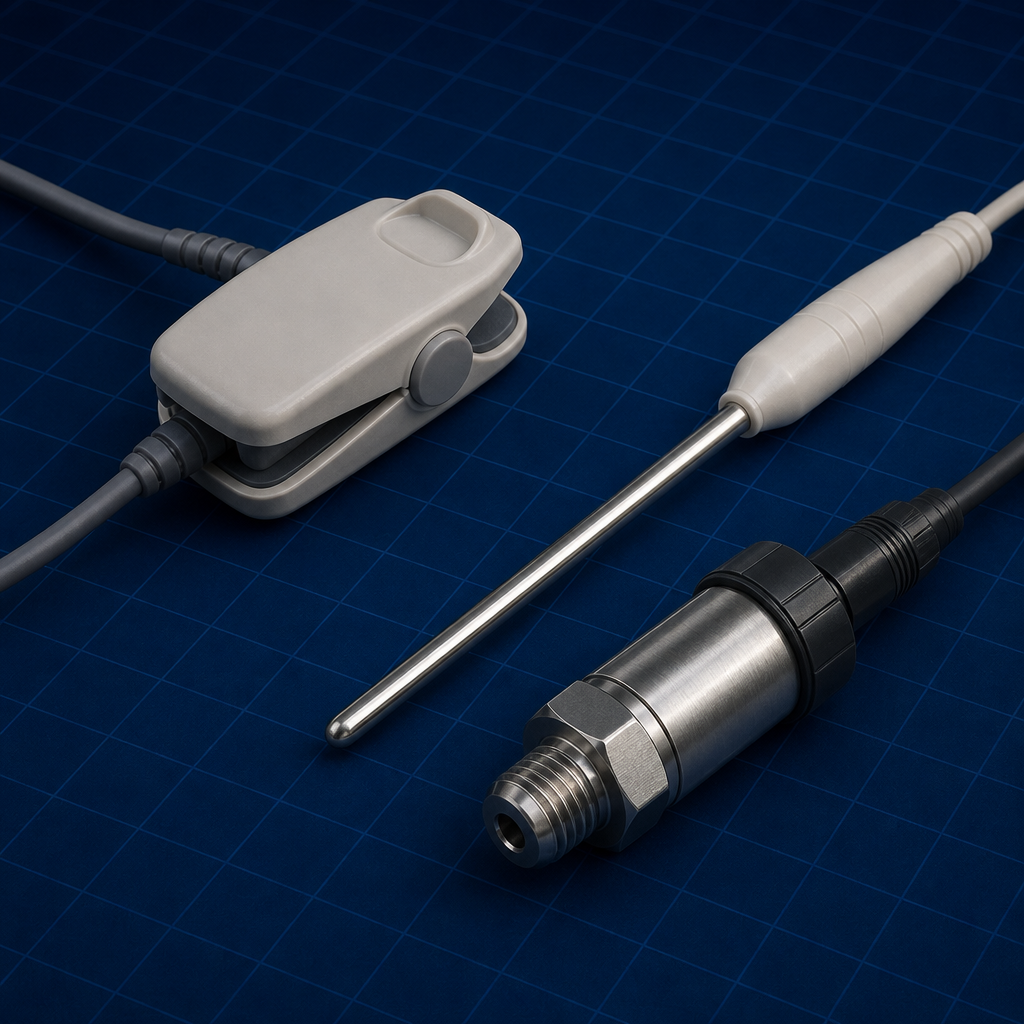

Biomedical Sensors

Biomedical sensors convert physical or chemical phenomena into electrical outputs suitable for clinical interpretation. This chapter emphasizes transduction principle, calibration quality, and long-term stability.
Exam tip: keep SI units consistent end-to-end, write the governing relation symbolically before substituting, and sanity-check magnitude and sign.

Key formulas & points

Skim these first — then read the full notes below.

  • Pressure, flow, temperature, chemical biosensors
  • Calibration curve maps sensor output to quantity
  • Drift and hysteresis affect long-term accuracy

Topic details

Introduction

Sensor modules are the primary data source in medical devices, so their linearity, sensitivity, and drift characteristics directly shape diagnostic reliability. Indian B.Tech exams often ask one transducer derivation plus one calibration or error-analysis explanation.

Scope in B.Tech and GATE syllabus

Webster and Bronzino cover common biomedical transducers and their interface circuits. Students should highlight not only the transfer equation but also compensation methods used in practical systems.

Key relations & formulas

straingauge:ΔRR=G×εstrain gauge: \frac{\Delta R}{R} = G\times \varepsilon
(gauge factor G)

Formulas (Indian textbook notation)

  • thermistor:R(T)exponentialNTCPTCthermistor: R(T) exponential \frac{NTC}{PTC}

Formulas (Indian textbook notation)

  • pHelectrode:E=E0−(2.303RTF)pHpH electrode: E = E_{0} - (2.\frac{303RT}{F})pH

Notation and sign conventions

Relation 1 —
straingauge:ΔRR=G×εstrain gauge: \frac{\Delta R}{R} = G\times \varepsilon
straingauge:ΔRR=G×εstrain gauge: \frac{\Delta R}{R} = G\times \varepsilon
(gauge factor G)
Write this relation with symbols exactly as in Handbook of Biomedical Instrumentation — RS Khandpur before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 2 —
thermistor:Rthermistor: R

Formulas (Indian textbook notation)

  • thermistor:R(T)exponentialNTCPTCthermistor: R(T) exponential \frac{NTC}{PTC}
Write this relation with symbols exactly as in Handbook of Biomedical Instrumentation — RS Khandpur before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.
Relation 3 —
pHelectrode:E=E0−pH electrode: E = E_{0} -

Formulas (Indian textbook notation)

  • pHelectrode:E=E0−(2.303RTF)pHpH electrode: E = E_{0} - (2.\frac{303RT}{F})pH
Write this relation with symbols exactly as in Handbook of Biomedical Instrumentation — RS Khandpur before substituting numbers. Examiners award partial marks for a correct setup even when arithmetic slips.

Fundamentals and definitions

Strain-gauge sensors measure deformation-induced resistance change and are widely used in pressure transducers and force platforms. Gauge factor links strain to normalized resistance variation, but bridge configuration and temperature compensation determine practical accuracy.

Governing relations in practice

Thermistors provide high sensitivity for temperature measurement, especially in physiological ranges. Their nonlinear response demands calibration or linearization in analog/digital processing stages. Self-heating and thermal lag should be discussed when accuracy requirements are tight.

Design and analysis considerations

Electrochemical pH electrodes follow Nernst-like potential dependence on hydrogen ion activity. Reference electrode stability and membrane condition strongly affect repeatability. Proper maintenance and calibration with buffer standards are therefore central in laboratory and bedside analyzers.

Advanced theory and extensions

Across sensor types, hysteresis and drift are major lifecycle concerns. Good answers explain periodic recalibration, environmental compensation, and redundancy strategies used in regulated medical devices.

Assumptions and validity limits

State assumptions explicitly before using any relation for biomedical sensors — steady state, uniform properties, linear elastic material, ideal gas, incompressible flow, etc., as applicable.
Wrong assumptions invalidate the entire solution even when the formula is correct. In Medical Instrumentation viva and GATE descriptive questions, listing valid assumptions often earns separate marks.

Step-by-step problem approach

1. Read the question and list given data with SI units (common in Medical Instrumentation papers).
2. Draw a neat labelled diagram where applicable — examiners in Indian universities award diagram marks even when arithmetic slips.
3. Identify which relation from this topic applies to biomedical sensors.
4. Use equation 1:
straingauge:ΔRR=G×εstrain gauge: \frac{\Delta R}{R} = G\times \varepsilon
.
5. Use equation 2:
thermistor:Rthermistor: R
.
6. Substitute values, compute, and verify units and sign (direction).
7. State conclusion in one line — e.g. safe/unsafe, stable/unstable, feasible/infeasible.

Applications & exam relevance

Biomedical Sensors appears in hospitals and device firms. In Indian biomedical curricula this topic is tested because it connects theory to clinical measurement systems.
GATE and semester exams often combine biomedical sensors with earlier units — revise prerequisites before attempting mixed problems.
Industry interview panels sometimes ask: "Where did you use biomedical sensors?" — answer with a lab, mini-project, or plant visit example if possible.

Common mistakes in exams

• Substituting strain equation values without converting microstrain units.
• Treating thermistor response as linear over full clinical range.
• Ignoring reference electrode stability in pH measurement errors.
• Reporting calibration slope without uncertainty or repeatability context.

Quick revision checklist

Before attempting biomedical sensors problems, confirm you can:
1. Pressure, flow, temperature, chemical biosensors
2. Calibration curve maps sensor output to quantity
3. Drift and hysteresis affect long-term accuracy
Revise the solved examples in Handbook of Biomedical Instrumentation — RS Khandpur and one previous-year GATE or university paper for this unit.

Worked examples

Try the problem first — open the solution when you are ready to check.

For a strain gauge with G = 2

Problem

For a strain gauge with G = 2.1 and measured ΔR/R = 0.00105, strain is ε = (ΔR/R)/G = 0.0005 = 500 microstrain. This mag...

Solution

For a strain gauge with G = 2.1 and measured ΔR/R = 0.00105, strain is ε = (ΔR/R)/G = 0.0005 = 500 microstrain. This magnitude is typical for moderate physiological force transduction setups.

Conceptual check — Biomedical Sensors

Problem

In a Medical Instrumentation semester or GATE paper you are asked: "State the main assumption, the governing relation, and one practical consequence of biomedical sensors." What should a complete answer include?
